ROOF HEADLINING & SILENCER PAD

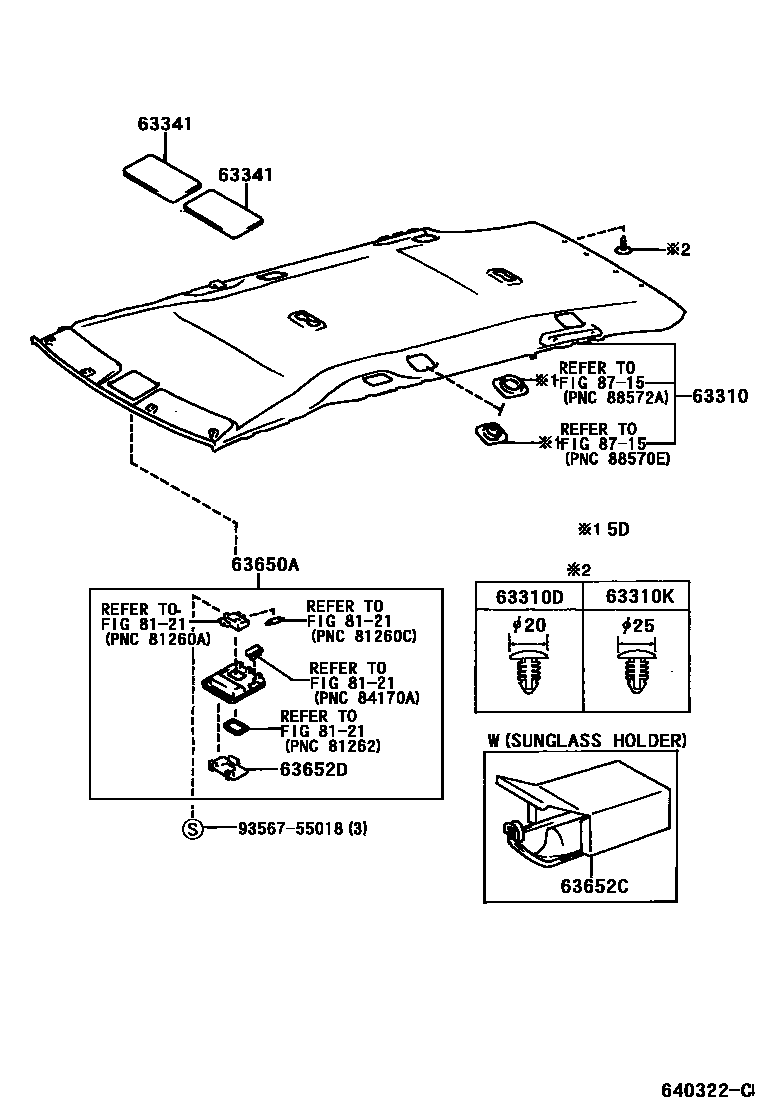

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-08010-A0i199708-200008
IVORY,TRIM4#
main63310-08010-B0i199708-200008
LT. BLUISH GRAY,TRIM1#
main63310-08040-A0i199708-200008
IVORY,TRIM4#
main63310-08040-B0i199708-200008
LT. BLUISH GRAY,TRIM1#
main63310-08050-A0i199708-200008
W(MOON ROOF),IVORY,TRIM4#
main63310-08050-B0i199708-200008
W(MOON ROOF),LT. BLUISH GRAY,TRIM1#
main63310-08080-A0i200008
IVORY,TRIM4#
main63310-08080-B0i200008
LT. BLUISH GRAY,TRIM1#
main63310-08100-A0i200008
W(MOON ROOF),IVORY,TRIM4#
main63310-08100-B0i200008
W(MOON ROOF),LT. BLUISH GRAY,TRIM1#
63310DCLIP, ROOF HEADLINING
main90467-07042-C0×2i199708-200008
BLACK,TRIM4#
63310KCLIP
main90467-07176-A0×4i199708
IVORY,TRIM4#
main90467-07176-B0×4i199708
LT.BLUISH GRAY,TRIM1#
63341PAD, ROOF SILENCER, NO.1
main63341-AA010×2i199708
63650ABOX ASSY, ROOF CONSOLE
main63650-08030-A0i200008
W(GARAGE DOOR OPENER),IVORY,TRIM4#
main63650-08030-B0i200008
W(GARAGE DOOR OPENER),LT. BLUISH GRAY,TRIM1#
main63650-08040-A0i200008
W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM4#
main63650-08040-B0i200008
W(GARAGE DOOR OPENER & MOON ROOF),LT. BLUISH GRAY,TRIM1#
main63650-AE010-A0i199708-199804
IVORY,TRIM4#
main63650-AE010-B0i199708-199804
LT.BLUISH GRAY,TRIM1#
main63650-AE011-A0i199804
IVORY,TRIM4#
main63650-AE011-B0i199804
LT.BLUISH GRAY,TRIM1#
main63650-AE020-A0i199708-199804
IVORY,TRIM4#
main63650-AE020-B0i199708-199804
LT.BLUISH GRAY,TRIM1#
main63650-AE021-A0i199804
IVORY,TRIM4#
main63650-AE021-B0i199804
LT.BLUISH GRAY,TRIM1#
main63650-AE030-A0i199708-199804
W(MOON ROOF),IVORY,TRIM4#
main63650-AE030-B0i199708-199804
W(MOON ROOF),LT.BLUISH GRAY,TRIM1#
main63650-AE031-A0i199804-200008
W(MOON ROOF),IVORY,TRIM4#
main63650-AE031-B0i199804-200008
W(MOON ROOF),LT.BLUISH GRAY,TRIM1#
63652CCOVER, ROOF CONSOLE BOX
main63652-06010-A1i200008
W(GARAGE DOOR OPENER),IVORY,TRIM4#
main63652-06010-B1i200008
W(GARAGE DOOR OPENER),LT. BLUISH GRAY,TRIM1#
main63652-AA030-A0i199708-199803
IVORY,TRIM4#
main63652-AA030-B2i199708-199803
LT.BLUISH GRAY,TRIM1#
main63652-AA031-A0i199803
W(SUNGLASS HOLDER),IVORY,TRIM4#
main63652-AA031-B2i199803
W(SUNGLASS HOLDER),LT.BLUISH GRAY,TRIM1#
63652DCOVER, ROOF CONSOLE BOX
main63652-AA010-A0i199708-199803
IVORY,TRIM4#
main63652-AA010-B2i199708-199803
LT.BLUISH GRAY,TRIM1#
main63652-AA011-A0i199803
IVORY,TRIM4#
main63652-AA011-B2i199803
LT.BLUISH GRAY,TRIM1#
8121INTERIOR LAMP
→ Go to FIG 81-21
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9356755018
main93567-55018

10 parts on this diagram · 4 diagrams in section
