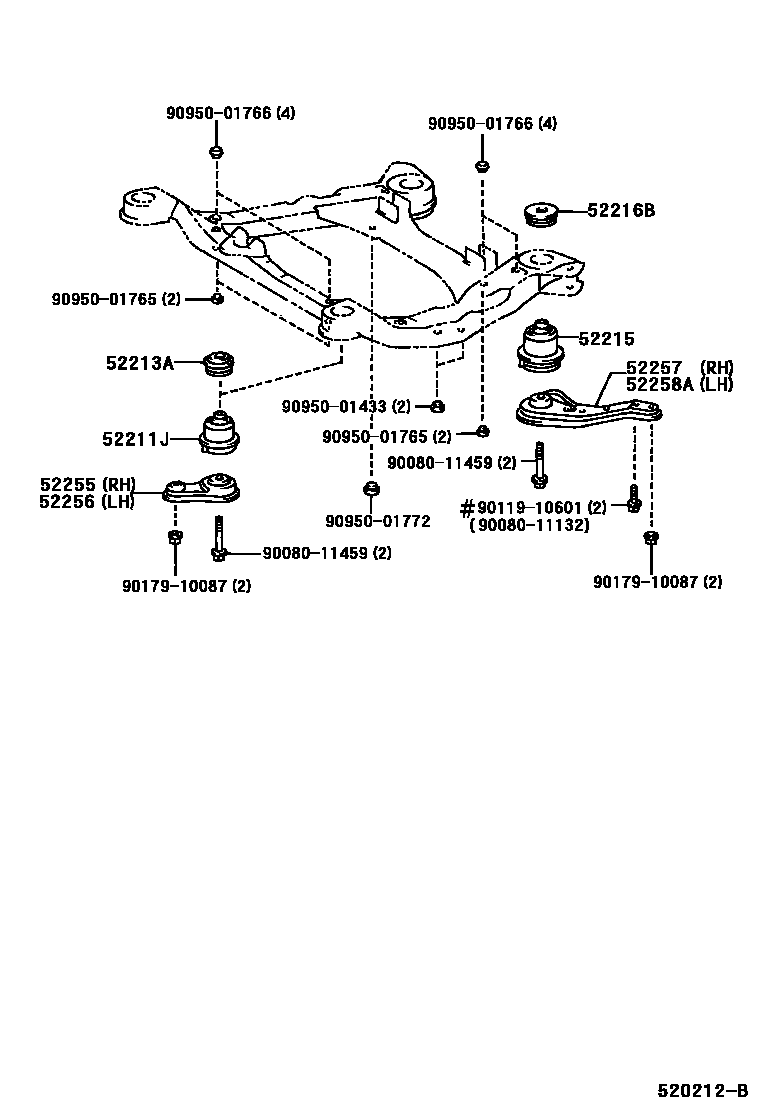

CAB MOUNTING & BODY MOUNTING

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33030×2iMCL10199708

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06010×2iMCL10199708

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33030×2iMCL10199708

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06010×2iMCL10199708

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-08010iMCL10199708

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-08010iMCL10199708

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-08010iMCL10199708

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-08010iMCL10199708

9008011132

main90080-11132

9008011459

main90080-11459

9011910601

main90119-10601

9017910087

main90179-10087

9095001433

main90950-01433

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

16 parts on this diagram · 1 diagram in section
