FRONT AXLE ARM & STEERING KNUCKLE

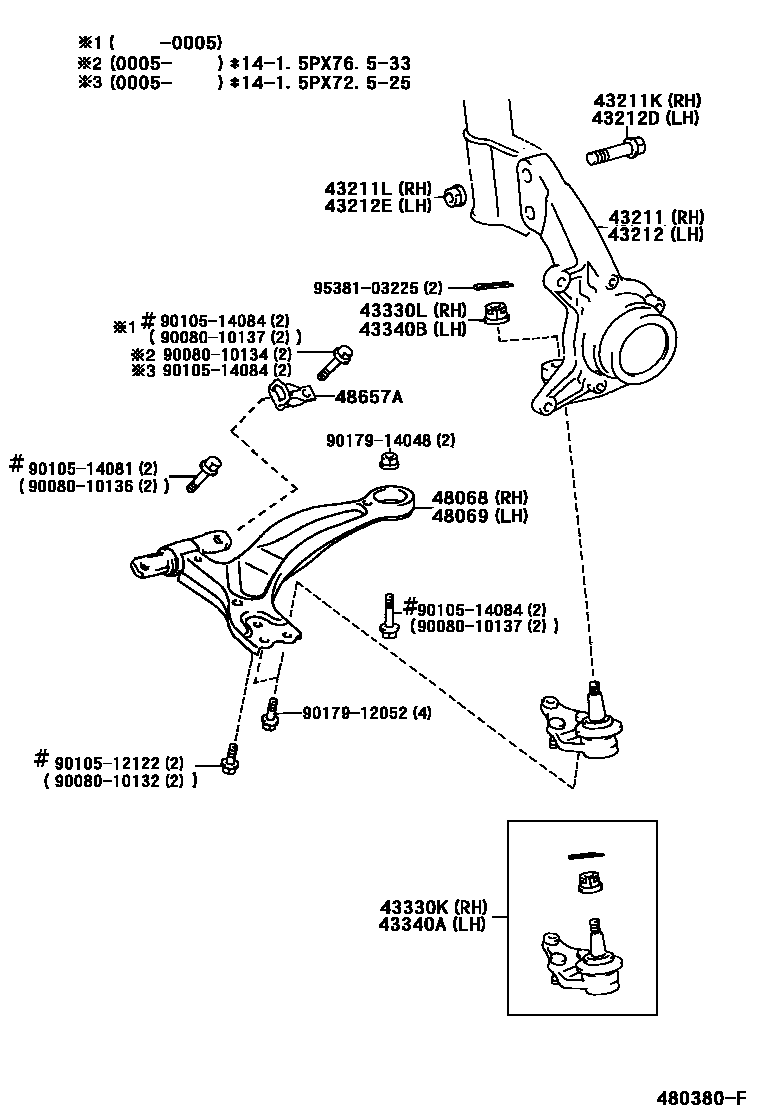

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-06070i199708-200301
(L)
main43211-33060i199708-200301
(J)
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-17001×2i199708-200107
OD=17
main90105-17003i199708-200107
OD=15.9
main90105-17004i199708-200107
OD=15
main90105-17005i199708-200107
OD=14
main90105-17008×2i200107
OD=17
main90105-17009i200107
OD=15.9
main90105-17010i200107
OD=15
main90105-17011i200107
OD=14
43211LNUT (FOR STEERING KNUCKLE RH)
main90178-17001×2i200107
main90179-17001×2i199708-200107
43212KNUCKLE, STEERING, LH
main43212-06070i199708
(L)
main43212-33060i199708
(J)
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-17001×2i199708-200107
OD=17
main90105-17003i199708-200107
OD=15.9
main90105-17004i199708-200107
OD=15
main90105-17005i199708-200107
OD=14
main90105-17008×2i200107
OD=17
main90105-17009i200107
OD=15.9
main90105-17010i200107
OD=15
main90105-17011i200107
OD=14
43212ENUT (FOR STEERING KNUCKLE LH)
main90178-17001×2i200107
main90179-17001×2i199708-200107
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-09050i199708-200008
main43330-09051i200008
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-14003i199708
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43330-09050i199708-200008
main43330-09051i200008
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-14003i199708
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-08010i199708
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-08010i199708
48657ASTOPPER, FRONT LOWER ARM BUSH
main48657-33020×2i199708
9008010132
main90080-10132
9008010134
main90080-10134
9008010136
main90080-10136
9008010137
main90080-10137
9010512122
main90105-12122
9010514081
main90105-14081
9010514084
main90105-14084
9017912052
main90179-12052
9017914048
main90179-14048
9538103225
main95381-03225

23 parts on this diagram · 1 diagram in section
