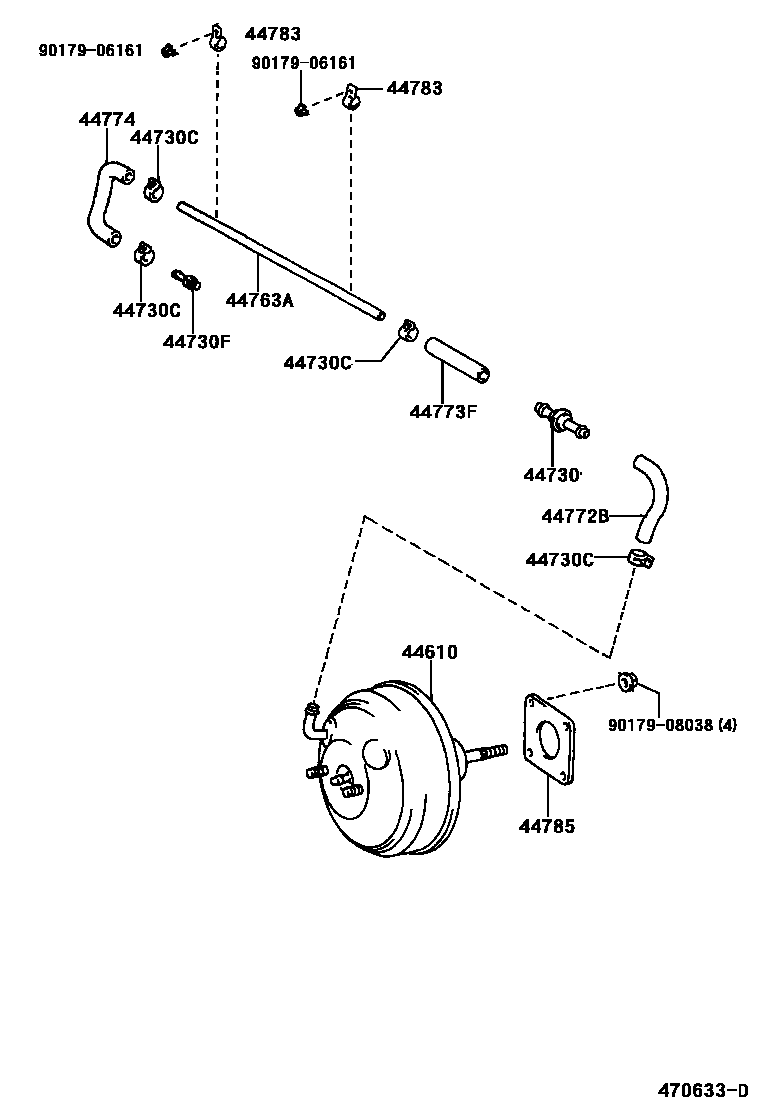

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-08010iMCL10199708-200107

main44610-08020iMCL10200008-200207

W(VSC)

main44610-08030iMCL10200107-200207

main44610-08040iMCL10200207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCL10199708

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iMCL10199708

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCL10199708

44763ATUBE, HOSE TO HOSE, NO.1

main44763-08010iMCL10199708

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-08010iMCL10199708

44773FHOSE, UNION TO CHECK VALVE

main44773-08010iMCL10199708

44774HOSE, UNION TO CONNECTOR TUBE

main44774-08010iMCL10199708

44783CLAMP, VACUUM HOSE

main44783-08010×2iMCL10199708

44785GASKET, BRAKE BOOSTER

main44785-32010iMCL10200008

NO.1

main44785-45011iMCL10199708-200008

9017906161

main90179-06161

9017908038

main90179-08038

12 parts on this diagram · 2 diagrams in section
