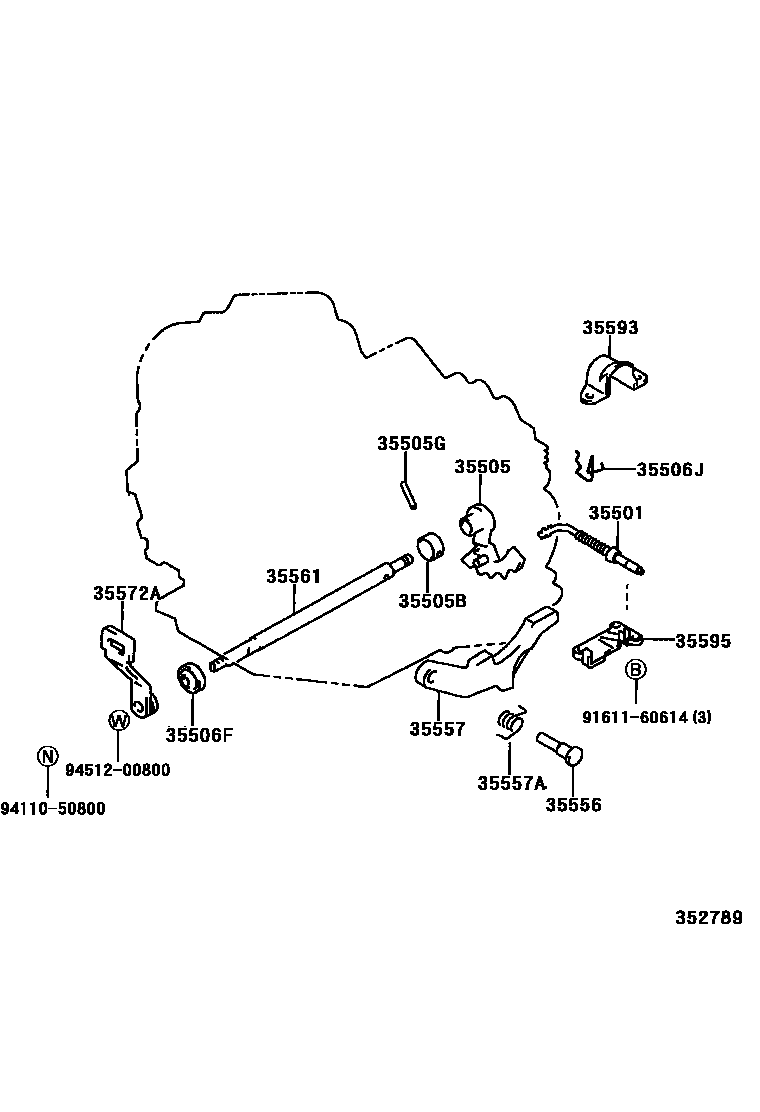

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A540E,A541E 0002 1A540E,A541E

35501ROD SUB-ASSY, PARKING LOCK

main35501-32040iMCL10199708-200008

main35501-33010iMCL10200008

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-32030iMCL10199708

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iMCL10199708

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iMCL10199708

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMCL10199708

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iMCL10199708

35556SHAFT, PARKING LOCK PAWL

main35556-32020iMCL10199708

35557PAWL, PARKING LOCK

main35557-32031iMCL10199708-200008

main35557-33010iMCL10200008

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03043iMCL10199708

35561SHAFT, MANUAL VALVE LEVER

main35561-32010iMCL10199708-200008

main35561-33010iMCL10200008

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33010iMCL10200008

main35572-44010iMCL10199708-200008

35593SLEEVE, CAM GUIDE

main35593-33010iMCL10200008

35595BRACKET, PARKING LOCK PAWL

main35595-32020iMCL10199708-200008

main35595-33010iMCL10200008

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
