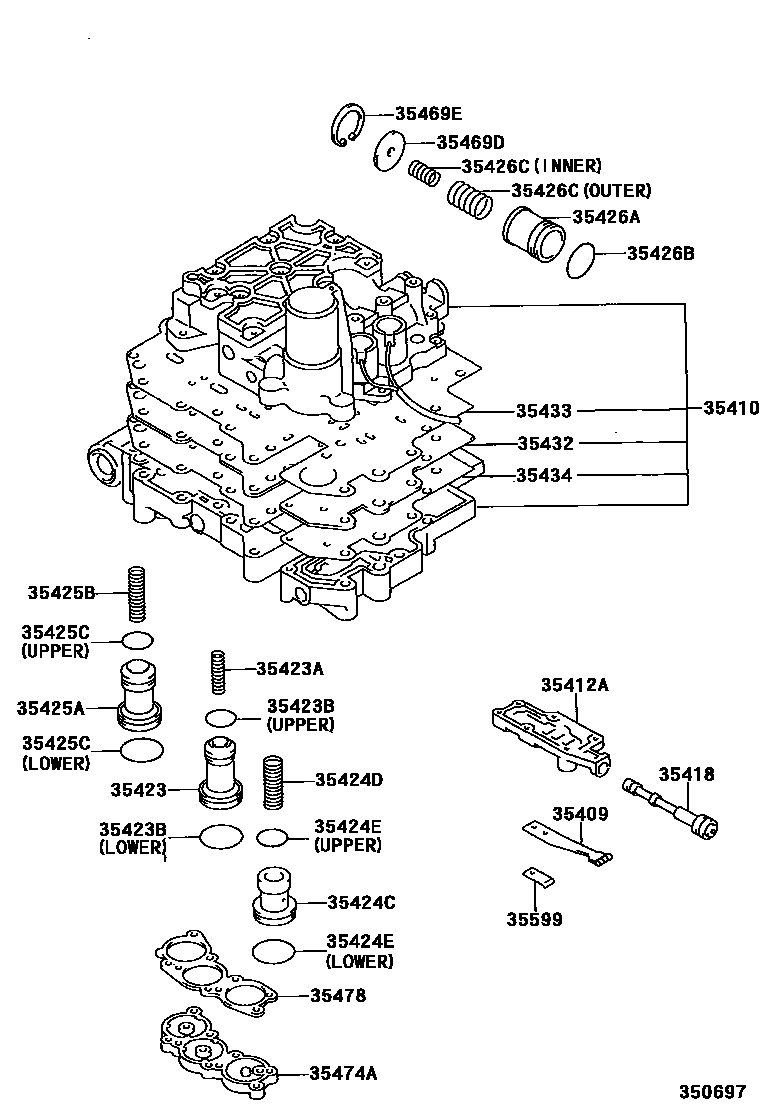

VALVE BODY & OIL STRAINER (ATM)

0001 1A540E 0002 1A540E 0003 1A540E 0004 1A540E 0005 1A540E 0006 1A541E 0007 1A541E 0008 1A541E 0009 1A541E 0010 1A541E

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-32030iMCL10199708

35410BODY ASSY, TRANSMISSION VALVE

main35410-45010iMCL10199708-200008

main35410-45020iMCL10200008

35412ABODY, MANUAL VALVE

main35412-32020iMCL10199708

35418VALVE, MANUAL

main35418-32010iMCL10199708

35423PISTON, B-2 ACCUMULATOR

main35403-33010iMCL10199708-200008

main35403-33030iMCL10200008

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-25031iMCL10199708-200008

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-21006iMCL10199708

UPPER

main90301-30005iMCL10199708

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35424-32021iMCL10199708-200008

main35424-33010iMCL10200008

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-27024iMCL10200008

main90501-28018iMCL10199708-200008

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-30005iMCL10199708

UPPER

main90301-36006iMCL10199708

LOWER

35425APISTON, C-2 ACCUMULATOR

main35405-32010iMCL10199708-200008

main35405-33021iMCL10200008

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-20153iMCL10199708-200008

main90501-21035iMCL10200008

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-25002iMCL10199708-200008

UPPER

main90301-26010iMCL10200008

UPPER

main90301-34007iMCL10199708

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-32020iMCL10199708

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-30005iMCL10199708

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-26036iMCL10199708

INNER

main90501-29019iMCL10199708

OUTER

35432PLATE, VALVE BODY, NO.1

main35432-33070iMCL10200008

main35432-45020iMCL10199708-200008

35433GASKET, VALVE BODY, NO.1

main35433-33011iMCL10200008

main35433-42010iMCL10199708-200008

35434GASKET, VALVE BODY, NO.2

main35434-33012iMCL10200008

main35434-42010iMCL10199708-200008

35469DSPACER (FOR C-0 ACCUMULATOR PISTON)

main35469-32020iMCL10199708-200008

main35469-33010iMCL10200008

35469ERING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)

main96151-03700iMCL10199708

35474ACOVER, ACCUMULATOR

main35474-32030iMCL10199708-200008

main35474-33011iMCL10200008

35478GASKET, ACCUMULATOR COVER

main35478-32020iMCL10199708-200008

main35478-33010iMCL10200008

35599COVER, MANUAL DETENT SPRING

main35599-32020iMCL10199708

24 parts on this diagram · 10 diagrams in section
