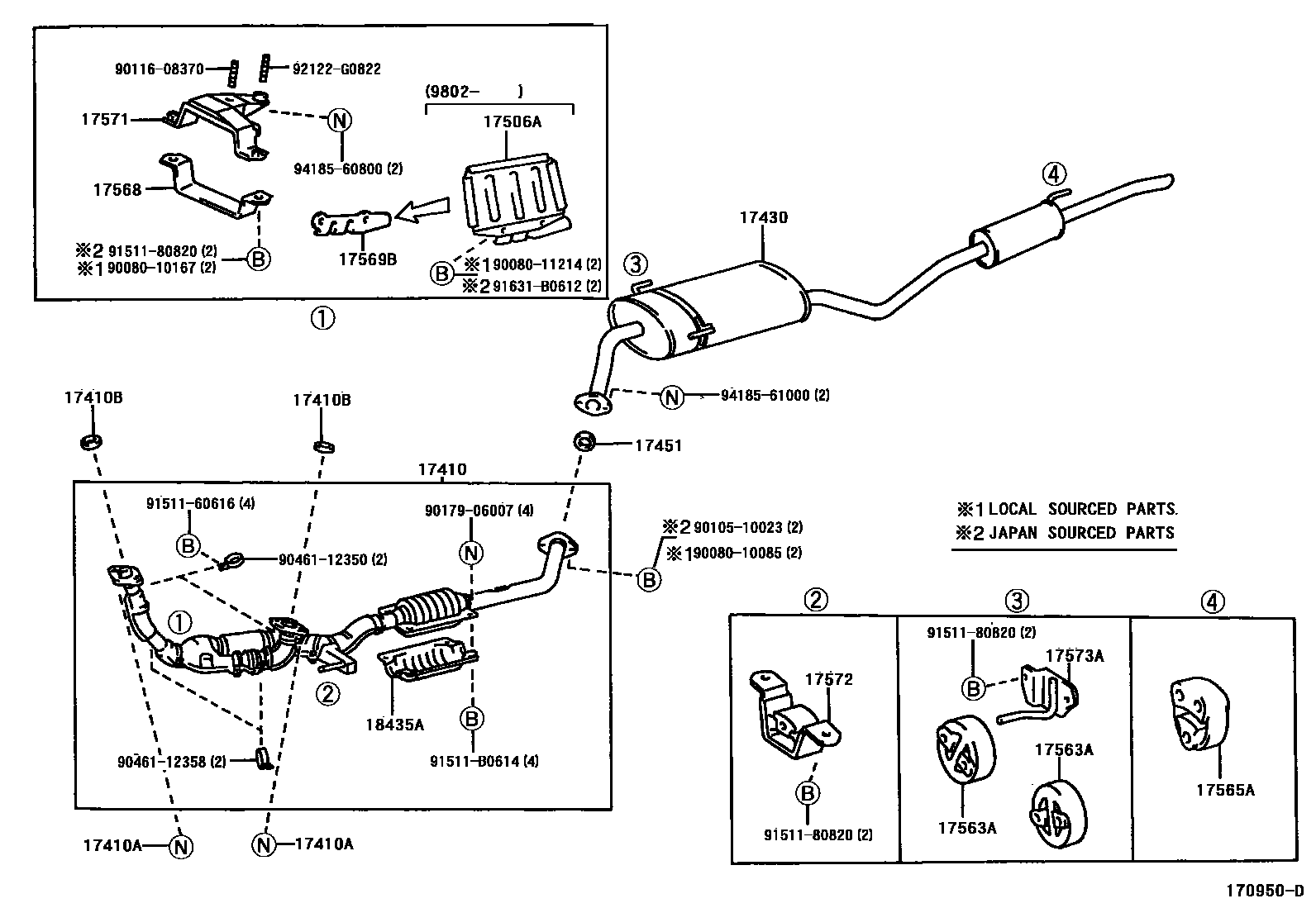

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
(L)
(J)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
(L)
(L)
(J)
(J)
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
(L)
(L)
(L)
(J)
(J)
(J)
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
(L)
(J)
18435APROTECTOR, MONOLITHIC CONVERTER
9008010085
main90080-10085
9008010167
main90080-10167
9008011214
main90080-11214
9010510023
main90105-10023
9011608370
main90116-08370
9017906007
main90179-06007
9046112350
main90461-12350
9046112358
main90461-12358
9151160616
main91511-60616
9151180820
main91511-80820
91511B0614
main91511-B0614
91631B0612
main91631-B0612
92122G0822
main92122-G0822
9418560800
main94185-60800
9418561000
main94185-61000
29 parts on this diagram · 3 diagrams in section
