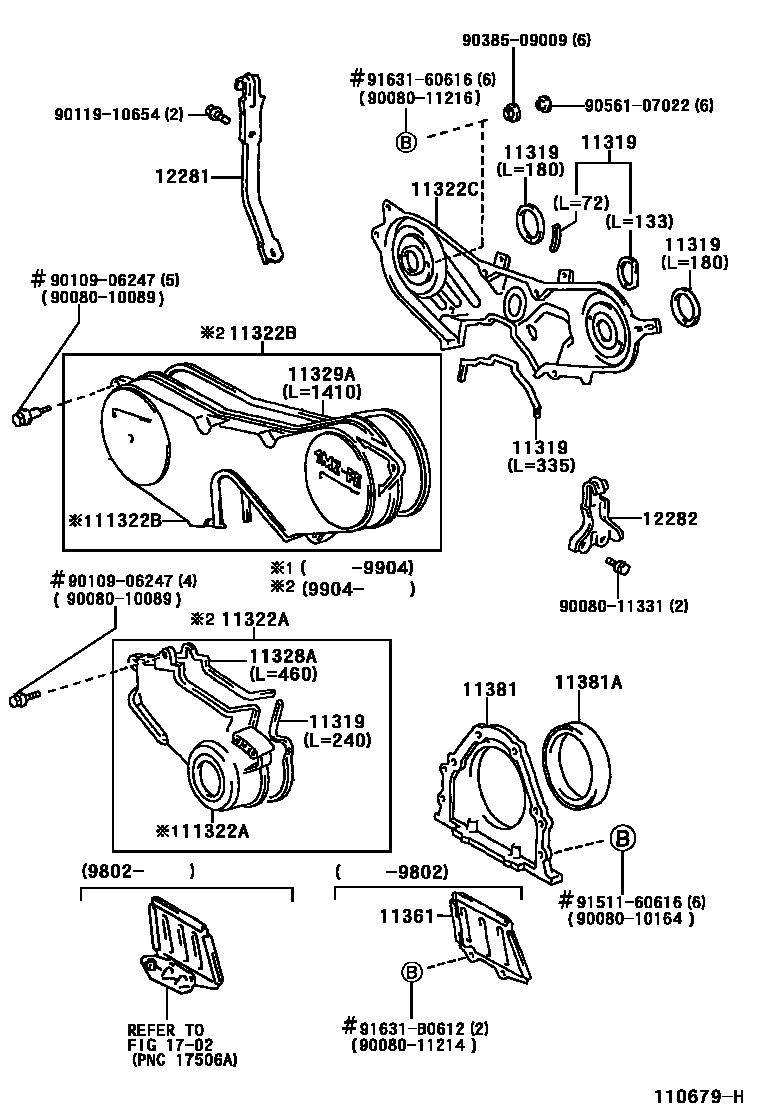

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010i1MZFE..MCL10199708

11322ACOVER, TIMING BELT, NO.1

main11302-0A020i1MZFE..MCL10200008

(L)

main11302-20040i1MZFE..MCL10199904-200008

main11302-20040i1MZFE..MCL10200008

(J)

main11321-20900i1MZFE..MCL10199708-199904

11322BCOVER, TIMING BELT, NO.2

main11303-0A031i1MZFE..MCL10200008

(L)

sub11303-20040

main11303-20040i1MZFE..MCL10200008

(J)

main11303-20040i1MZFE..MCL10199904-200008

main11322-20030i1MZFE..MCL10199710-199904

main11322-20901i1MZFE..MCL10199708-199710

11322CCOVER, TIMING BELT, NO.3

main11304-20902i1MZFE..MCL10199708-199710

main11323-20030i1MZFE..MCL10199710

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i1MZFE..MCL10199708

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i1MZFE..MCL10199708

11361COVER, FLYWHEEL HOUSING UNDER

main11361-0A010i1MZFE..MCL10199708-199802

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0A010i1MZFE..MCL10199708

11381ASEAL, ENGINE REAR OIL

main90080-31033i1MZFE..MCL10199708-199803

sub90080-31053

main90080-31053i1MZFE..MCL10199803

sub90311-A0027

12281HANGER, ENGINE, NO.1

main12281-0A021i1MZFE..MCL10199708

12282HANGER, ENGINE, NO.2

main12282-20020i1MZFE..MCL10199708

1702

9008010089

main90080-10089

9008010164

main90080-10164

9008011214

main90080-11214

9008011216

main90080-11216

9008011331

main90080-11331

9010906247

main90109-06247

9011910654

main90119-10654

9038509009

main90385-09009

9056107022

main90561-07022

9151160616

main91511-60616

9163160616

main91631-60616

91631B0612

main91631-B0612

24 parts on this diagram · 1 diagram in section
