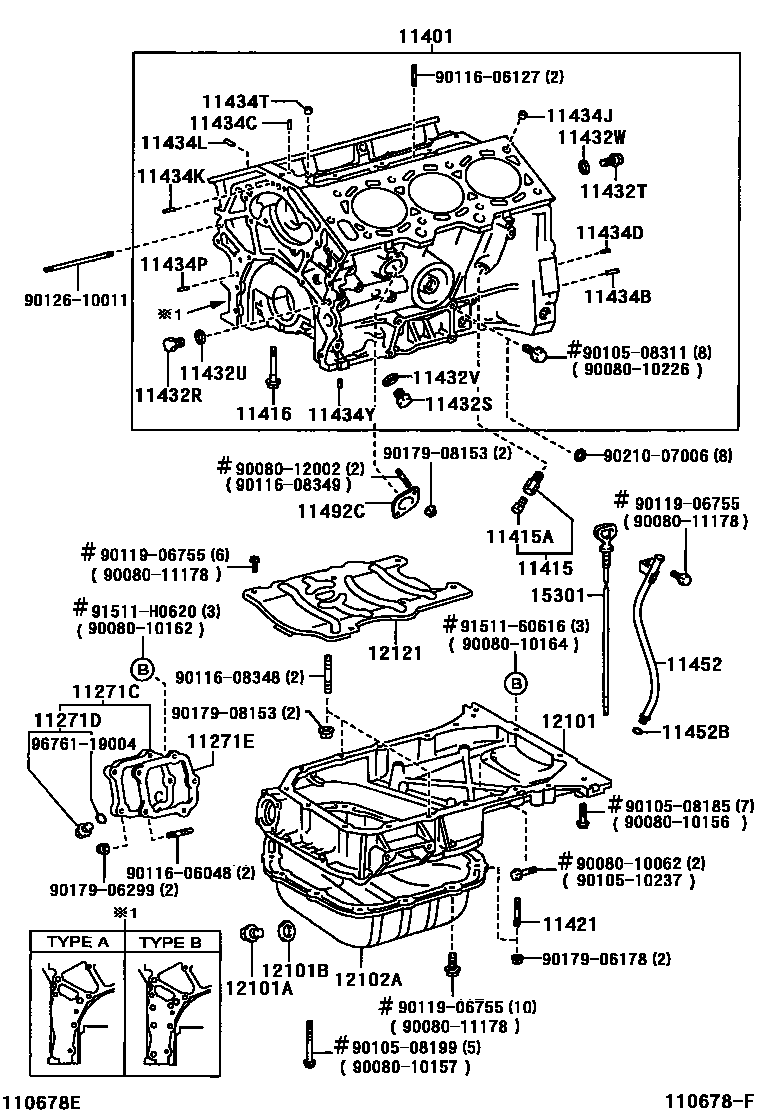

CYLINDER BLOCK

11271CCOVER, CYLIVDER BLOCK SIDE

main11271-20010i1MZFE..MCL10199708

11271DPLUG, DRAIN COCK(FOR CYLINDER BLOCK SIDE COVER )

main90910-09104i1MZFE..MCL10199708

11271EGASKET, E.G.R COOLER

main25685-0A010i1MZFE..MCL10199708

11401BLOCK SUB-ASSY, CYLINDER

main11401-09100i1MZFE..MCL10199708-199908

(L)

main11401-09101i1MZFE..MCL10199908-200008

(L)

main11401-09210i1MZFE..MCL10200101

TYPE A:REFER TO ILLUSTRATION

main11401-09230i1MZFE..MCL10200101-200108

TYPE B:REFER TO ILLUSTRATION

main11401-29515i1MZFE..MCL10199708-199903

(J)

main11401-29516i1MZFE..MCL10199903-200008

(J)

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i1MZFE..MCL10199708

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1MZFE..MCL10199708

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02114×16i1MZFE..MCL10199708

11421BOLT, STUD(FOR OIL PAN)

main90116-06098×2i1MZFE..MCL10199708-200301

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-16013i1MZFE..MCL10199708

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-16013i1MZFE..MCL10199708

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-20013i1MZFE..MCL10199708

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-16009i1MZFE..MCL10199708

11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)

main90430-16009i1MZFE..MCL10199708

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-20004i1MZFE..MCL10199708

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1MZFE..MCL10199708

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i1MZFE..MCL10199708

L=12,OD=4.0

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097×2i1MZFE..MCL10199708

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-16001×4i1MZFE..MCL10199708

11434KPIN, STRAIGHT(FOR WATER PUMP)

main90250-04097×2i1MZFE..MCL10199708

11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)

main90250-04097×2i1MZFE..MCL10199708

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

main90250-04097×2i1MZFE..MCL10199708

L=12,OD=4.0

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90253-11021i1MZFE..MCL10199708

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1MZFE..MCL10199708

11452GUIDE, OIL LEVEL GAGE

main11452-0A020i1MZFE..MCL10199708

(L)

main11452-20020i1MZFE..MCL10199708

(J)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1MZFE..MCL10199708

11492CPLATE, WATER SEAL

main11492-20010i1MZFE..MCL10200104

main11492-50010i1MZFE..MCL10199708-200104

12101PAN SUB-ASSY, OIL

main12111-0A020i1MZFE..MCL10199708-199908

(L)

main12111-0A021i1MZFE..MCL10199908-200202

(L)

main12111-0A030i1MZFE..MCL10200202

(L)

main12111-20031i1MZFE..MCL10199708-199710

(J)

main12111-20032i1MZFE..MCL10199710

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1MZFE..MCL10200210

main90341-12026i1MZFE..MCL10199708-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1MZFE..MCL10199708

12102APAN SUB-ASSY, OIL, NO.2

main12102-0A010i1MZFE..MCL10199708

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0A010i1MZFE..MCL10199708-199901

main12121-0A011i1MZFE..MCL10199901

15301GAGE SUB-ASSY, OIL LEVEL

main15301-20020i1MZFE..MCL10199708-199711

main15301-20021i1MZFE..MCL10199711

9008010062

main90080-10062

9008010156

main90080-10156

9008010157

main90080-10157

9008010162

main90080-10162

9008010164

main90080-10164

9008010226

main90080-10226

9008011178

main90080-11178

9008012002

main90080-12002

9010508185

main90105-08185

9010508199

main90105-08199

9010508311

main90105-08311

9010510237

main90105-10237

9011606048

main90116-06048

9011606127

main90116-06127

9011608348

main90116-08348

9011608349

main90116-08349

9011906755

main90119-06755

9012610011

main90126-10011

9017906178

main90179-06178

9017906299

main90179-06299

9017908153

main90179-08153

9021007006

main90210-07006

9151160616

main91511-60616

91511H0620

main91511-H0620

9676119004

main96761-19004

57 parts on this diagram · 1 diagram in section
