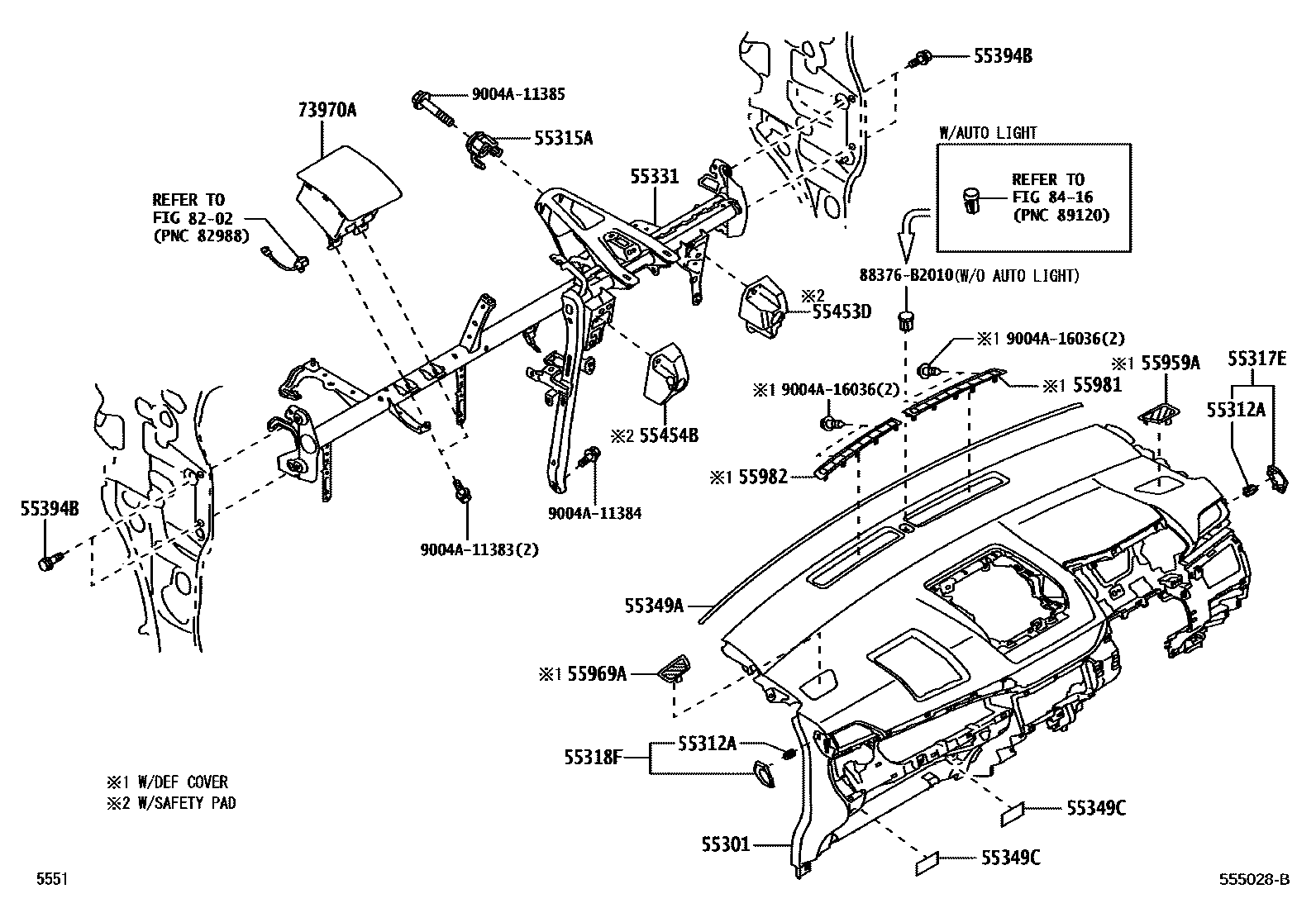

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ890-C0iW100,101..IDN,THAI202111

BLACK,TRIM2#

main55311-BZA00-C0iW101..M..GEN202201

BLACK,TRIM2#

main55311-BZA10-C0iW100,101..LHD..(GEN,PHL,VN); W101..MXC202201

BLACK,TRIM2#; PERU + BOLIVIA,BLACK,TRIM2#

main55311-BZA20-C0iW101..GCC,MXC202201

BLACK,TRIM2#

55312ACLIP, INSTRUMENT PANEL

main90467-05171×4iW100,101202111

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iW100,101202111

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-BZ010-C0iW100,101202111

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-BZ020-C0iW100,101202111

BLACK,TRIM2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZC00iW100,101..RHD..CVT..(GEN,IDN)202111

W/O SAFETY PAD

main55305-BZC10iW100,101..5F..IDN202111

W/SAFTY PAD

main55305-BZC20iW100..GEN;W101..LHD..(G,S,V);W100,101..LHD..CVT..M202201

main55305-BZC30iW100,101..5F..(PHL,VN)202201

main55305-BZC90iW101..THAI202201

main55305-BZ750iW101..GCC202212

UNITED ARAB EMIRATES

55349ACUSHION, INSTRUMENT PANEL

main55349-BZ140iW100,101202111

55349CCUSHION, INSTRUMENT PANEL

main55349-BZ200×2iW100,101202111

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4iW100,101202111

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ140iW100,101..CVT..(D,S)..IDN; W100,101..IDN,THAI202111

RHD GENERAL EXP

main55453-BZ160iW100,101..PHL,VN202201

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ150iW100,101..CVT..(D,S)..IDN; W100,101..IDN,THAI202111

RHD GENERAL EXP

main55454-BZ170iW100,101..PHL,VN202201

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-BZ080-C0iW101..M..GEN202201

BLACK,TRIM2#

main55959-BZ090-C0iW100..PHL;W101..CVT..PHL202201

BLACK,TRIM2#

55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-BZ060-C0iW101..M..GEN202201

BLACK,TRIM2#

main55969-BZ070-C0iW100..PHL;W101..CVT..PHL202201

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ100-C0iW101..M..GEN202201

BLACK,TRIM2#

main55981-BZ110-C0iW100..PHL;W101..CVT..PHL202201

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-BZ040-C0iW101..M..GEN202201

BLACK,TRIM2#

main55982-BZ050-C0iW100..PHL;W101..CVT..PHL202201

BLACK,TRIM2#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ300-C0iW100,101..RHD202111

BLACK,TRIM2#

main73970-BZ310-C0iW100,101..LHD202201

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

→ Go to FIG 84-16

88376B2010CAP, BLIND

main88376-B2010

9004A11383

main9004A-11383

9004A11384

main9004A-11384

9004A11385

main9004A-11385

9004A16036

main9004A-16036

23 parts on this diagram · 11 diagrams in section
