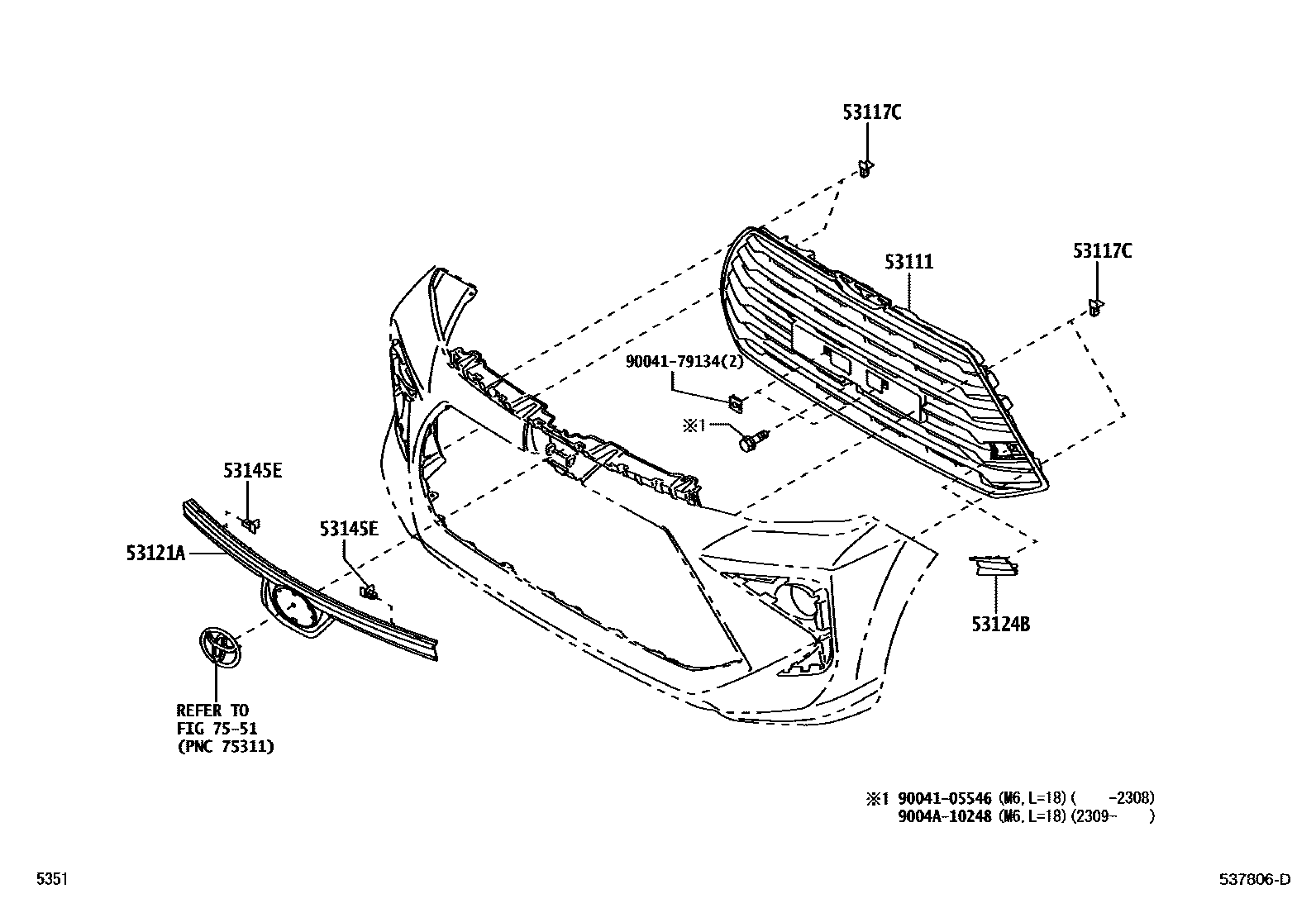

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-BZ600iW100,101..D,G,M202111

NO PAINT REQ.

main53111-BZ610iW101..V..(THAI,VN); W101..V..PHL202201

NO PAINT REQ.; NO PAINT REQ.,9INCH DISPLAY AUDIO

main53111-BZ620iW101..S;W101..V..(GCC,IDN,PHL)202111

NO PAINT REQ.

53117CRETAINER, RADIATOR GRILLE, NO.1

main76854-BZ010×4iW100,101202111

53121AMOULDING, RADIATOR GRILLE

main53121-BZ670iW101..5F..PHL202111-202309

main53121-BZ680iW101..M..IDN;W101..CVT..G..GEN202111

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main52713-BZ590iW101..5F..PHL202111-202309

53145ECLIP, RADIATOR GRILLE GARNISH

main76854-BZ010×2iW100,101..D,G,M202111

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9004105546

main90041-05546

9004179134

main90041-79134

9004A10248

main9004A-10248

9 parts on this diagram · 2 diagrams in section
