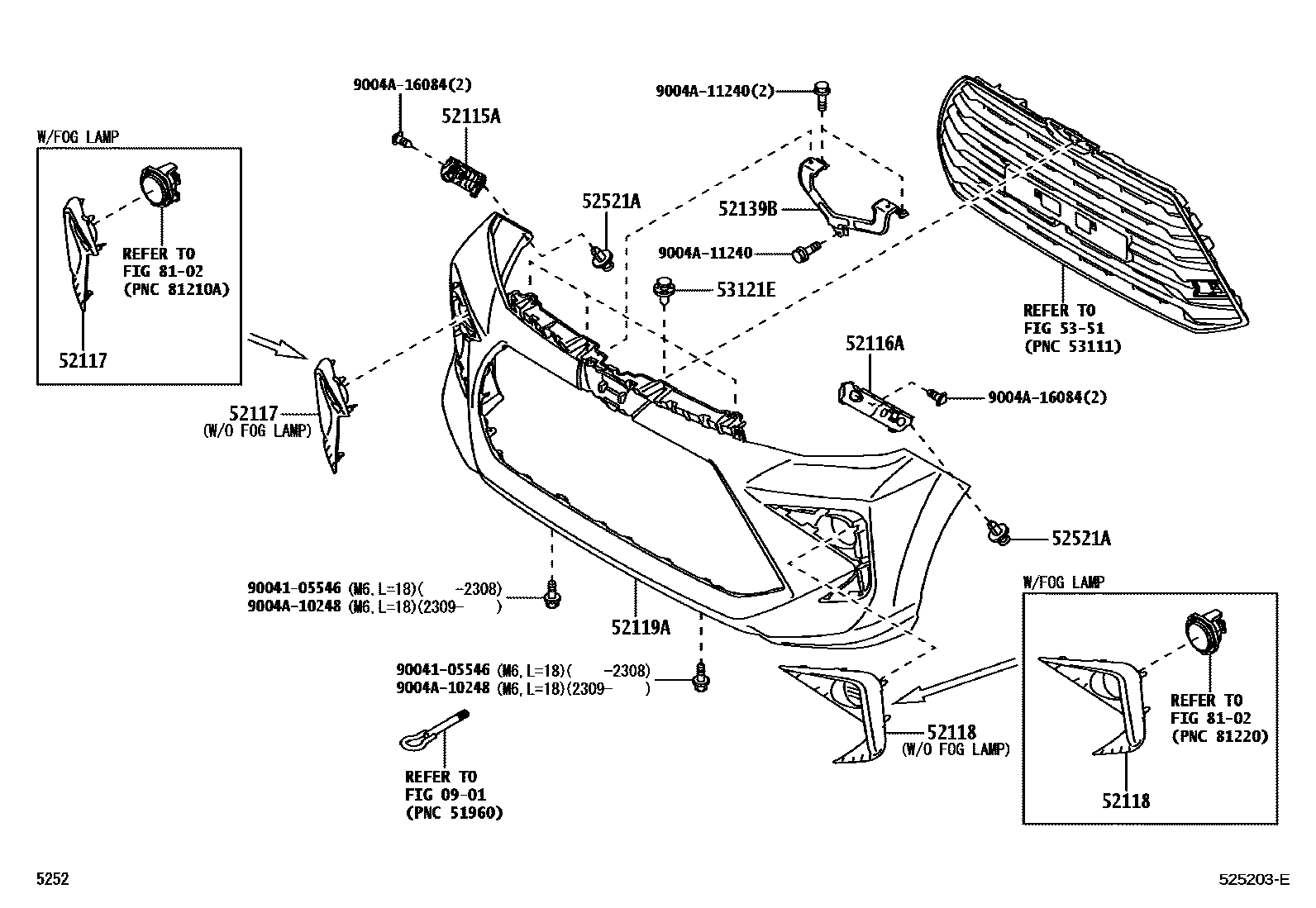

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

0901STANDARD TOOL

→ Go to FIG 09-01

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ240iW100,101..D,G,M202111

main52115-BZ280iW101..S,V202111

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ240iW100,101..D,G,M202111

main52116-BZ270iW101..S,V202111

52117MOULDING, BUMPER SIDE, RH

main52712-BZ610iW101..S,V202111

main52712-BZ660iW101..CVT..G;W101..5F..GEN;W100,101..M..(IDN,PHL,VN)202111

main52712-BZ670iW100..D;W101..M..GEN;W101..5F..MXC202111

52118MOULDING, BUMPER SIDE, LH

main52713-BZ600iW101..S,V202111

main52713-BZ650iW101..CVT..G;W101..5F..GEN;W100,101..M..(IDN,PHL,VN)202111

main52713-BZ660iW100..D;W101..M..GEN;W101..5F..MXC202111

52119ACOVER, FRONT BUMPER

main52119-BZP40iW101..GCC202212

main52119-BZS50iW100,101..D,G,M202111

PAINT REQ.

main52119-BZT00iW101..(S,V)..(IDN,PHL,THAI,VN)202111

PAINT REQ.

52139BBRACE, FRONT BUMPER, CENTER

main52139-BZ060iW100,101202111

52521ACLIP(FOR FRONT BUMPER RETAINER)

main9004A-46380×2iW100,101202111

53121ECLIP(FOR FRONT BUMPER), NO.1

main9004A-46323×4iW100,101202111

5351RADIATOR GRILLE

→ Go to FIG 53-51

8102FOG LAMP

→ Go to FIG 81-02

9004105546

main90041-05546

9004A10248

main9004A-10248

9004A11240

main9004A-11240

9004A16084

main9004A-16084

15 parts on this diagram · 2 diagrams in section
