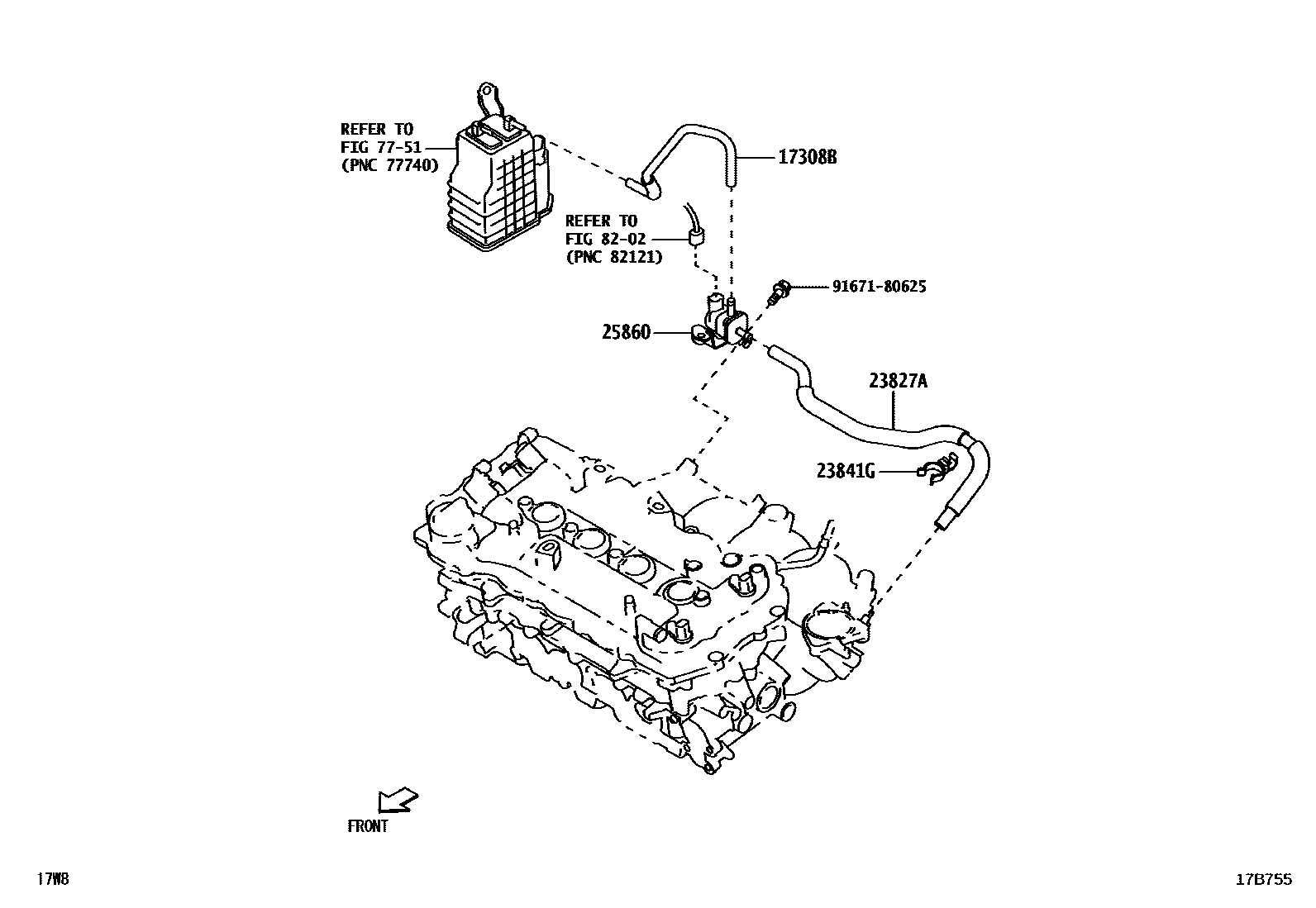

VACUUM PIPING

0001 1 0002 1W/EJECTOR

17308BHOSE SUB-ASSY, VACUUM

main77754-BZ430i1NRVE,2NRVE..W100,101..RHD202111

main77754-BZ440i1NRVE,2NRVE..W100,101..LHD202201

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-BZ130i1NRVE,2NRVE..W100,101202111

23841GCLAMP, FUEL HOSE

main9004A-46363i1NRVE,2NRVE..W100,101202111

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-BZ050i1NRVE,2NRVE..W100,101202111

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180625

main91671-80625

7 parts on this diagram · 2 diagrams in section
