WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR & ROOF 0010 1FLOOR 0011 1FLOOR 0012 1FUEL 0013 1CABLE BOND 0014 1CABLE BOND 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET

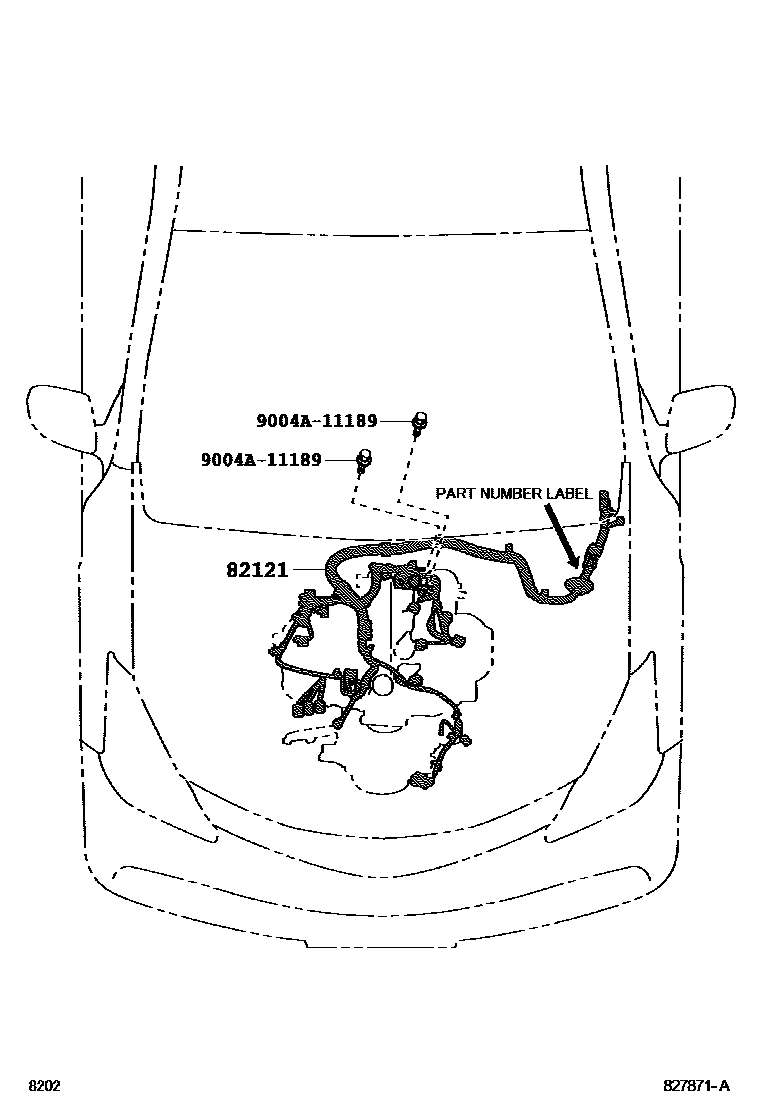

82121WIRE, ENGINE

main82121-BZ600iF652..GEN,PHL201112-201508

main82121-BZ610iF652..MXC201112-201508

main82121-BZ620iF651..LHD201112-201508

main82121-BZ640iF652..IDN201111-201508

main82121-BZ660iF652..TH201111-201508

main82121-BZ700iF651..MA,SA201111-201508

main82121-BZB30iF652..GCC201404-201508

main82121-BZB50iF653,654..4AT..(GCC,GEN,IDN,MA,SA)201507-201606

W/PART NUMBER LABEL

main82121-BZB51iF65#..4AT..(GEN,MA,SA)201607-201904

W/PART NUMBER LABEL

main82121-BZB51iF65#..4AT..(GEN,MA,SA)201607-201904

CAMBODIA/LAOS,W/PART NUMBER LABEL

main82121-BZB60iF654..4AT..(MXC,TH)201508-201606

W/PART NUMBER LABEL

main82121-BZB61iF654..4AT..GCC201607-201904

W/PART NUMBER LABEL

main82121-BZB61iF654..4AT..GCC201801-201904

COSTA RICA,W/PART NUMBER LABEL

main82121-BZB70iF653,654..5F..PHL201507-201606

W/PART NUMBER LABEL

main82121-BZB71iF65#..5F..(GEN,MA,SA)201607-201904

CAMBODIA/LAOS,W/PART NUMBER LABEL

main82121-BZB71iF65#..5F..IDN201607-201904

W/PART NUMBER LABEL

main82121-BZB80iF65#..5F..PHL201508-201606

W/PART NUMBER LABEL

main82121-BZB81iF65#..5F..IDN201607-201904

W/PART NUMBER LABEL

main82121-BZE21iF653..5F..IDN202111

W/PART NUMBER LABEL

main82121-BZK20iF65#..5F..(GCC,MXC,PHL)201901-202111

W/PART NUMBER LABEL

main82121-BZK30iF653..4AT..STD;F654..SPO..PHL;F654..4AT..(MID,STD)..(GCC,MXC,PHL,TH)201901-202110

W/PART NUMBER LABEL

9004A11189

main9004A-11189

2 parts on this diagram · 16 diagrams in section
