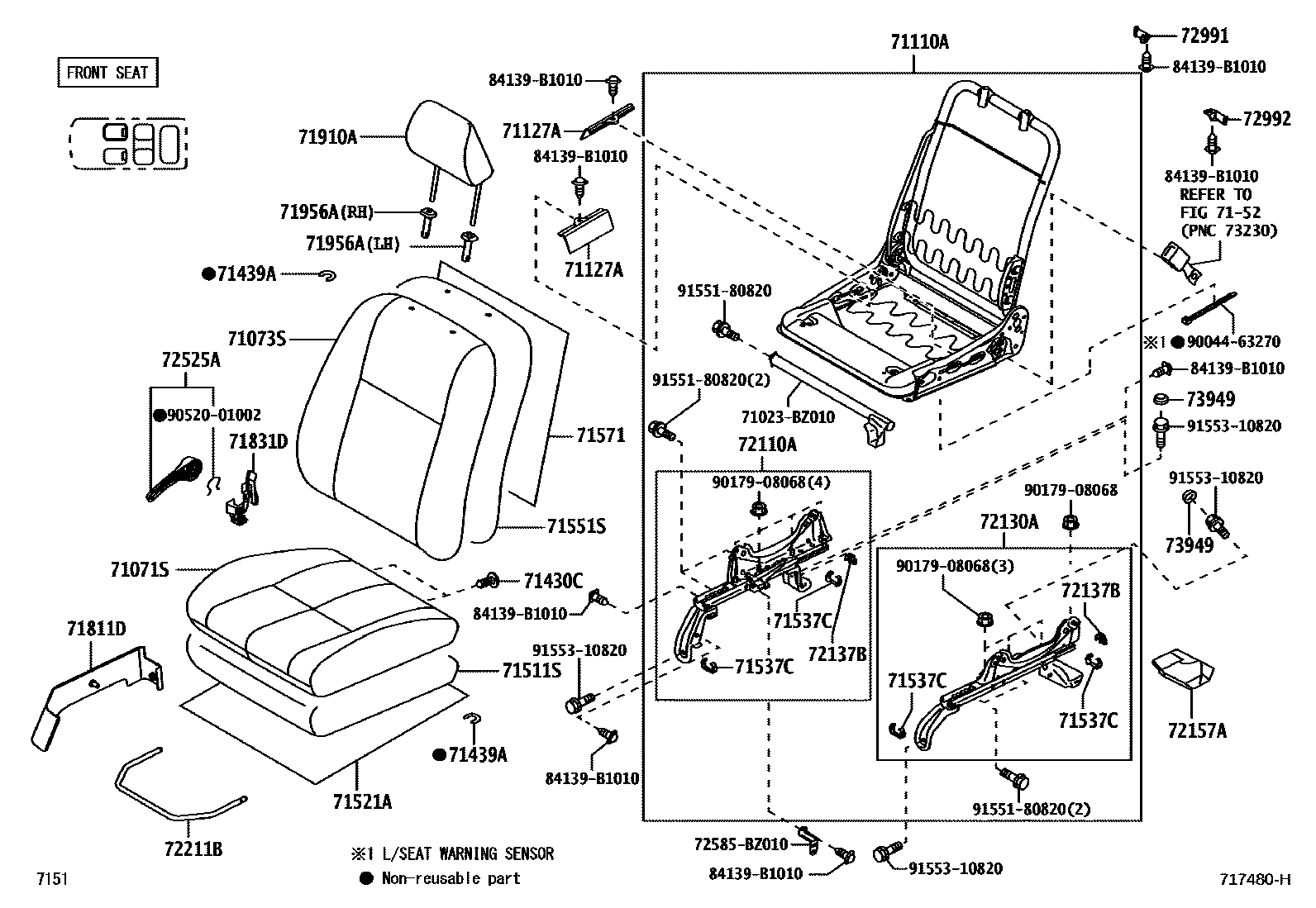

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
GRAY,TRIM1#
BEIGE,TRIM4#
BEIGE,TRIM4#
main71071-BZA50-C0iF652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH)201111-201305
BLACK,TRIM1#
BLACK,TRIM1#
BROWN,TRIM1#
main71071-BZG00-E1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904
BROWN,TRIM4#
main71071-BZG10-C1iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201507-201904
BLACK,TRIM1#
-,TRIM1#
-,TRIM1#; VIETNAM,-,TRIM4#
-,TRIM1#,4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
GRAY,TRIM1#
BEIGE,TRIM4#
BEIGE,TRIM4#
main71073-BZB00-C0iF652..SPO,STD;F651..STD..PHL;F651..(LO,STD)..(MA,SA);F652..MID..(MA,MXC,SA,TH)201111-201305
BLACK,TRIM1#
BLACK,TRIM1#
BROWN,TRIM1#
main71073-BZG90-E1iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904
BROWN,TRIM4#
main71073-BZJ00-C2iF653..SPO;F653..STD..PHL;F653..(LO,STD)..(MA,SA);F654..MID..(MA,MXC,SA,TH);F654..(SPO,STD)..(IDN,MA,PHL,SA,TH)201507-201904
BLACK,TRIM1#
-,TRIM4#
-,TRIM1#,4#
-,TRIM1#; -,TRIM1#,4#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-BZ131iF654..5F..STD..SA;F654..4AT..STD..TH;F654..4AT..MID..(GCC,PHL);F65#..MID..(GEN,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA)201901
71127APLATE, FR0NT SEAT CUSHION COVER SET
71430CCLIP
-
71439ACLIP
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152SEAT BELT
71521APAD,FRONT SEAT CUSHION SILENCER
71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71571PAD, FRONT SEATBACK SILENCER, A
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-BZ110-B0iF652..SPO,STD;F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201305
DK.GRAY,TRIM1#
-,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
BEIGE,TRIM4#
71831DCOVER, FRONT SEAT HINGE, RH
DK.GRAY,TRIM1#
-,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
MD.GRAY,TRIM1#
main71910-BZ790-C0×2iF651..STD..(MA,PHL);F652..MID..(MA,MXC,TH);F652..(SPO,STD)..(IDN,MA,TH)201111-201305
BLACK,TRIM1#
BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BEIGE,TRIM4#
BEIGE,TRIM4#
main71910-BZC20-C1×2iF653..SPO;F654..MID..TH;F653..STD..PHL;F654..(SPO,STD)..(IDN,PHL,TH)201507-201904
BLACK,TRIM1#
BROWN,TRIM1#
BLACK,TRIM1#
main71910-BZC40-E0×2iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904
BROWN,TRIM4#
-,TRIM1#
-,TRIM1#,4#; -,TRIM4#
-,TRIM1#
-,TRIM1#
CAMBODIA/LAOS,-,TRIM1#
71956ASUPPORT, FRONT SEAT HEADREST
W(LOCK),DK.GRAY,TRIM1#,4#,LH; W(LOCK),DK.GRAY,TRIM1#,LH; W(LOCK),DK.GRAY,TRIM4#,LH
W(LOCK),-,TRIM4#,LH
W(LOCK),OAK,TRIM1#,LH
main71931-BZ030-B0×2iF65#..4AT..(GCC,GEN); F653..STD..IDN;F654..4AT..MID..PHL; F654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F654..(SPO,STD)..(MA,PHL,SA);F653..(LO,STD,VB)..(GEN,PHL,SA)201901
W/O(LOCK),DK.GRAY,TRIM1#,4#,RH; W/O(LOCK),DK.GRAY,TRIM1#,RH; W/O(LOCK),DK.GRAY,TRIM4#,RH
W/O(LOCK),-,TRIM4#,RH
main71931-BZ030-E1×2iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201904
W/O(LOCK),OAK,TRIM4#,RH
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72130ATRACK ASSY, FRONT SEAT, INNER RH
72137BCOVER, SEAT TRACK, RH
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-BZ020-B0iF653..STD..IDN;F654..4AT..MID..PHL; F654..4AT..STD..GCC;F65#..MID..(GCC,GEN); F654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F654..(SPO,STD)..(MA,PHL,SA);F653..(LO,STD,VB)..(GEN,PHL,SA)201901
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
72211BHANDLE, SEAT TRACK ADJUSTING
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-BZ110-B0iF65#..4AT..(GCC,GEN); F653..STD..IDN;F654..4AT..MID..PHL; F654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F654..(SPO,STD)..(MA,PHL,SA);F653..(LO,STD,VB)..(GEN,PHL,SA)201901
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
-,TRIM4#
72991COVER, FRONT SEAT CUSHION, RH
RH SEAT-OUTER
LH SEAT-INNER
72992COVER, FRONT SEAT CUSHION, LH
LH SEAT-OUTER
RH SEAT-INNER
73949CAP
71023BZ010PLATE SUB-ASSY, FRONT SEAT HINGE, RH
main71023-BZ010
72585BZ010BRACKET, SEAT BELT HANGER, RH
main72585-BZ010
84139B1010
main84139-B1010
9004463270
main90044-63270
9017908068
main90179-08068
9052001002
main90520-01002
9155180820
main91551-80820
9155310820
main91553-10820
33 parts on this diagram · 18 diagrams in section
