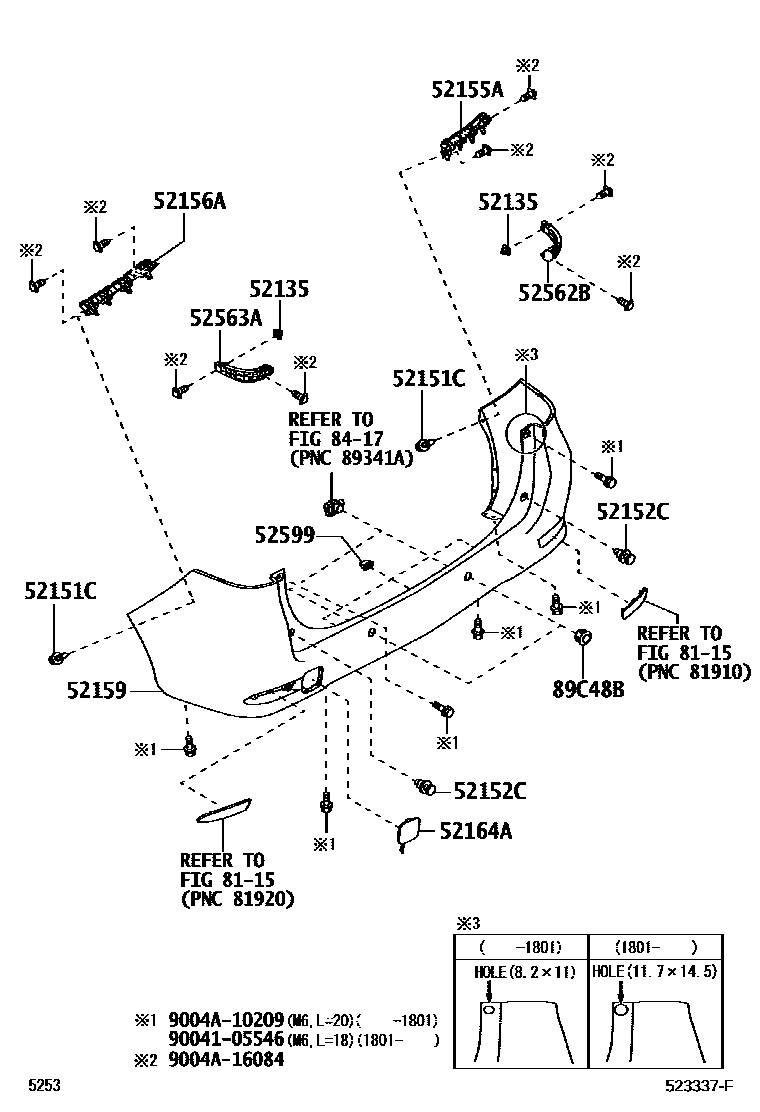

REAR BUMPER & BUMPER STAY

0001 1 0006 1 0008 1 0010 1

52135GROMMET, REAR BUMPER STAY

main9004A-18034×2iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main55394-60050×2iF65#..IDN201111-201507

52152CCLIP, REAR BUMPER SIDE

main90044-67567×2iF65#..IDN201111-201507

main9004A-46334×2iF65#..(MID,SPO)..IDN201901-202110

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ120iF65#..IDN201111-201507

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ120iF65#..IDN201111-201507

52159COVER, REAR BUMPER

main52159-BZ140iF65#..(MID,STD)..IDN201111-201507

main52159-BZ141iF653..IDN202111

main52159-BZ800iF652..SPO..IDN201111-201507

main52159-BZ801iF654..SPO..(MA,PHL)201801-201904

main52159-BZE20iF65#..(MID,STD)..MA; F654..MID..TH201508-201801

L/RR FOG LAMP; W/BACK SONER,L/RR FOG LAMP

main52159-BZE21iF654..MID..TH; F654..STD..MA201801-201904

L/RR FOG LAMP; W/BACK SONER,L/RR FOG LAMP

main52159-BZF90iF654..MID..GCC201609-201801

W/RR FOG LAMP

main52159-BZF91iF654..MID..GCC201801-201904

W/RR FOG LAMP

main52159-BZG00iF654..STD..GCC201609-201801

W/RR FOG LAMP

main52159-BZG01iF654..STD..GCC201801-201904

W/RR FOG LAMP

main52159-BZJ60iF653..STD..IDN201901-202111

L/RR FOG LAMP

main52159-BZJ70iF65#..SPO..IDN201901-202110

L/RR FOG LAMP

main52159-BZK50iF654..STD..GCC201904-202201

W/RR FOG LAMP

main52159-BZK60iF654..MID..GCC201904-202201

W/RR FOG LAMP

52164APLATE, REAR BUMPER, LH

main52164-BZ130iF653..IDN202111

main52164-BZ150iF654..SPO..(MA,PHL)201507-201904

main52164-BZ230iF653..STD..PHL;F653..MID..GEN;F654..LHD..5F..STD;F654..4AT..STD..(GCC,TH);F654..MID..(GCC,MXC,PHL,SA,TH)201901

main52164-BZ240iF654..(SPO,STD)..(MA,PHL)201901-202201

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-BZ010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-BZ010iF65#..IDN201111-201507

52599STOPPER, REAR BUMPER, UPPER

main90044-67499×3iF653,654..GCC,GEN,MA,MXC,PHL,SA,TH201507-201509

main9004A-46356×3iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201509-201901

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-BZ030×2iF654..MA; F654..MID..GCC201904-202201

PARKING SUPPORT ALT/BRK(O/RR2)

9004105546

main90041-05546

9004A10209

main9004A-10209

9004A16084

main9004A-16084

16 parts on this diagram · 4 diagrams in section
