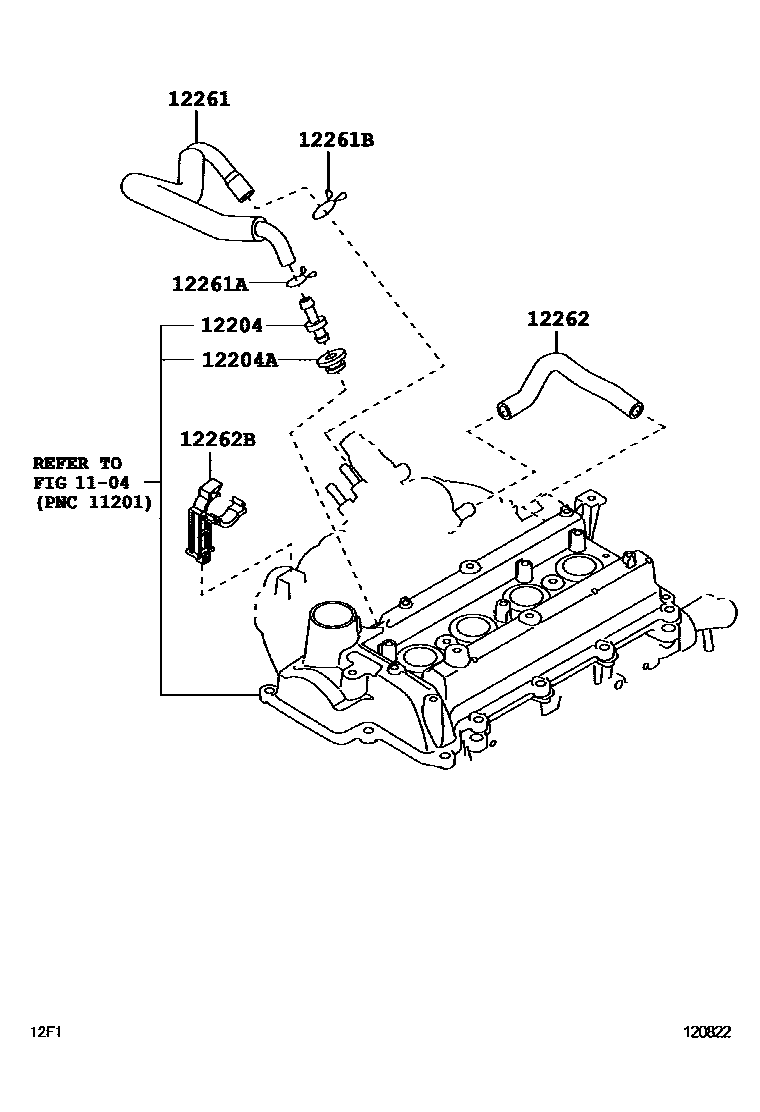

VENTILATION HOSE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main12204-97401iK3VE,3SZVE..F65#..IDN201111-201507

12204AGROMMET(FOR VENTILATION SYSTEM)

main11249-47020i1NRVE,2NRVE..F653,654201507-201605

main9004A-48040iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main90480-T0013i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

12261HOSE, VENTILATION

main12261-BZ140iK3VE,3SZVE..F65#..IDN201111-201507

main12261-BZ160i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

main12261-BZ180i1NRVE,2NRVE..F65#..GCC,GEN,MXC,SA201508-201904

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001iK3VE,3SZVE..F65#..IDN201111-201507

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-18003iK3VE,3SZVE..F65#..IDN201111-201507

12262HOSE, VENTILATION, NO.2

main12262-BZ010iK3VE,3SZVE..F65#..IDN201111-201507

main12262-BZ080i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901

12262BCLAMP(FOR VENTILATION HOSE)

main90044-64813iK3VE,3SZVE..F65#..IDN201111-201507

8 parts on this diagram · 2 diagrams in section
