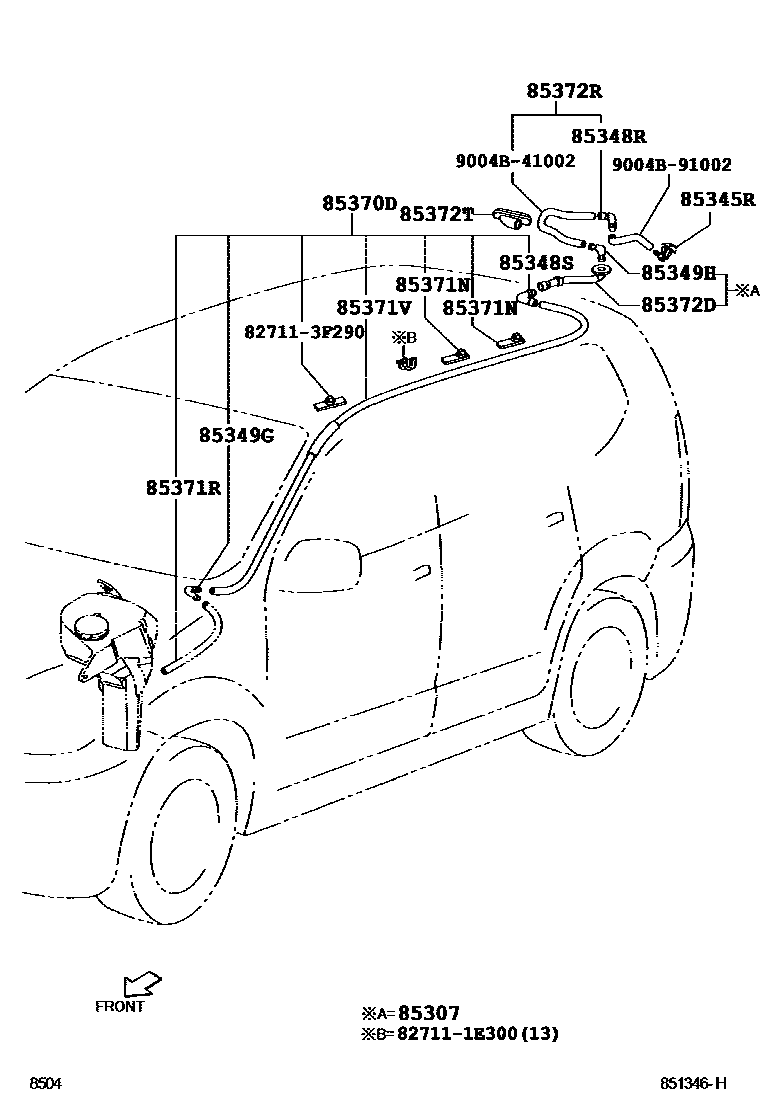

REAR WASHER

0001 1 0002 1 0003 1 0004 1

85307GROMMET SUB-ASSY, WASHER

main85307-BZ010iF601..BRU,IDN,TH200312-200608

main85307-BZ030iF601..MA200410-200911

85345RNOZZLE, REAR WASHER

main85391-BZ020iF601200409-200911

main9004B-49001iF601200312-200408

85348RJOINT, REAR WASHER HOSE, NO.1

main85317-BZ010iF601..BRU,IDN,TH200312-200608

sub85349-87602

main85349-87602iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH200608-200911

85348SJOINT, REAR WASHER ELBOW, NO.1

main85317-BZ010iF601..BRU,IDN,TH200312-200608

sub85349-87602

main85349-87602iF601..4AT200608-200911

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-87201iF602..MA;F601..5F..MA200609-200911

main85349-89122iF60#..GEN,IDN,PHL,SA,TH200312-200608

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-87602iF60#..GEN,IDN,PHL,SA,TH200608

main85349-BZ010iF601..4AT200609-200911

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZ010iF601..BRU,IDN,TH200312-200608

main85370-BZ060iF601..4AT200410-200911

sub85370-BZ010

85371NCLAMP, REAR WASHER HOSE

main82711-52090iF601..4AT200312-200911

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main9004B-44001iF601..BRU,IDN,TH200312-200608

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main9004B-41001iF60#..GEN,IDN,PHL,SA,TH200312-200608

85372DGROMMET, REAR WASHER HOSE

main85372-20040iF60#..GEN,IDN,PHL,SA,TH200608

main85372-BZ020iF601..4AT200609-200911

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main85370-BZ020iF60#..GEN,IDN,PHL,SA,TH200312-200608

L=170

main85370-BZ070iF601..4AT200410-200911

L=170

sub85370-BZ020

85372TGROMMET, WASHER

main85373-BZ010iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH200312-200911

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

9004B41002

main9004B-41002

9004B91002

main9004B-91002

17 parts on this diagram · 4 diagrams in section
