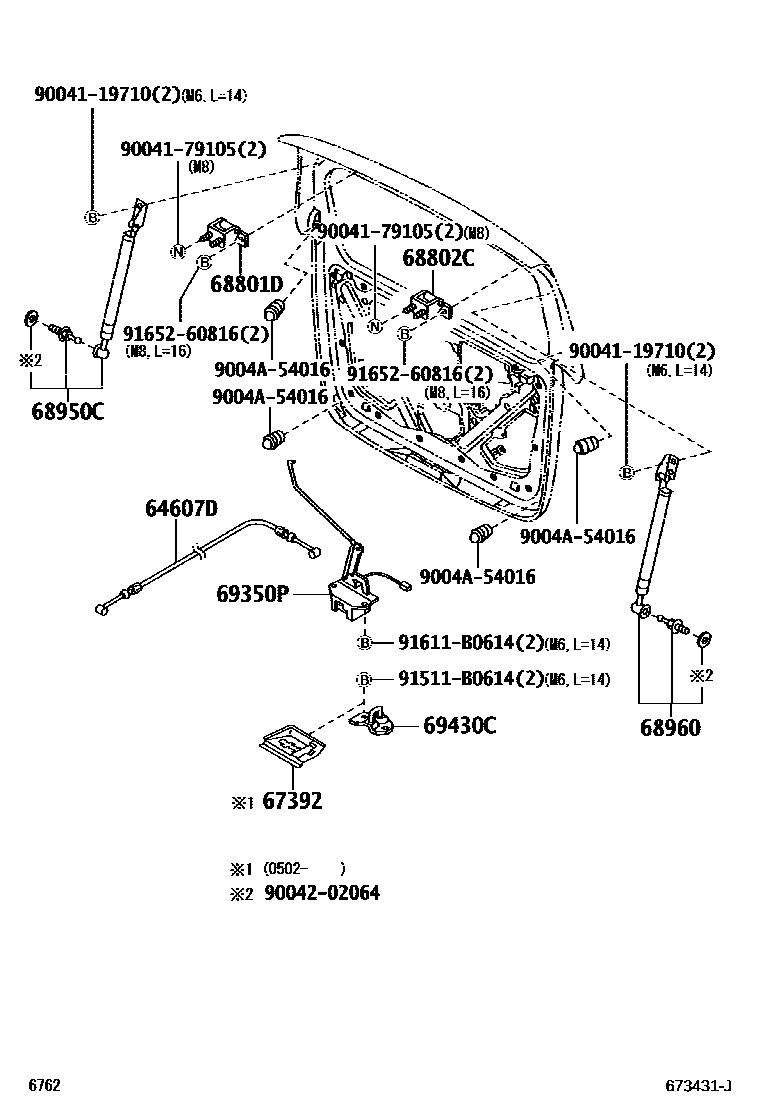

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1

64607DCABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-BZ011iF601200312-200608

67392PROTECTOR, BACK DOOR LOCK

main67392-BZ010iF601..4AT200608-200911

main67392-BZ011iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201108

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-BZ010iF601200312-200608

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-BZ010iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200608

68950CSTAY ASSY, BACK DOOR, RH

main68950-B9130iF602..MXC200610

main68950-B9131iF601200312-200608

68960STAY ASSY, BACK DOOR, LH

main68960-B9130iF602..MXC200610

main68960-B9131iF601200312-200608

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-B0010iF601200312-200608

main69350-BZ140iF60#..GEN,IDN,MXC,PHL,SA,TH200903-201107

main69350-BZ141iF60#..GEN,IDN,MXC,PHL,SA,TH201108

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B0010iF601200312-200608

main69430-BZ060iF60#..GEN,IDN,MXC,PHL,SA,TH200903

9004119710

main90041-19710

9004179105

main90041-79105

9004202064

main90042-02064

9004A54016

main9004A-54016

91511B0614

main91511-B0614

91611B0614

main91611-B0614

9165260816

main91652-60816

15 parts on this diagram · 3 diagrams in section
