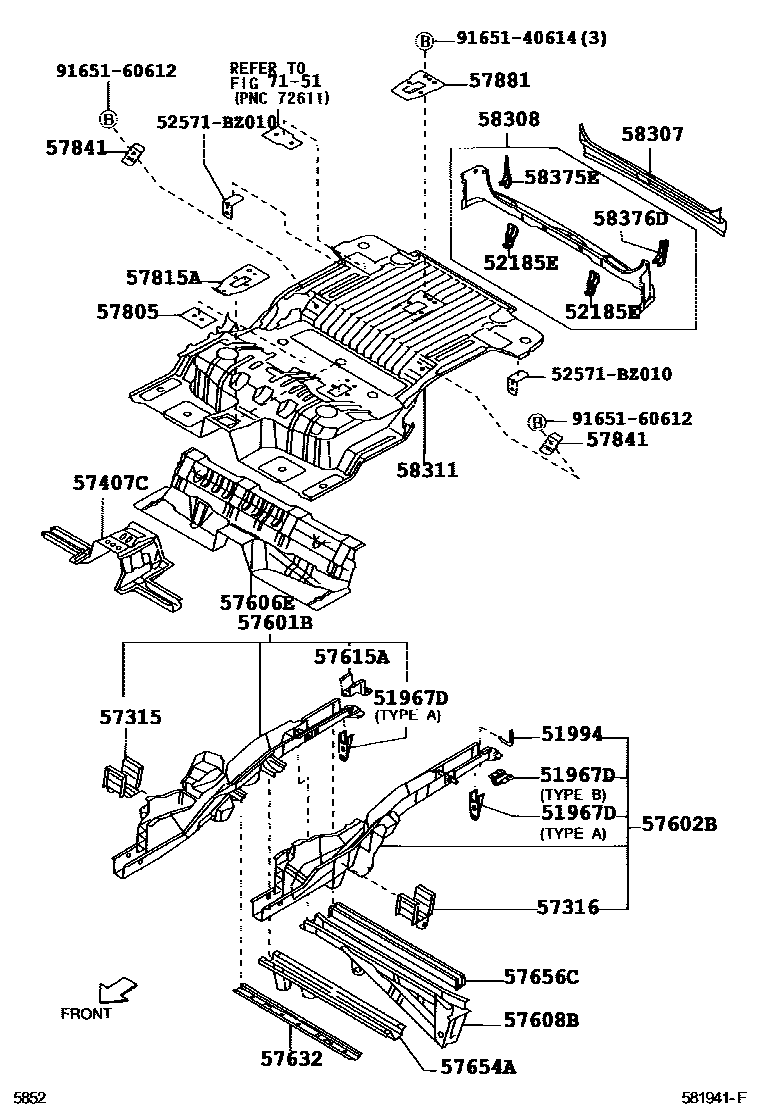

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51967DHOOK SUB-ASSY,REAR

main51095-BZ010iF601..4AT200608-200911

TYPE B

main51096-BZ010×2iF601..4AT..(BRU,IDN,TH)200404-200608

TYPE A

51994HANGER, EXHAUST PIPE, NO.4

main51994-BZ010iF601..4AT200608-200911

52185EBRACKET, REAR BUMPER SIDE MOUNTIN, RH

main52185-BZ010×2iF601200312-200608

main52185-BZ080×2iF60#..GEN,IDN,MXC,PHL,SA,TH201104

57315OUTRIGGER, NO.3 RH

main57315-BZ010iF601..4AT..MA;F601..5F..(IDN,MA)200312-200608

main57315-BZ011iF602..PHL;F601..E,G,J;F602..RHD..(GEN,IDN,MA)200608-200710

main57315-BZ012iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)200711-201011

main57315-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

main57315-BZ021iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD200608-200710

main57315-BZ022iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD200711-201011

main57315-BZ130iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)201011

main57315-BZ140iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD201011

57316OUTRIGGER, NO.3 LH

main57316-BZ010iF601..4AT..MA;F601..5F..(IDN,MA)200312-200608

main57316-BZ011iF602..PHL;F601..E,G,J;F602..RHD..(GEN,IDN,MA)200608-200710

main57316-BZ012iF601..4AT200711-200911

main57316-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

main57316-BZ021iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD200608-200710

main57316-BZ022iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD200711-201011

main57316-BZ120iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)201011

main57316-BZ130iF602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD201011

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200608-201104

main57407-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH201104

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ010iF601..4AT..MA;F601..5F..(IDN,MA)200312-200608

main57601-BZ011iF602..PHL;F601..E,G,J;F602..RHD..(GEN,IDN,MA)200608-200710

main57601-BZ012iF601..4AT200711-200911

main57601-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

main57601-BZ021iF60#..SA,TH200608-200710

main57601-BZ023iF60#..SA,TH200711-201011

main57601-BZ024iF60#..SA,TH201011

main57601-BZ110iF60#..LHD..(GEN,MXC)200608-200710

main57601-BZ112iF60#..LHD..(GEN,MXC)200711-201011

main57601-BZ113iF60#..LHD..(GEN,MXC)201011

main57601-BZ190iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)200711-201011

main57601-BZ191iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)201011

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-BZ010iF601..4AT..MA;F601..5F..(IDN,MA)200312-200608

main57602-BZ011iF602..PHL;F601..E,G,J;F602..RHD..(GEN,IDN,MA)200608-200710

main57602-BZ012iF602..MA;F601..5F..MA200711

main57602-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

main57602-BZ021iF60#..SA,TH200608-200710

main57602-BZ023iF60#..SA,TH200711-201011

main57602-BZ024iF60#..SA,TH201011

main57602-BZ120iF60#..LHD..(GEN,MXC)200608-200710

main57602-BZ122iF60#..LHD..(GEN,MXC)200711-201011

main57602-BZ123iF60#..LHD..(GEN,MXC)201011

main57602-BZ200iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)200711-201011

main57602-BZ201iF602..PHL;F602..S..(GEN,IDN);F601..(E,G,J,XI)..(GEN,IDN,PHL)201011

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ010iF601200312-200608

main57606-BZ032iF602..MA200608

main57606-BZ080iF60#..LHD..(GEN,MXC)200608

main57606-BZ130iF602..PHL;F601..G..GEN;F601..IDN,PHL,SA;F602..RHD..(GEN,IDN,SA,TH)201011

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ010iF601..4AT..MA;F601..5F..(IDN,MA)200312-200608

main57608-BZ011iF602..E..MA;F601..5F..MA200608

main57608-BZ020iF601..5F..(BRU,TH)200404-200608

main57608-BZ021iF601..CTM,STD;F60#..(DLX,GL,J)..(GEN,MXC,TH)200608

main57608-BZ030iF601..4AT..(BRU,IDN,TH)200404-200608

main57608-BZ031iF602..G..GEN;F60#..(DLX,E,GL,S)..(SA,TH)200608

main57608-BZ041iF602..S..(GEN,IDN)200608-201104

main57608-BZ170iF602..IDN201105

INDONESIA 1.5G

main57608-BZ180iF602..PHL;F602..S..(GEN,IDN)201104

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-BZ010×2iF601200312-200608

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-BZ010iF601200312-200608

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57607-BZ010iF601200312-200608

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-BZ010iF601200312-200608

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-BZ010iF601200312-200608

57815REINFORCEMENT, BELT ANCHOR, NO.1

main57815-BZ021iF601..4AT200610-200911

57815AREINFORCEMENT, BELT ANCHOR, RH

main57807-BZ010iF601..IDN,MA,TH200312-200608

main57807-BZ011iF601..4AT200610-200911

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-BZ010×2iF60#..GEN,IDN,MXC,PHL,SA,TH200608-201103

main57841-BZ030×2iF60#..GEN,IDN,MXC,PHL,SA,TH201104-201110

main57841-BZ040×2iF60#..GEN,IDN,MXC,PHL,SA,TH201111

57881REINFORCEMENT, BELT ANCHOR, NO.3

main57881-BZ010iF601200312-200608

main57881-BZ011iF601..4AT200610-200911

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200608

main58307-BZ020iF602..MA;F601..5F..MA200609

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-BZ010iF601..CTM,J200610

main58308-BZ020iF602..PHL;F60#..RHD..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,SA,TH)200608-201103

main58308-BZ100iF601..DLX..GEN200608

main58308-BZ110iF602..LHD..(GEN,MXC)200610

main58308-BZ170iF602..PHL;F60#..RHD..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,SA,TH)201104

58311PAN, REAR FLOOR

main58311-BZ010iF601200312-200608

main58311-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH200608-200710

main58311-BZ041iF60#..GEN,IDN,MXC,PHL,SA,TH200711

main58311-BZ070iF601..4AT200609-200911

58375EREINFORCEMENT, BODY LOWER BACK PANEL

main58375-BZ010iF602..MA;F601..5F..MA200608

main58375-BZ100iF60#..GEN,IDN,MXC,PHL,SA,TH201104

58376DREINFORCEMENT, BODY LOWER BACK, LH

main58376-BZ010iF601200312-200608

main58376-BZ080iF60#..GEN,IDN,MXC,PHL,SA,TH201104

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

52571BZ010BRACKET, REAR BUMPER FILLER

main52571-BZ010

9165140614

main91651-40614

9165160612

main91651-60612

28 parts on this diagram · 2 diagrams in section
