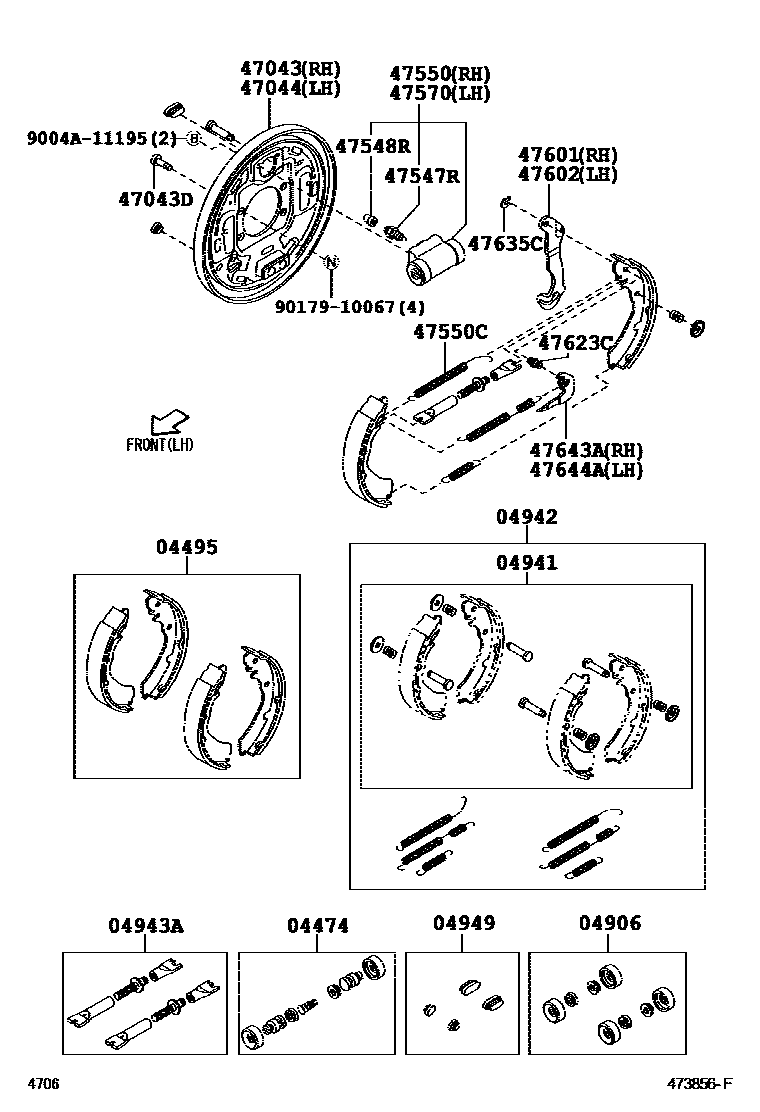

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-B1040×2iF601..4AT200608-200911

04495SHOE KIT, REAR BRAKE

main04495-BZ010iF601..4AT200608-200911

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B1040iF601..5F;F601..4AT..MA200312-200608

main04906-BZ020iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,MXC,SA,TH200608

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-BZ010iF601200312-200608

main04941-BZ050iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

04942SPRING KIT, REAR BRAKE

main04942-B1010iF601200312-200608

main04942-BZ060iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

04943ASTRUT KIT, REAR BRAKE

main04943-BZ010iF601..4AT200608-200911

main04943-BZ040iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

04949PLUG KIT, REAR BRAKE

main04949-BZ010iF601..4AT200608-200911

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ030iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200608-201110

main47043-BZ100iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-27010×8iF601..5F;F601..4AT..MA200312-200608

main42184-B0010×8iF601..4AT..(BRU,IDN,TH)200404-200608

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ030iF601200312-200608

main47044-BZ100iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ020×2iF601..CTM,E,G,J,STD;F60#..(DLX,GL,J)..(GEN,MXC,TH); F601..DLX..SA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MA,SA,TH)200608-200709

main47547-BZ120×2iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,PHL,SA,TH); F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)200710

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ020×2iF601..CTM,E,G,J,STD;F60#..(DLX,GL,J)..(GEN,MXC,TH); F601..DLX..SA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MA,SA,TH)200608-200710

main47548-BZ080iF601..4AT200710-200911

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-BZ010iF601..5F;F601..4AT..MA200312-200608

main47560-BZ010iF602..PHL200706

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47718-BZ010×2iF601200312-200608

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-BZ010iF601200312-200608

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-BZ010iF601200312-200608

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-BZ010iF601200312-200608

47623CPIN, PARKING BRAKE LEVER

main47623-BZ010×2iF601200312-200608

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ010×2iF601200312-200608

main47635-BZ030×2iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ010iF601200312-200608

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ010iF601200312-200608

9004A11195

main9004A-11195

9017910067

main90179-10067

23 parts on this diagram · 1 diagram in section
