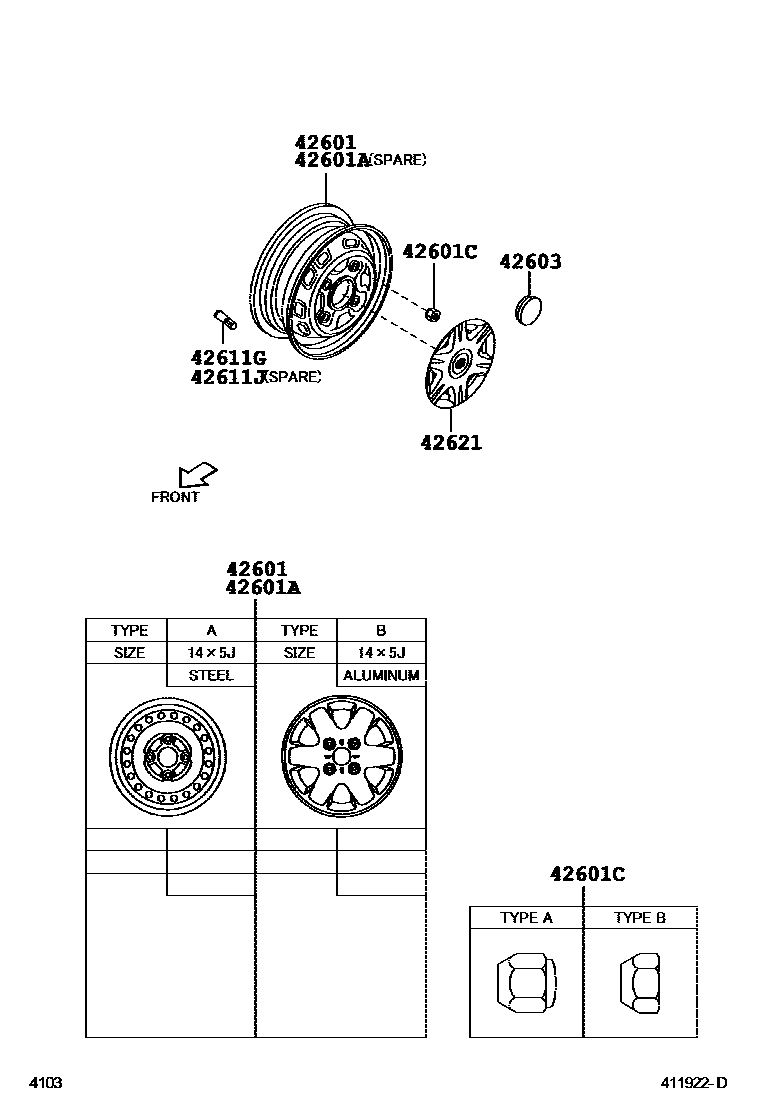

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-BZ020×4iF601..CTM200706

14X5J OFFSET 50,STEE,TYPE A INKOASKU

main42611-BZ030×4iF602..MXC;F601..5F..MA;F60#..(DLX,E,J,STD,XI)..(GEN,IDN,PHL,SA)200608

14X5J OFFSET 50,STEE,TYPE A INKOASKU

main42611-BZ040×4iF601..4AT..(E,GL);F601..(G,LIMD,S)..(IDN,TH)200312-200608

14X5J OFFSET 50,ALUM,TYPE B:REFER TO ILLUSTRATION,TYPE B TOPY

main42611-BZ160×4iF601..4AT200608-200911

14X5J OFFSET 50,ALUM,TYPE B EXCEL

main42611-BZ170×4iF602..(G,S)..(MA,PHL);F602..(E,GL,J,S)..(GEN,IDN,SA,TH)200608

15X5J,ALUMI,SILVER,TYPE C PAKO

42601AWHEEL, DISC (FOR SPARE)

main42611-BZ020iF601..(E,XI)..IDN201108

14X5J OFFSET 50,STEE,TYPE A INKOASKU

main42611-BZ030iF601..5F..MA;F601..DLX,G,J,STD;F602..(E,GL)..(MA,MXC);F602..(DLX,G)..(GEN,SA)200608

14X5J OFFSET 50,STEE,TYPE A INKOASKU

main42611-BZ170iF602..(G,S)..(MA,PHL);F602..(E,GL,J,S)..(GEN,IDN,SA,TH)200608

15X5J,ALUMI,SILVER,TYPE C PAKO

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iF601..5F..(E,GL)200312-200608

TYPE B

main90049-11063×16iF601..4AT200608-200911

TYPE A

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-BZ020×4iF601..PHL200810

*STE

main42638-BZ030×4iF601..G,LIMD,S;F601..4AT..(E,GL)200312-200503

*ALU

main42638-BZ070×4iF602..(G,S)..(MA,PHL);F602..(E,GL,J,S)..(GEN,IDN,SA,TH)200608

main42638-BZ130×4iF602..E..MA;F60#..G..(GEN,IDN)200608

*ALU

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200608

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iF601200312-200608

42621CAP, WHEEL

main42602-B0010×4iF601..5F..(E,GL)200312-200608

main42602-B0020×4iF601..5F..MA;F60#..(DLX,E,J,STD,XI)..(GEN,IDN,PHL,SA)200608

7 parts on this diagram · 5 diagrams in section
