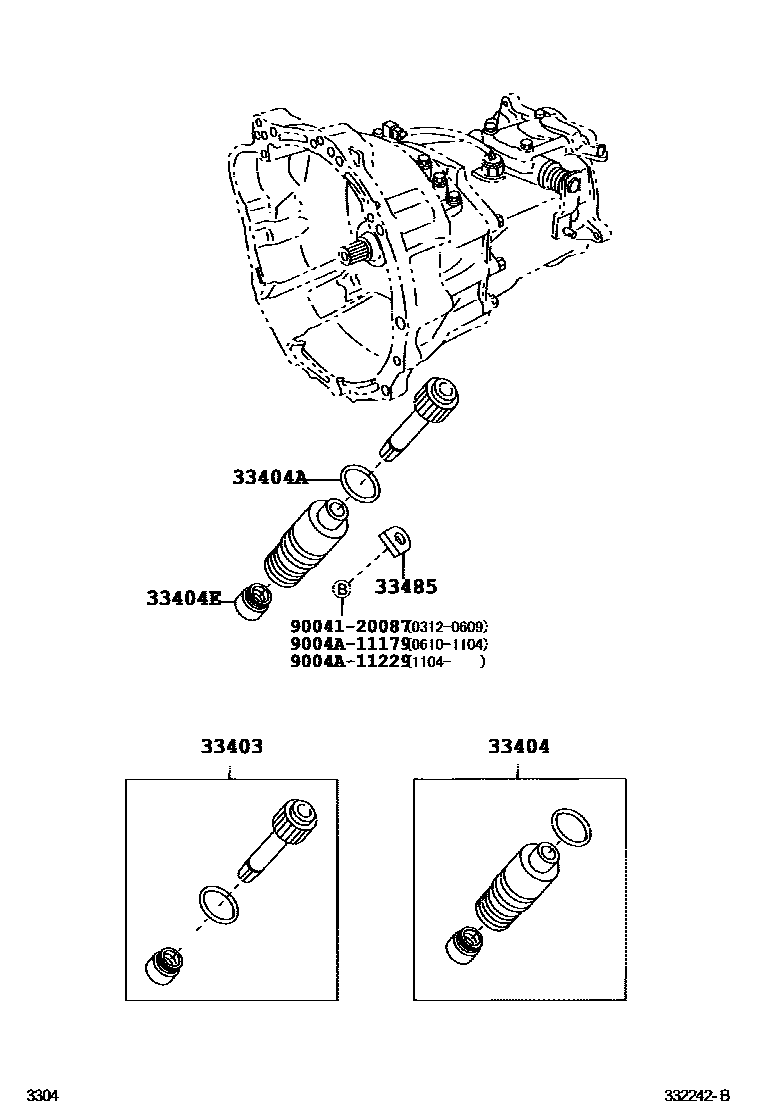

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-B9020iF601..GEN,IDN200608-200610

main33482-B9030iF601..5F..WVVT200405-200608

main33482-B9090iF602..5F..(SA,TH)200608-200610

main33482-B9120iF602..5F..MXC;F601..5F..(GEN,IDN)200610

main33482-B9130iF602..5F..(GEN,IDN);F601..5F..(MA,PHL,SA)200610

main33482-B9140iF602..5F..(PHL,SA,TH)200610

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-BZ010iF601..SA200609-200610

main33404-BZ020iF60#..5F200610

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main9004A-30014iF601..5F200312-200608

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main9004A-31016iF601..5F200312-200608

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-BZ010iF601..5F200312-200608

9004120087

main90041-20087

9004A11179

main9004A-11179

9004A11229

main9004A-11229

8 parts on this diagram · 1 diagram in section
