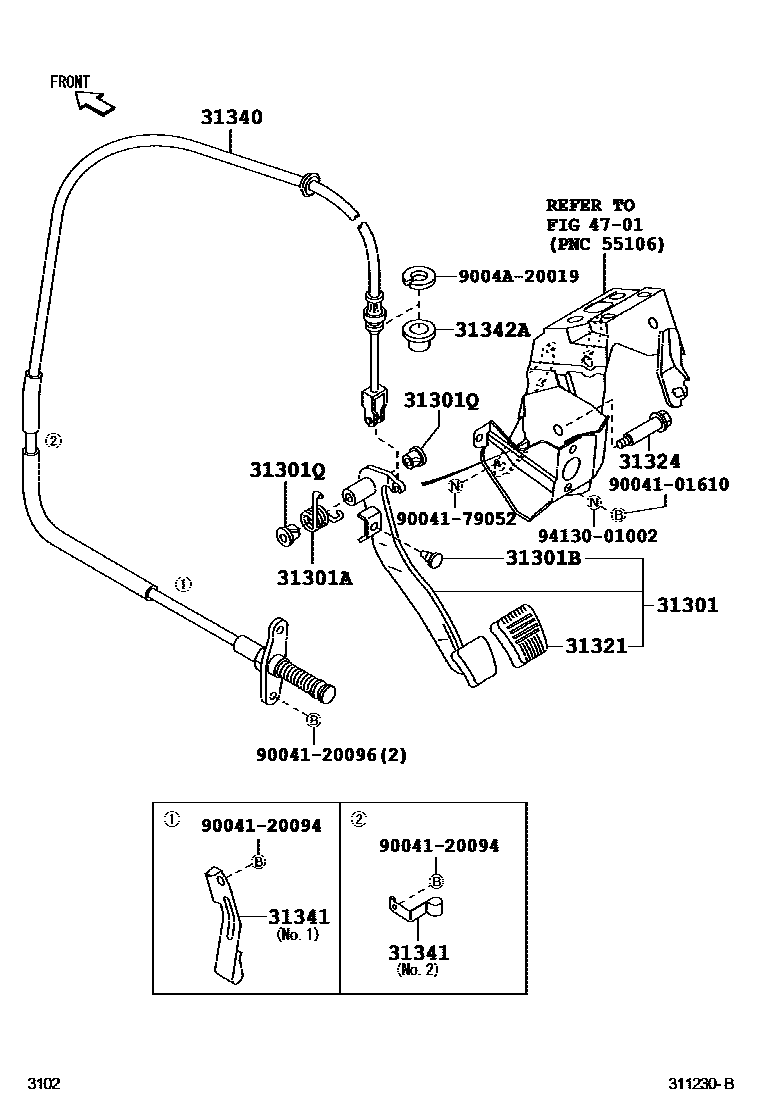

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1RHD WIRE 0003 1LHD WIRE 0004 1RHD HYDRO 0005 1RHD HYDRO 0006 1LHD HYDRO 0007 1LHD HYDRO

31301PEDAL SUB-ASSY, CLUTCH

main31310-BZ010iF601..RHD..5F200608

main31310-BZ050iF602..RHD..5F200608

main31310-BZ060iF601..LHD200608

main31310-BZ070iF602..LHD..5F200610

31301ASPRING(FOR CLUTCH PEDAL)

main9004A-50039iF601..5F200312-200608

main9004A-50083iF602..RHD..5F200608

main9004A-50084iF601..LHD200608

main9004A-50085iF602..LHD..5F200610

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main9004A-54003iF601..5F200312-200608

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main9004A-38021×2iF60#..5F200608

31321PAD, CLUTCH PEDAL

main31321-BZ010iF60#..5F200608

31324SHAFT, CLUTCH PEDAL

main31324-B0010iF601..RHD..5F200608

main31324-BZ050iF602..RHD..5F201102

main90041-05397iF602..RHD..5F200608-201101

main90041-05398iF60#..LHD..5F200608

31340CABLE ASSY, CLUTCH RELEASE

main31340-BZ020iF601..5F200312-200608

main31340-BZ050iF601..LHD200608

31341BRACKET, CLUTCH CABLE

main31341-BZ020iF601..5F200312-200608

NO.2

main31341-BZ040iF601..5F200312-200608

NO.1

main31341-BZ090iF601..5F200608

NO.1

main31341-BZ100iF601..LHD200608

NO.2

main31341-BZ110iF601..LHD200608

NO.3

main31341-BZ120iF601..LHD200608

NO.4

31342ABUSH(FOR CLUTCH RELEASE CABLE)

main90043-85162iF601..5F200312-200608

main9004A-38070iF601..5F..(GEN,IDN,PHL,SA)200901

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

9004101610

main90041-01610

9004120094

main90041-20094

9004120096

main90041-20096

9004179052

main90041-79052

9004A20019

main9004A-20019

9413001002

main94130-01002

16 parts on this diagram · 7 diagrams in section
