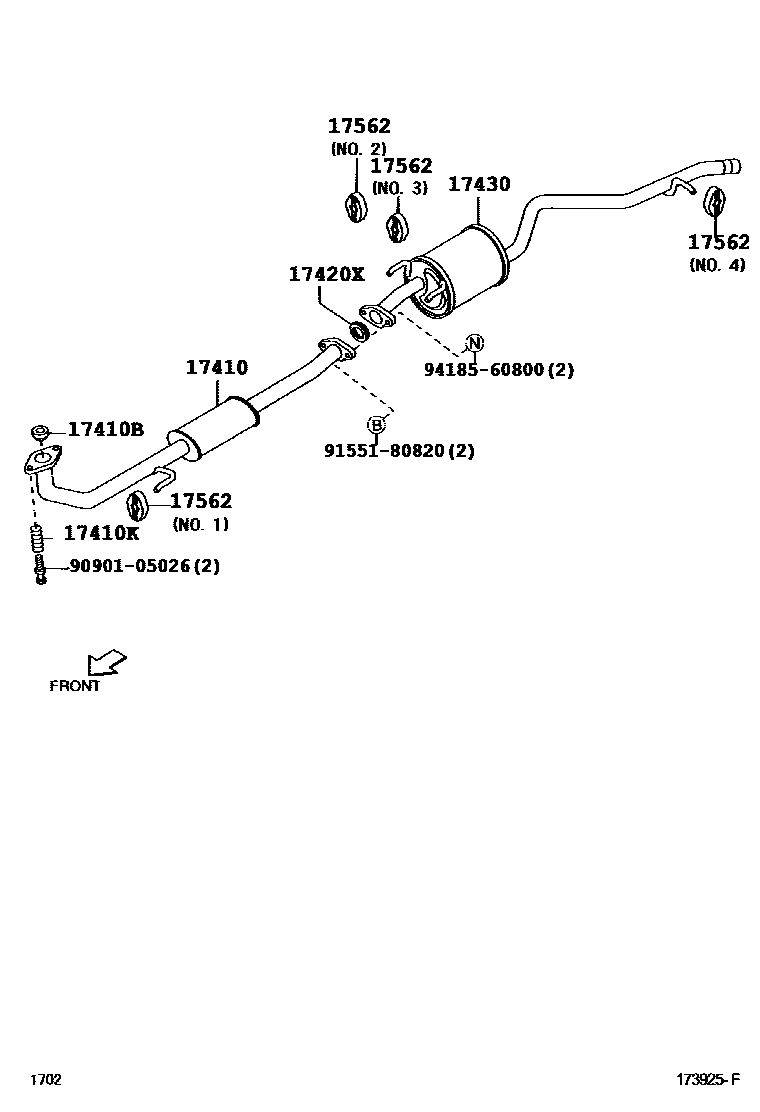

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17410KSPRING, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17562SUPPORT, EXHAUST PIPE, NO.2
NO.1
NO.2
NO.1
NO.1
NO.1
9090105026
main90901-05026
9155180820
main91551-80820
9418560800
main94185-60800
9 parts on this diagram · 4 diagrams in section
