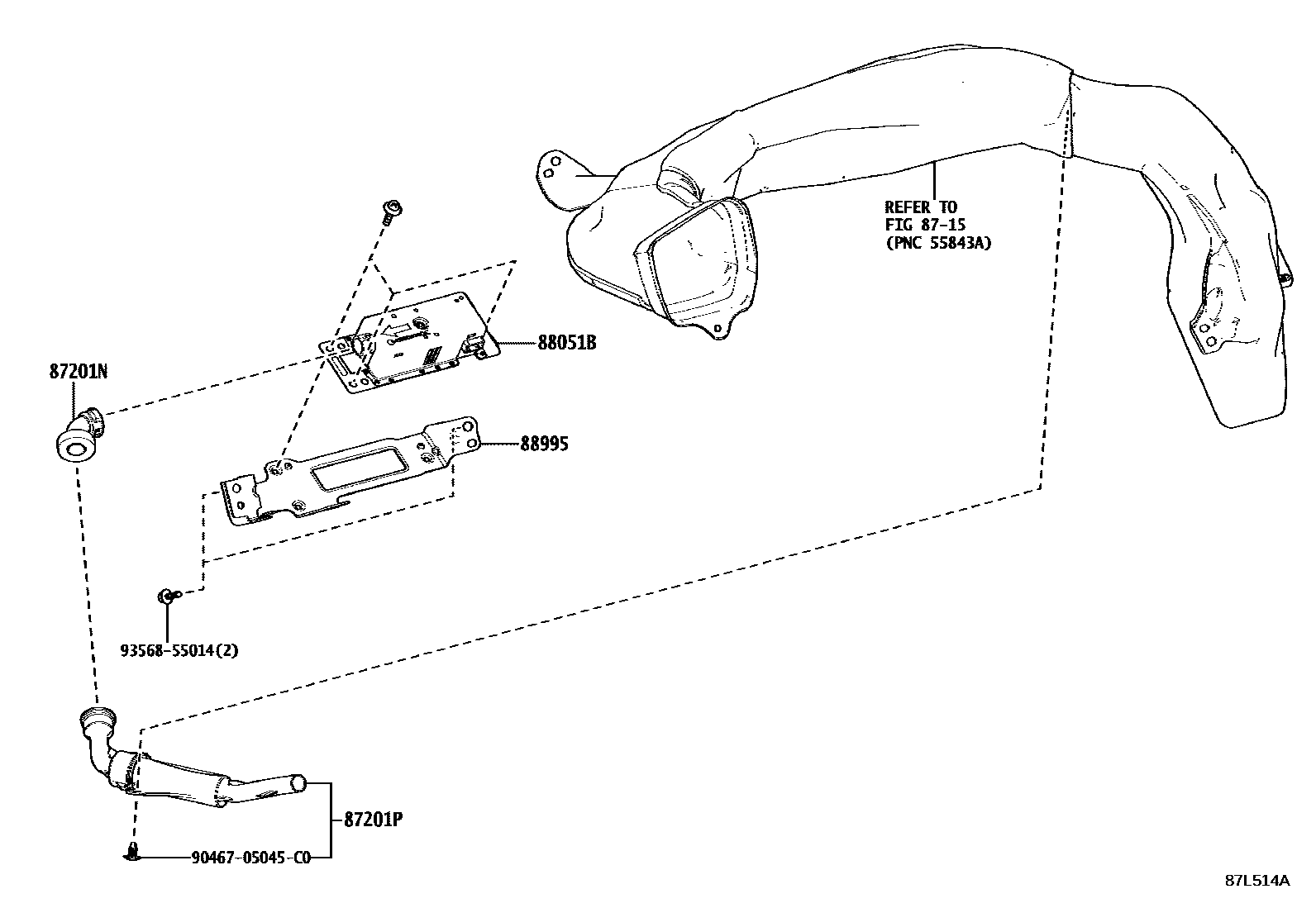

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-12030iXEBM15202301-202311

KOREA SPEC

87201PDUCT SUB-ASSY, AIR ,NO.2

main55846-46010iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-46010iXEBM15202301-202305

KOREA SPEC

main88051-46020iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

88995BRACKET,ION GENERATOR, NO.1

main88995-46010iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

9046705045C0

main90467-05045C0

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
