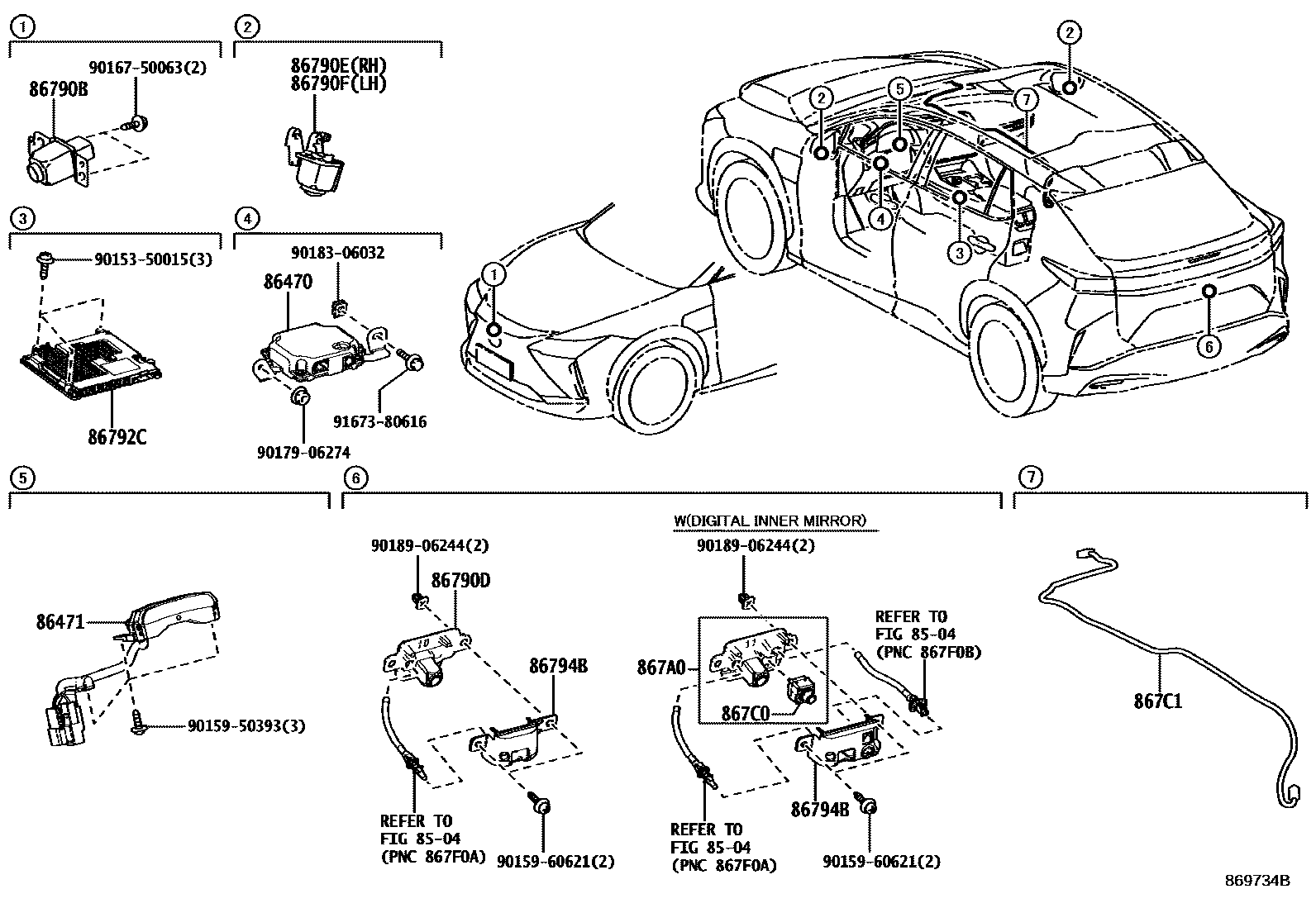

CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-46010

86471CAMERA, DRIVER MONITOR

main86471-46010i202301-202307

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&STEERING COLUMN-POWER(STEER BY WIRE),WITH(LOCK)

86790BCAMERA ASSY, TELEVISION, FR

main86790-46060i202311

BASE PACKAGE&STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

86790DCAMERA ASSY, TELEVISION, RR

main86790-46020i202301-202311

main867B0-46010i202311-202410

BASE PACKAGE&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&PERIPHERAL MONITOR CAMERA-WITH

main867B0-46030i202311-202410

PERIPHERAL MONITOR CAMERA-WITH

main867B0-46040i202301-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)&BACK MONITOR-WITH

main867B0-46050i202301-202311

BASE PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78080i202301-202311

BACK MONITOR-WITH

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78070i202311

BASE PACKAGE&STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)&PERIPHERAL MONITOR CAMERA-WITH

86792CCOMPUTER, PARKING ASSIST

main86792-46080i202301-202311

BACK MONITOR-WITH

main86792-46170i202311

BASE PACKAGE&STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

86794BCOVER, TELEVISION CAMERA

main86794-46020supersedes 86794-46010i202311-202410

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main86794-46030i202311-202410

PERIPHERAL MONITOR CAMERA-WITH

main86794-46040i202311-202410

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)&PERIPHERAL MONITOR CAMERA-WITH

main86794-46050i202410

BASE PACKAGE&STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-46030i202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

867C0CAMERA ASSY, INNER MIRROR

main867C0-46010i202301-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

867C1WIRE, MIRROR CAMERA

main867C1-46010i202301-202311

MOON ROOF-WITHOUT&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

9015350015

main90153-50015

9015950393

main90159-50393

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018306032

main90183-06032

9018906244

main90189-06244

9167380616

main91673-80616

20 parts on this diagram · 1 diagram in section
