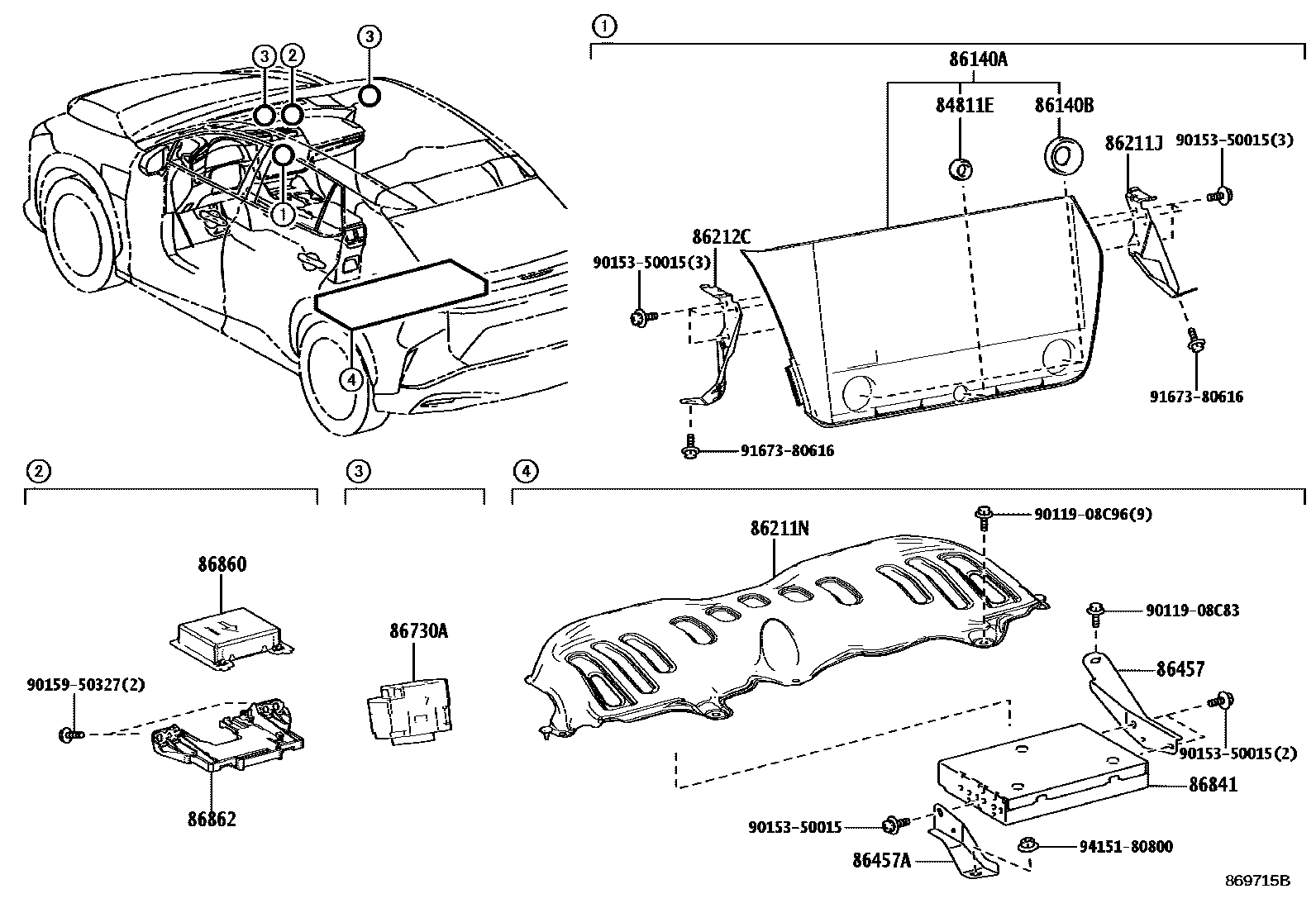

NAVIGATION & FRONT MONITOR DISPLAY

84811EKNOB, SWITCH

main90010-24204iXEBM1#202311

main90010-23061supersedes 90010-24204iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-46030iXEBM1#202311

PANASONIC

main86100-46040supersedes 86100-46030iXEBM15202301-202311

PANASONIC,CANADA SPEC

main86100-46110supersedes 86100-46030iXEBM15202301-202311

DENSO TEN,KOREA SPEC

main86100-46390supersedes 86100-46030iXEBM15202311

DENSO TEN,DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24205×2iXEBM1#202311

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-46060iXEBM1#202311

86211NBRACKET, NAVIGATION COMPUTER, NO.1

main86247-42080iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-46060iXEBM1#202311

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-42090iXEBM15202301-202311

KOREA SPEC

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-42100iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iXEBM1#202311

86841COMPUTER, NAVIGATION

main86840-78040iXEBM15202301-202311

KOREA SPEC

86860ANTENNA ASSY, NAVIGATION

main86880-42010iXEBM1#202311

main86880-42030supersedes 86880-42010iXEBM15202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

86862BRACKET, NAVIGATION ANTENNA

main86862-48060iXEBM1#202311

9011908C83

main90119-08C83

9011908C96

main90119-08C96

9015350015

main90153-50015

9015950327

main90159-50327

9167380616

main91673-80616

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
