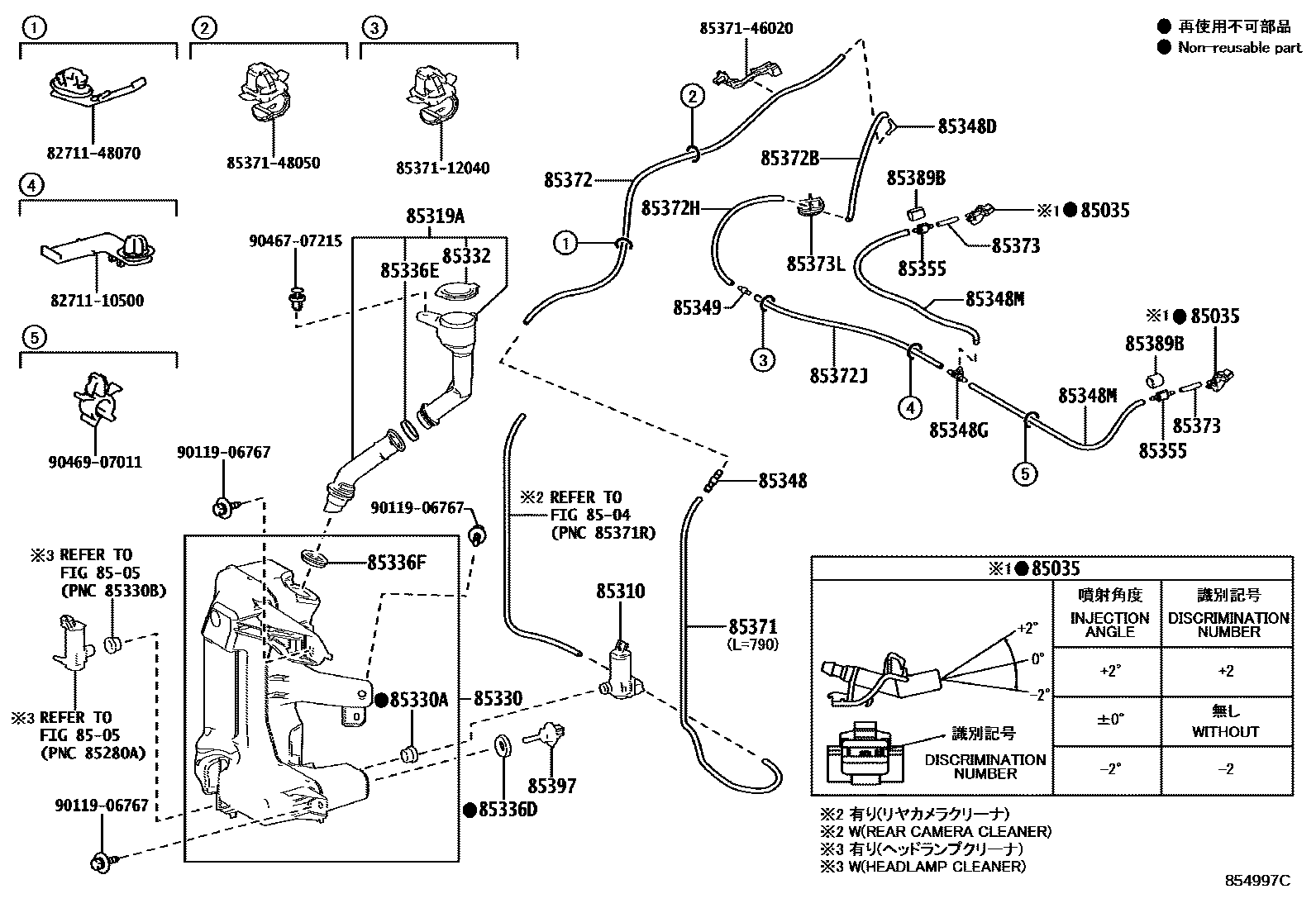

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-78030×2i202311

ANGLE 0

main85381-78040×2i202301-202311

ANGLE -2

main85381-78050×2i202301-202311

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202301-202311

main85330-33070i202301-202311

BASE PACKAGE&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)

85319AHOSE, INLET

main85301-46010i202301-202311

85330JAR ASSY, WINDSHIELD WASHER

main85355-42211supersedes 85315-42530i202311

BASE PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA); COLD AREA SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202311

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202301-202311

85336DPACKING, WINDSHIELD WASHER JAR

main85319-33230i202311

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202311

85336FPACKING, WINDSHIELD WASHER JAR

main85336-30160i202311

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202311

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-52210i202301-202311

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-33410i202301-202311

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main90099-33080×2i202311

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202311

85355VALVE, WINDSHIELD WASHER HOSE

main85321-26020×2i202301-202311

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i202301-202311

BASE PACKAGE&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA); BASE PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA); COLD AREA SPEC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202311

L=1450(*H,L=980)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202311

L=1450(*H,L=280)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i202311

L=1450(*H,L=360)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i202311

L=1450(*H,L=410)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202311

L=1450(*H,L=60)

85373LGROMMET, WASHER

main85373-12050i202311

85389BPROTECTOR, WINDSHIELD WASHER

main85389-26080×2i202311

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202311

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48070

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8537146020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-46020

8537148050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-48050

9011906767

main90119-06767

9046707215

main90467-07215

9046907011

main90469-07011

34 parts on this diagram · 1 diagram in section
