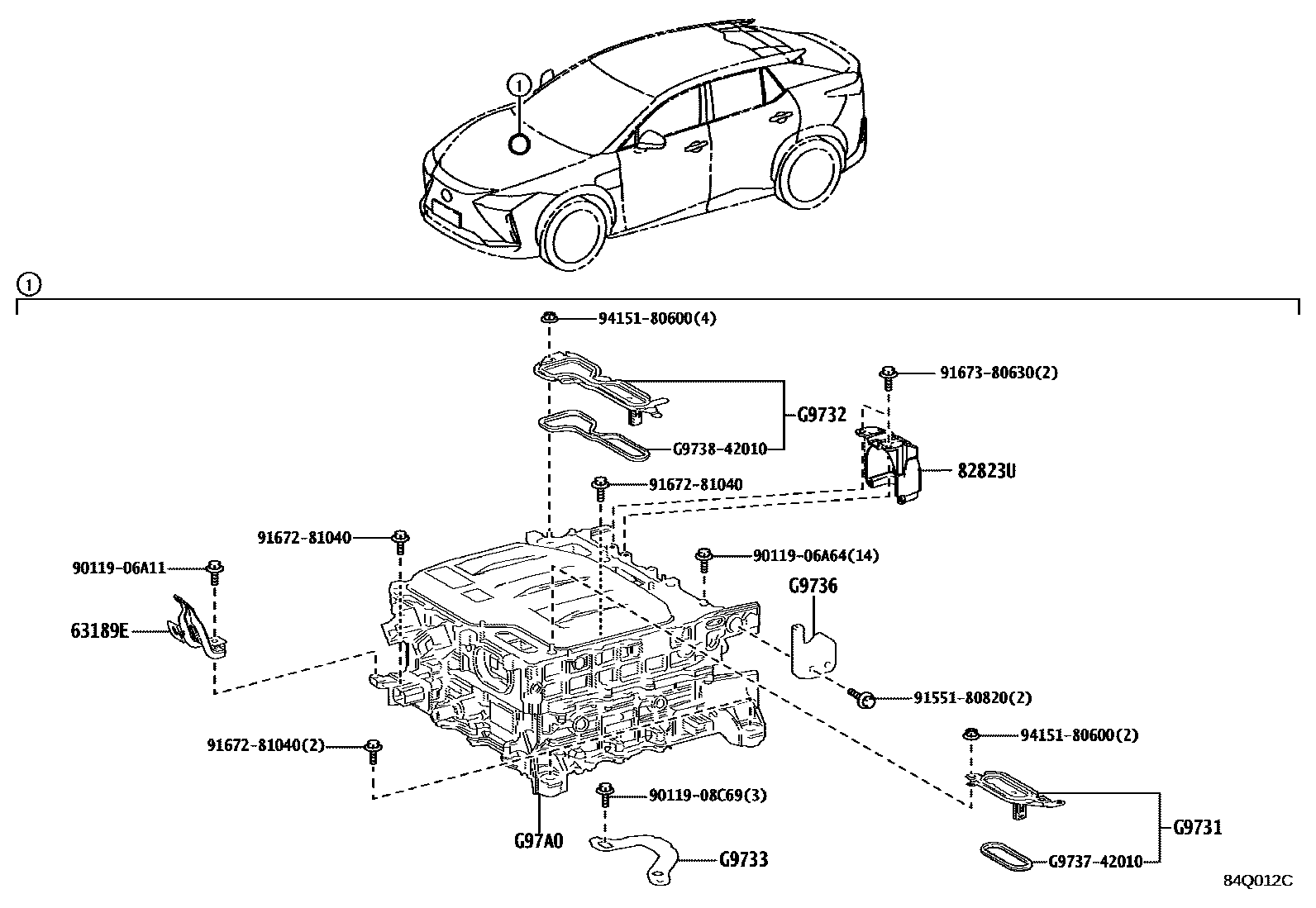

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1 0003 1CHARGE CABLE

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42020iXEBM15202301-202311

82823UCAP, TERMINAL

main82823-42080iXEBM10202311

G9731COVER, TERMINAL, NO.1

mainG973142010iXEBM15202301-202311

G9732COVER, TERMINAL, NO.2

mainG973242011iXEBM15202301-202311

mainG973242012iXEBM1#202311

G9733BRACKET, EARTH

mainG973342010iXEBM15202301-202311

G9736PROTECTOR, CONNECTOR, NO.3

mainG973642010iXEBM15202301-202311

G97A0UNIT ASSY, ELECTRIC CONVERTER W/CAP

mainG97A042101iXEBM15202307-202311

mainG97A042150iXEBM1#202311-202404

mainG97A042151iXEBM1#202405

mainG97A046080iXEBM15202301-202307

9011906A11

main90119-06A11

9011906A64

main90119-06A64

9011908C69

main90119-08C69

9155180820

main91551-80820

9167281040

main91672-81040

9167380630

main91673-80630

9415180600

main94151-80600

G973742010GASKET, TERMINAL COVER, NO.1

mainG9737-42010

G973842010GASKET, TERMINAL COVER, NO.2

mainG9738-42010

16 parts on this diagram · 3 diagrams in section
