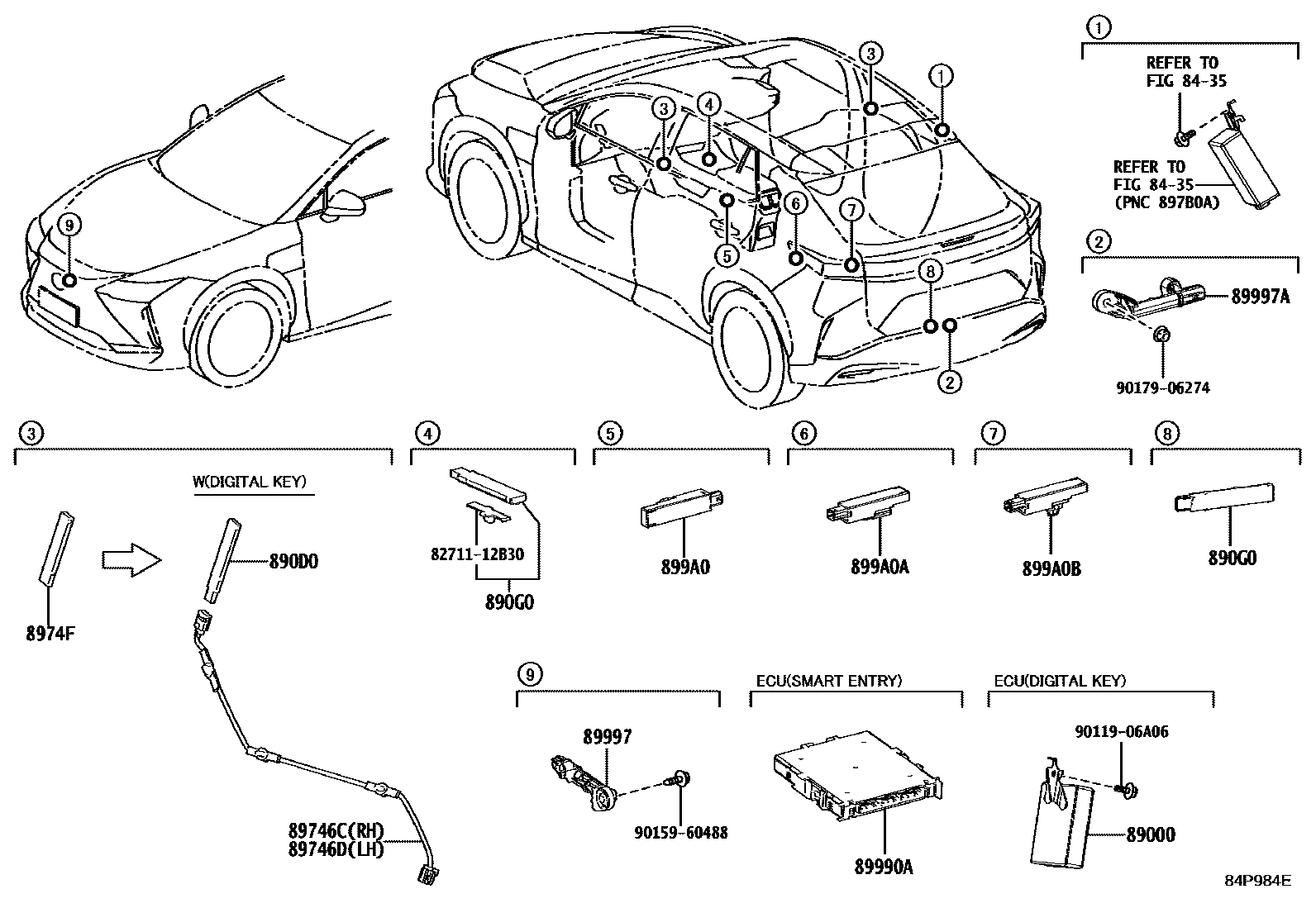

WIRELESS DOOR LOCK
8435TIRE PRESSURE WARNING SYSTEM
89000COMPUTER ASSY, DIGITAL KEY
KEY PLATE-WITH(CARD KEY & DIGITAL KEY); KEY PLATE-WITH(DIGITAL KEY)
KEY PLATE-WITH(CARD KEY & DIGITAL KEY); KEY PLATE-WITH(DIGITAL KEY)
KEY PLATE (SMART KEY)-WITH(CARD KEY & DIGITAL KEY); KEY PLATE (SMART KEY)-WITH(DIGITAL KEY)
890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY
KEY PLATE (SMART KEY)-WITH(CARD KEY & DIGITAL KEY); KEY PLATE (SMART KEY)-WITH(DIGITAL KEY)
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
KEY PLATE (SMART KEY)-WITH(CARD KEY & DIGITAL KEY); KEY PLATE (SMART KEY)-WITH(DIGITAL KEY)
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
KEY PLATE (SMART KEY)-WITH(CARD KEY & DIGITAL KEY); KEY PLATE (SMART KEY)-WITH(DIGITAL KEY)
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
KEY PLATE-WITH(CARD KEY & DIGITAL KEY); KEY PLATE-WITH(DIGITAL KEY)
8974FCASE, W/O DIGITAL KEY
89990ACOMPUTER ASSY, SMART KEY
89997ANTENNA, ELECTRICAL KEY
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
89997AANTENNA, ELECTRICAL KEY, NO.2
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
9011906A06
main90119-06A06
9015960488
main90159-60488
9017906274
main90179-06274
17 parts on this diagram · 1 diagram in section
