CRUISE CONTROL (AUTO DRIVE)

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-46040iXEBM1#202311

main88210-46050supersedes 88210-46040iXEBM15202301-202311

CANADA SPEC&BRAND SYMBOL MARK-LEXUS,WITH(HEATER)

88215BBRACKET, FRONT SIDE RADAR SENSOR, RH

main88215-46010iXEBM1#..L; XEBM15..L202410

LANE KEEPING SYSTEM- WITH(DES); LANE KEEPING SYSTEM-WITH

88215CBRACKET, FRONT SIDE RADAR SENSOR, LH

main88215-46020iXEBM1#..L; XEBM15..L202410

LANE KEEPING SYSTEM- WITH(DES); LANE KEEPING SYSTEM-WITH

882B1SENSOR, FRONT SIDE RADAR

main882B1-30030×2iXEBM1#202311-202402

LANE KEEPING SYSTEM- WITH(DES & TOUCH & L2PT)

main882B1-30031×2iXEBM1#..L202403-202410

LANE KEEPING SYSTEM- WITH(DES & TOUCH & L2PT)

main882B1-48030×2iXEBM15202301-202310

LANE KEEPING SYSTEM- WITH(DES & TOUCH & L2PT),MARK 882B1-48010

main882B1-48031×2iXEBM15202310-202311

LANE KEEPING SYSTEM- WITH(DES & TOUCH & L2PT),MARK 882B1-48011

9011906932

main90119-06932

9015960621

main90159-60621

9018906238

main90189-06238

9046709232

main90467-09232

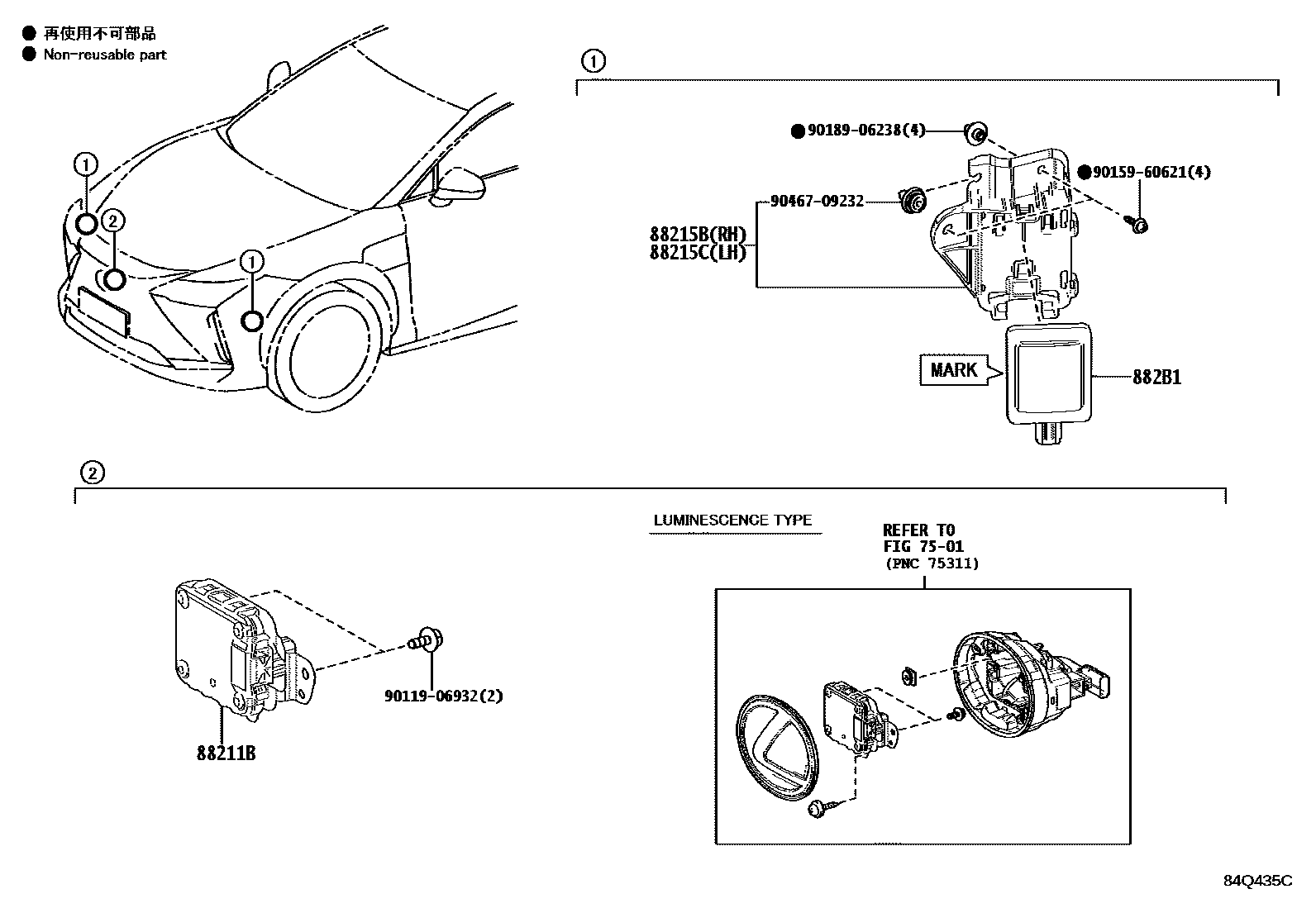

9 parts on this diagram · 1 diagram in section
