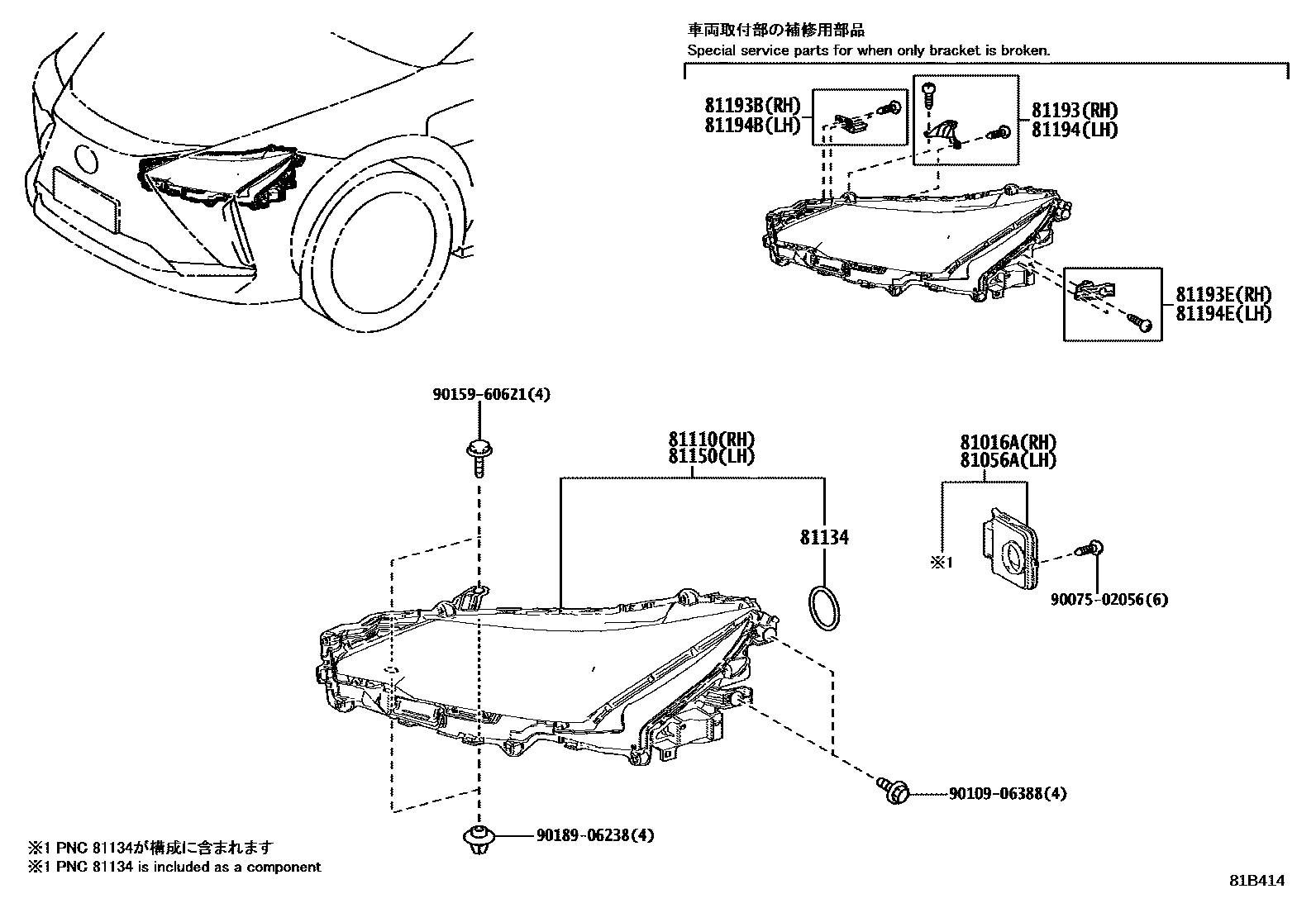

HEADLAMP

0001 1 0002 1KOREA SPEC

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-46110iXEBM1#202311

main81016-46090iXEBM15..C202301-202311

KOREA SPEC

main81016-46100iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main81016-46120iXEBM15..L202301-202311

CANADA SPEC

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-46110iXEBM1#202311

main81056-46090iXEBM15..C202301-202311

KOREA SPEC

main81056-46100iXEBM15..L202301-202311

KOREA SPEC

main81056-46120iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-CANADA SPEC

81110HEADLAMP ASSY, RH

main81145-46110iXEBM1#202311

main81145-46070iXEBM15..C202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main81145-46080iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main81145-46120iXEBM15..L202301-202311

CANADA SPEC

81134GASKET, HEADLAMP

main90075-23003×4iXEBM1#202311

81150HEADLAMP ASSY, LH

main81185-46110iXEBM1#202311

main81185-46070iXEBM15..C202301-202311

KOREA SPEC

main81185-46080iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main81185-46120iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-CANADA SPEC

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-46030iXEBM1#202311

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-46040iXEBM15202301-202311

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-46050iXEBM1#202311

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-46030iXEBM1#202311

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-46040iXEBM1#202311

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-46050iXEBM15202301-202311

9007502056

main90075-02056

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

15 parts on this diagram · 2 diagrams in section
