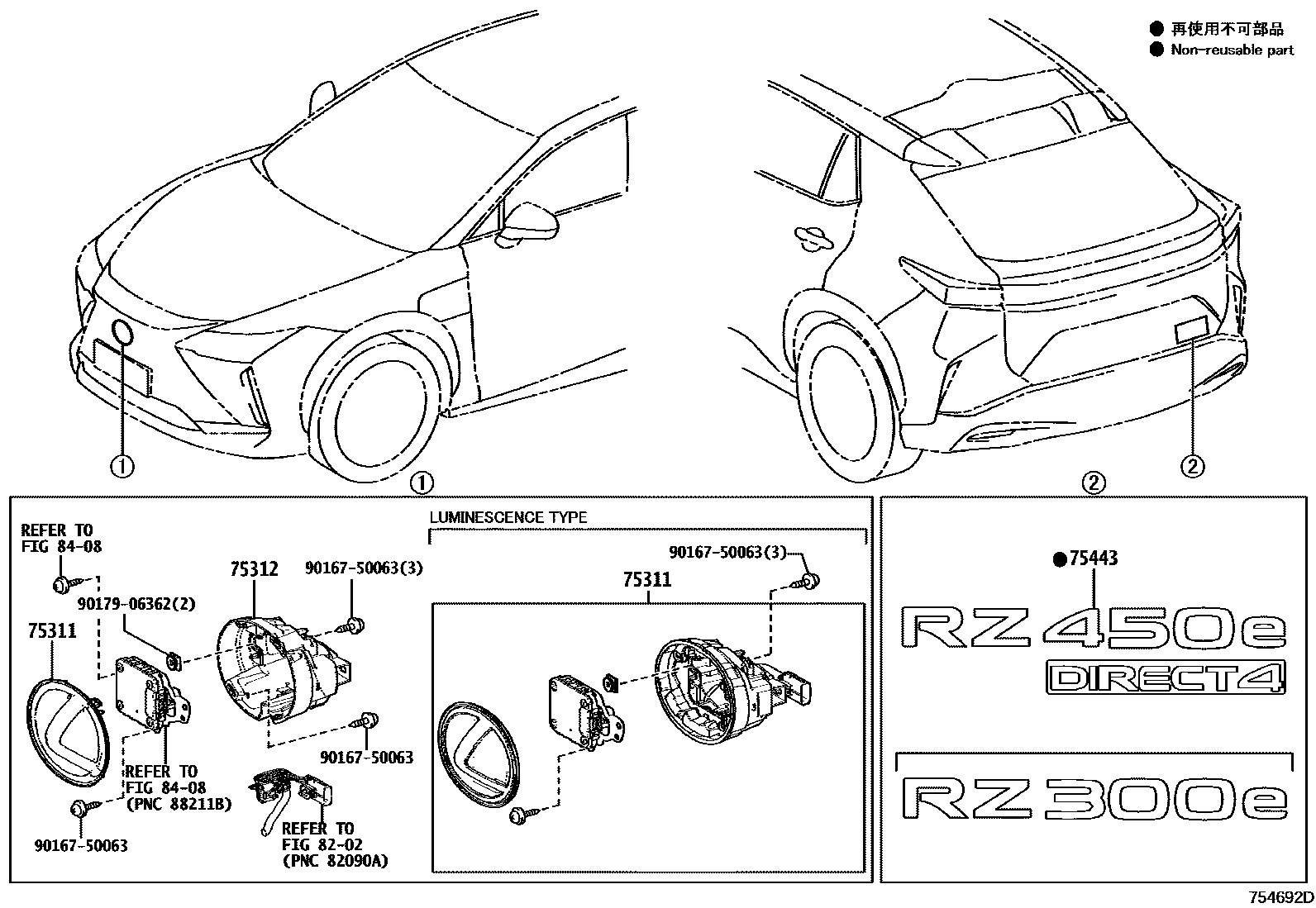

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75403-46020supersedes 90975-02171iXEBM15202301-202311

BRAND SYMBOL MARK-LEXUS,WITH(LUMINESCENCE)

main75403-46040supersedes 90975-02171iXEBM15202301-202311

CANADA SPEC&BRAND SYMBOL MARK-LEXUS,WITH(LUMINESCENCE & HEATER)

main90975-02202supersedes 90975-02171iXEBM15202301-202311

CANADA SPEC&BRAND SYMBOL MARK-LEXUS,WITH(HEATER)

75312BASE, RADIATOR GRILLE EMBLEM

main75312-46010iXEBM15202301-202311

75443PLATE, BACK DOOR NAME, NO.3

main75443-46010iXEBM15202311

RZ450E DIRECT4

main75443-46020iXEBM10202311

RZ300E

8202WIRING & CLAMP

→ Go to FIG 82-02

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9016750063

main90167-50063

9017906362

main90179-06362

7 parts on this diagram · 1 diagram in section
