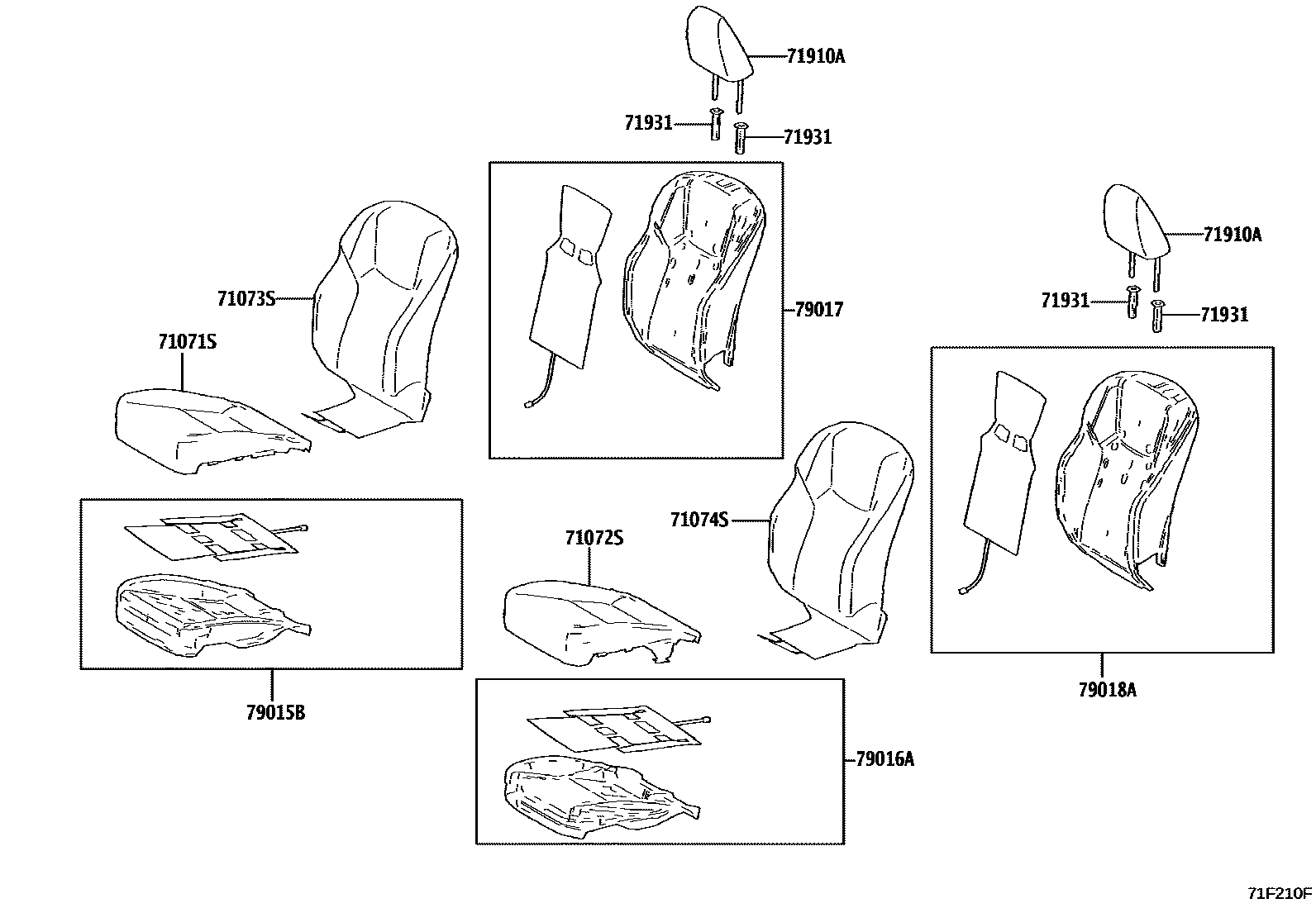

FRONT SEAT & SEAT TRACK

0001 1SEAT COVER & PAD 0002 1DRIVER SIDE 0003 1PASSENGER SIDE 0004 1FITTING PARTS

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-46290-B1iXEBM1#..L202311

DK.GRAY,TRIM1#

main71071-46290-E1iXEBM15..L202301-202311

HAZEL,TRIM4#

main71071-46290-J1iXEBM15..L202301-202311

ORAGE,TRIM8#

main71071-46260-B1supersedes 71071-46271-B2iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),DK.GRAY,TRIM1#

main71071-46260-E1supersedes 71071-46271-E2iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),HAZEL,TRIM4#

main71071-46260-J2supersedes 71071-46271-J3iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),ORAGE,TRIM8#

main71071-46261-B2supersedes 71071-46271-B2iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),DK.GRAY,TRIM1#

main71071-46261-E2supersedes 71071-46271-E2iXEBM15..C202309-202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),HAZEL,TRIM4#

main71071-46261-J3supersedes 71071-46271-J3iXEBM15..C202309-202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),ORAGE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-46340-B1iXEBM15..L202301-202311

DK.GRAY,TRIM1#

main71072-46340-E1iXEBM1#..L202311

HAZEL,TRIM4#

main71072-46340-J1iXEBM1#..L202311

ORAGE,TRIM8#

main71072-46310-B1supersedes 71072-46321-B2iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),DK.GRAY,TRIM1#

main71072-46310-E1supersedes 71072-46321-E2iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),HAZEL,TRIM4#

main71072-46310-J2supersedes 71072-46321-J3iXEBM15..C202301-202309

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),ORAGE,TRIM8#

main71072-46311-B2supersedes 71072-46321-B2iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),DK.GRAY,TRIM1#

main71072-46311-E2supersedes 71072-46321-E2iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),HAZEL,TRIM4#

main71072-46311-J3supersedes 71072-46321-J3iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE),ORAGE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-46380-B1iXEBM15..C202301-202311

DK.GRAY,TRIM1#

main71073-46380-E1iXEBM15..C202301-202311

HAZEL,TRIM4#

main71073-46380-J2iXEBM15..C202301-202311

ORAGE,TRIM8#

main71073-46410-B1iXEBM1#..L202311

DK.GRAY,TRIM1#

main71073-46410-E1iXEBM1#..L202311

HAZEL,TRIM4#

main71073-46410-J1iXEBM1#..L202311

ORAGE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-46240-B1iXEBM1#..C202311

DK.GRAY,TRIM1#

main71074-46240-E1iXEBM1#..C202311

HAZEL,TRIM4#

main71074-46240-J2iXEBM1#..C202311

ORAGE,TRIM8#

main71074-46270-B1iXEBM1#..L202311

DK.GRAY,TRIM1#

main71074-46270-E1iXEBM1#..L202311

HAZEL,TRIM4#

main71074-46270-J1iXEBM1#..L202311

ORAGE,TRIM8#

main71074-46260-B2supersedes 71074-46240-B1iXEBM15..C202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC,DK.GRAY,TRIM1#

main71074-46260-E2supersedes 71074-46240-E1iXEBM15..C202301-202311

KOREA SPEC,HAZEL,TRIM4#

main71074-46260-J3supersedes 71074-46240-J2iXEBM15..C202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC,ORAGE,TRIM8#

main71074-46280-B2supersedes 71074-46270-B1iXEBM15..L202301-202311

KOREA SPEC,DK.GRAY,TRIM1#

main71074-46280-E2supersedes 71074-46270-E1iXEBM15..L202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC,HAZEL,TRIM4#

main71074-46280-J2supersedes 71074-46270-J1iXEBM15..L202301-202311

KOREA SPEC,ORAGE,TRIM8#

71910AHEADREST ASSY, FRONT SEAT

main71910-46200-B0×2iXEBM1#..C202311

DK.GRAY,TRIM1#

main71910-46200-E0×2iXEBM15..C202301-202311

HAZEL,TRIM4#

main71910-46200-J0×2iXEBM1#..C202311

ORAGE,TRIM8#

main71910-46210-B0×2iXEBM15..L202301-202311

DK.GRAY,TRIM1#

main71910-46210-E0×2iXEBM1#..L202311

HAZEL,TRIM4#

main71910-46210-J0×2iXEBM15..L202301-202311

ORAGE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2iXEBM1#202311

W(LOCK),BLACK,TRIM1#,4#,8#

main71931-47030-C4×2iXEBM1#202311

W/O(LOCK),BLACK,TRIM1#,4#,8#

79015BPAD SUB-ASSY, NO.1 SEAT CUSHION, RH

main79015-46050iXEBM15202301-202311

main79015-46030iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE)

79016APAD SUB-ASSY, NO.1 SEAT CUSHION, LH

main79016-46050iXEBM1#202311

main79016-46030iXEBM15..C202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE)

79017PAD SUB-ASSY, NO.1 SEATBACK, RH

main79017-46030iXEBM15202301-202311

main79017-46010iXEBM15..C202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE)

79018APAD SUB-ASSY, NO.1 SEATBACK, LH

main79018-46030iXEBM1#202311

main79018-46010iXEBM1#..C202311

FRONT SEAT SLIDE-*PSE & WITH(SLIDE SENSOR = DRIVER SIDE)

10 parts on this diagram · 4 diagrams in section
