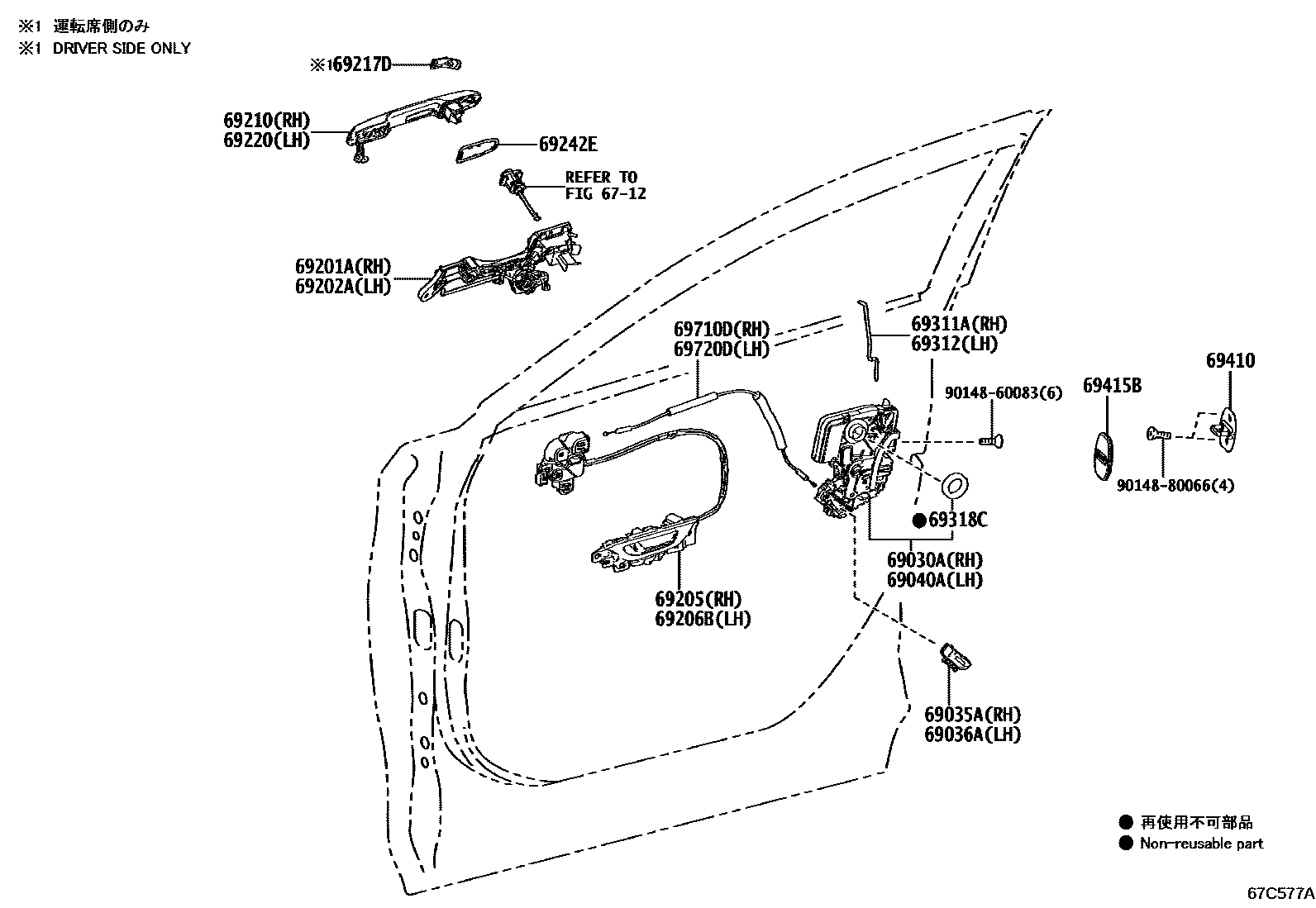

FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
9014860083
main90148-60083
9014880066
main90148-80066
22 parts on this diagram · 1 diagram in section
