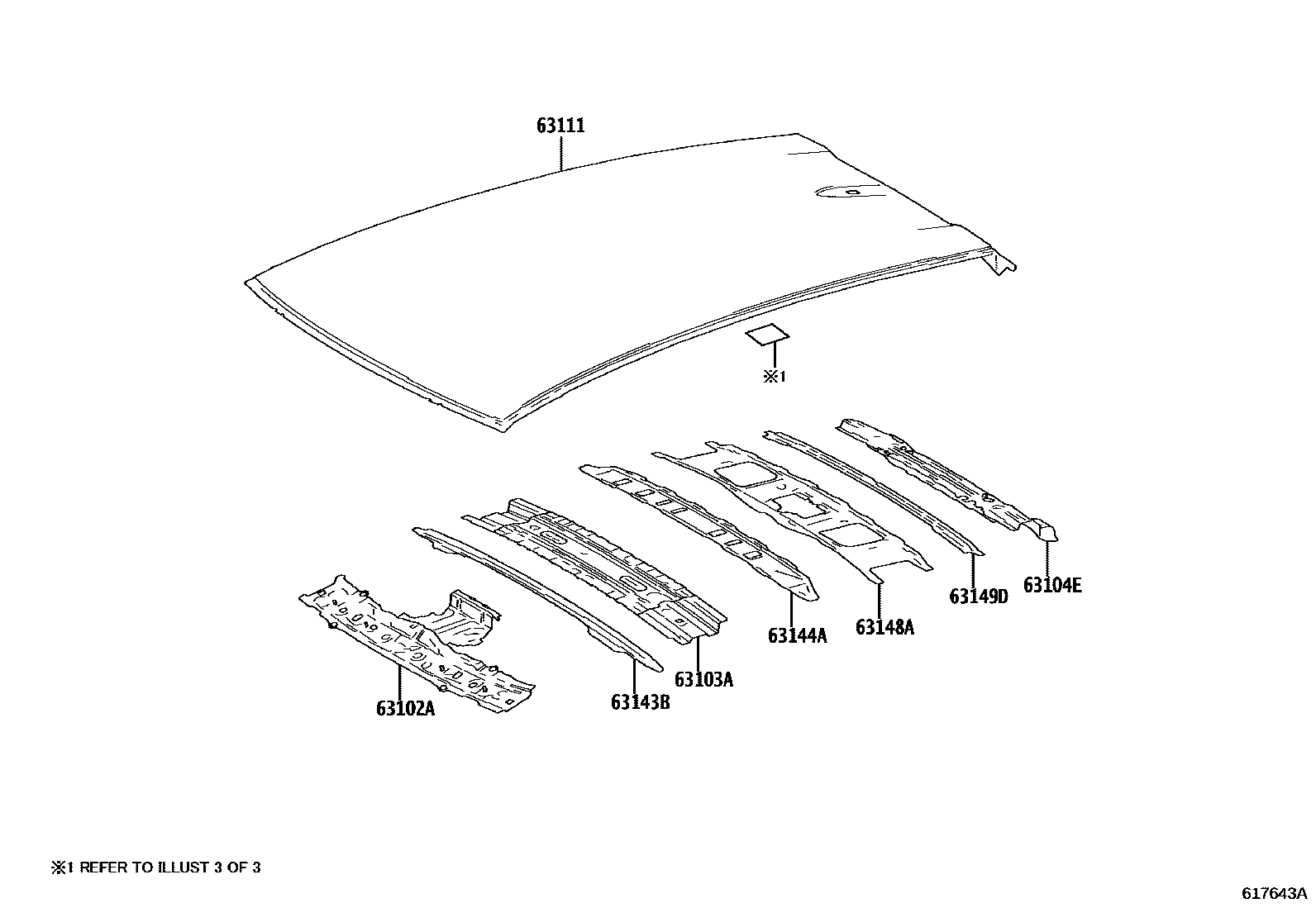

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1ROOF PANEL(DIMMING PANORAMA R0004 1ROOF RAIL 0005 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-46040iXEBM1#202311

main63102-46901iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-46040iXEBM1#202311

main63103-78050iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-46901iXEBM1#202311

63111PANEL, ROOF

main63111-46060iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD

main63111-46070iXEBM1#..C202311

ROOF TYPE-STANDARD

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-46030iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-46030iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-46020iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-46010iXEBM1#..C202311

ROOF RAIL-WITH&ROOF TYPE-STANDARD; ROOF TYPE-STANDARD

8 parts on this diagram · 5 diagrams in section
