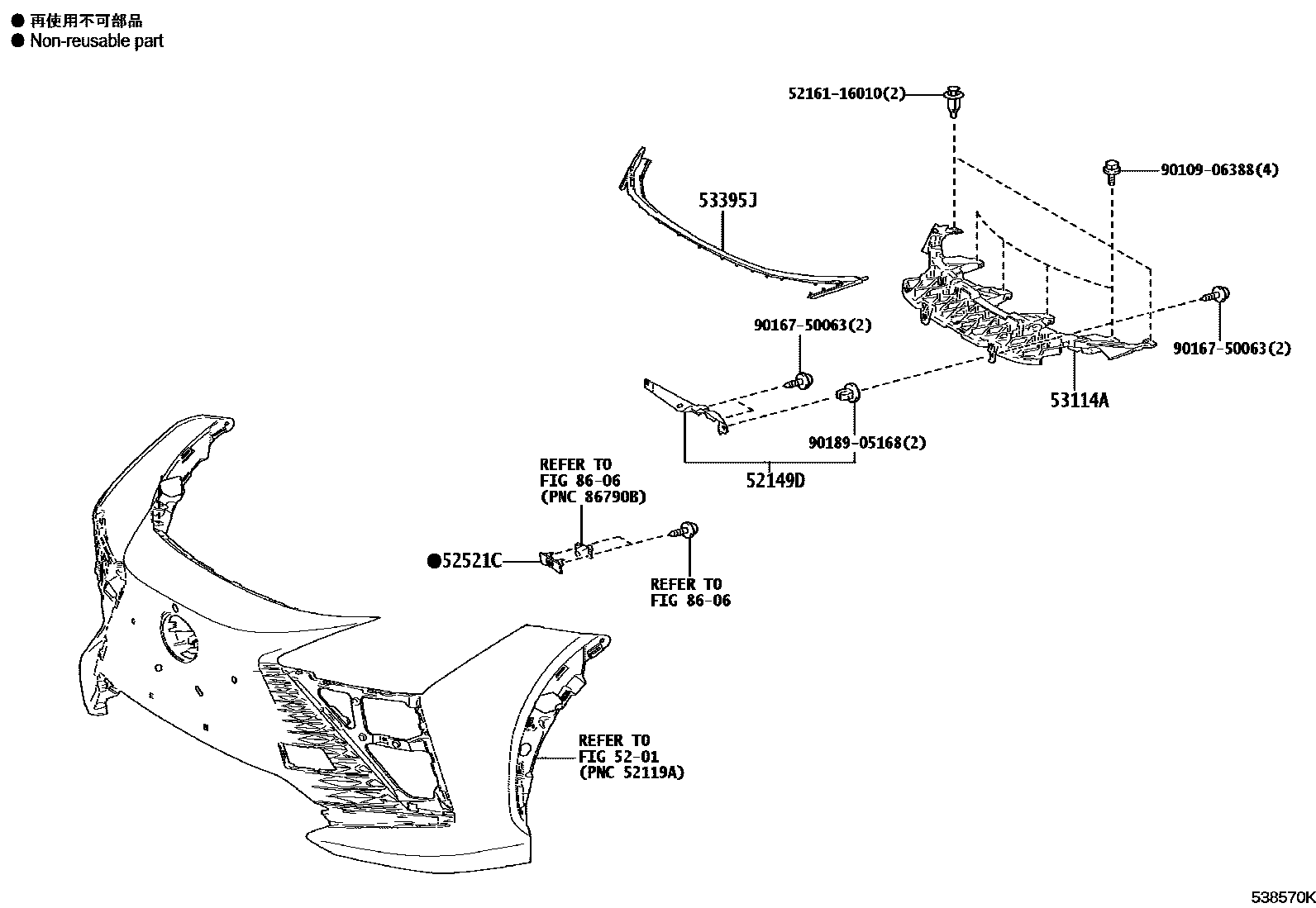

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52149DBRACKET, FRONT BUMPER, INNER

main52149-46010iXEBM1#202311

52521CRETAINER, FRONT BUMPER, UPPER

main52521-46010-A0iXEBM15202301-202311

SONIC QUARTZ,085

main52521-46010-B0iXEBM15202301-202311

SONIC CHROME,1L1

main52521-46010-B1iXEBM1#202311

SONIC IRIDIUM,1L2

main52521-46010-C0iXEBM15202301-202311

BLACK,2YF ,2YG ,2YH

main52521-46010-C1iXEBM1#202311

GRAPHITE BLACK GF.,223

main52521-46010-E0iXEBM15202301-202311

SONIC COPPER,4Y5

main52521-46010-J0iXEBM1#202311

AETHER ME.,8Z2

53114AGRILLE, RADIATOR, INNER

main53114-46010iXEBM1#202311

53395JSEAL, HOOD TO FRONT END PANEL

main53395-46030iXEBM1#202311

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906388

main90109-06388

9016750063

main90167-50063

9018905168

main90189-05168

10 parts on this diagram · 1 diagram in section
