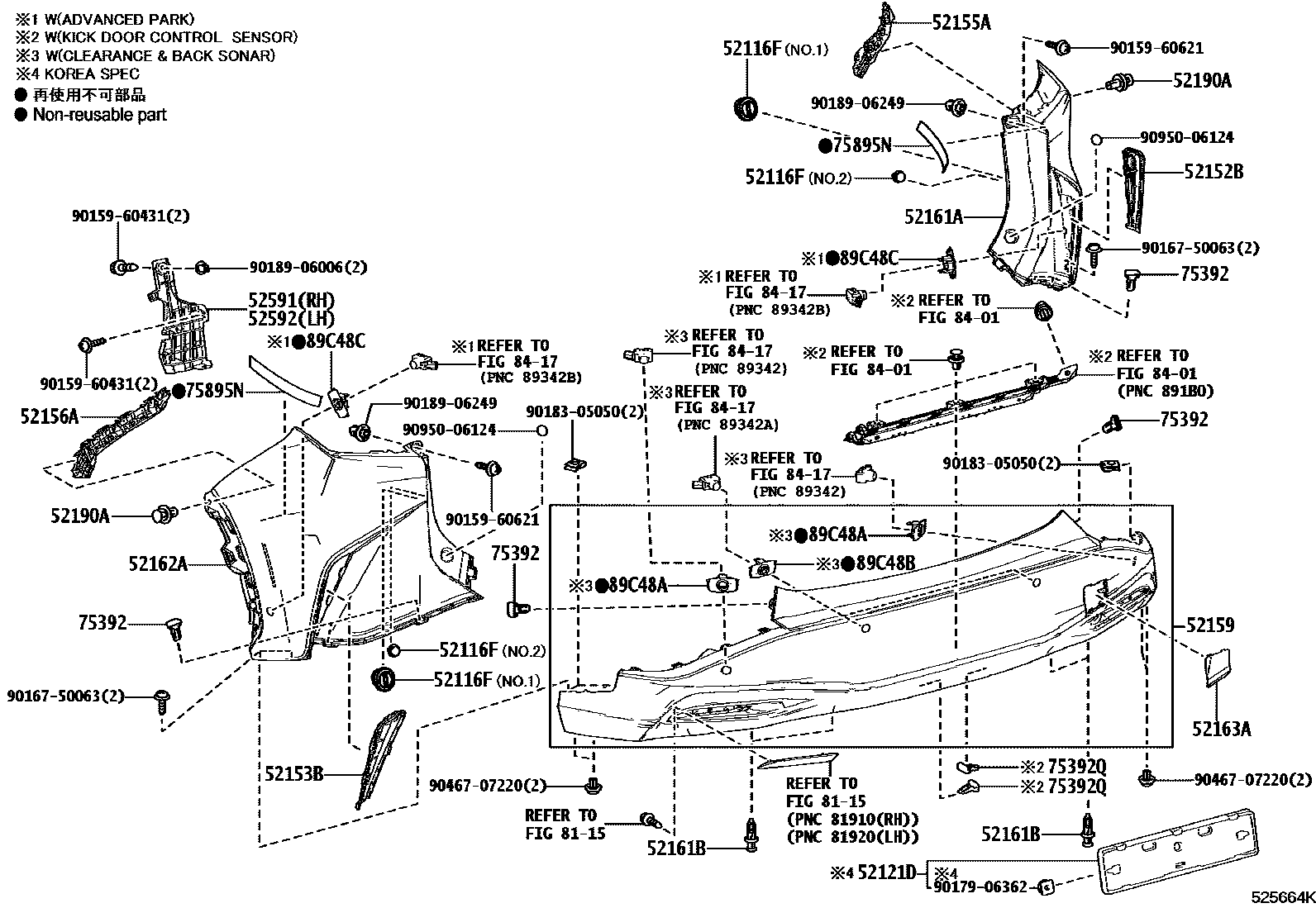

REAR BUMPER & BUMPER STAY
52116FRETAINER, REAR BUMPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
52121DBRACKET, REAR LICENSE PLATE MOUNTING
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
BASE PACKAGE&AUTO & EASY CLOSER DOOR-WITHOUT,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
52161APIECE, REAR BUMPER, RH
AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
52161BPIECE, REAR BUMPER
sub52161-0K040
52162APIECE, REAR BUMPER, LH
AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
52163APLATE, REAR BUMPER, RH
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
52190ACLIP
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75895NTAPE, MOULDING, NO.1
8115
8401
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ADVANCED PARK-WITH,SONIC QUARTZ,085,RH
ADVANCED PARK-WITH,SONIC CHROME,1L1 ,2YH,RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SONIC IRIDIUM,1L2,RH
ADVANCED PARK-WITH,GRAPHITE BLACK GF.,223,RH
ADVANCED PARK-WITH,SONIC COPPER,2YF ,4Y5,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),AETHER ME.,2YG ,8Z2,RH
AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING&ADVANCED PARK-WITH,SONIC QUARTZ,085,LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ADVANCED PARK-WITH,SONIC CHROME,1L1,2YH,LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ADVANCED PARK-WITH,SONIC IRIDIUM,1L2,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),GRAPHITE BLACK GF.,223,LH
ADVANCED PARK-WITH,SONIC COPPER,2YF ,4Y5,LH
AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),AETHER ME.,2YG ,8Z2,LH
9015960431
main90159-60431
9015960621
main90159-60621
9016750063
main90167-50063
9017906362
main90179-06362
9018305050
main90183-05050
9018906006
main90189-06006
9018906249
main90189-06249
9046707220
main90467-07220
9095006124
main90950-06124
32 parts on this diagram · 2 diagrams in section
