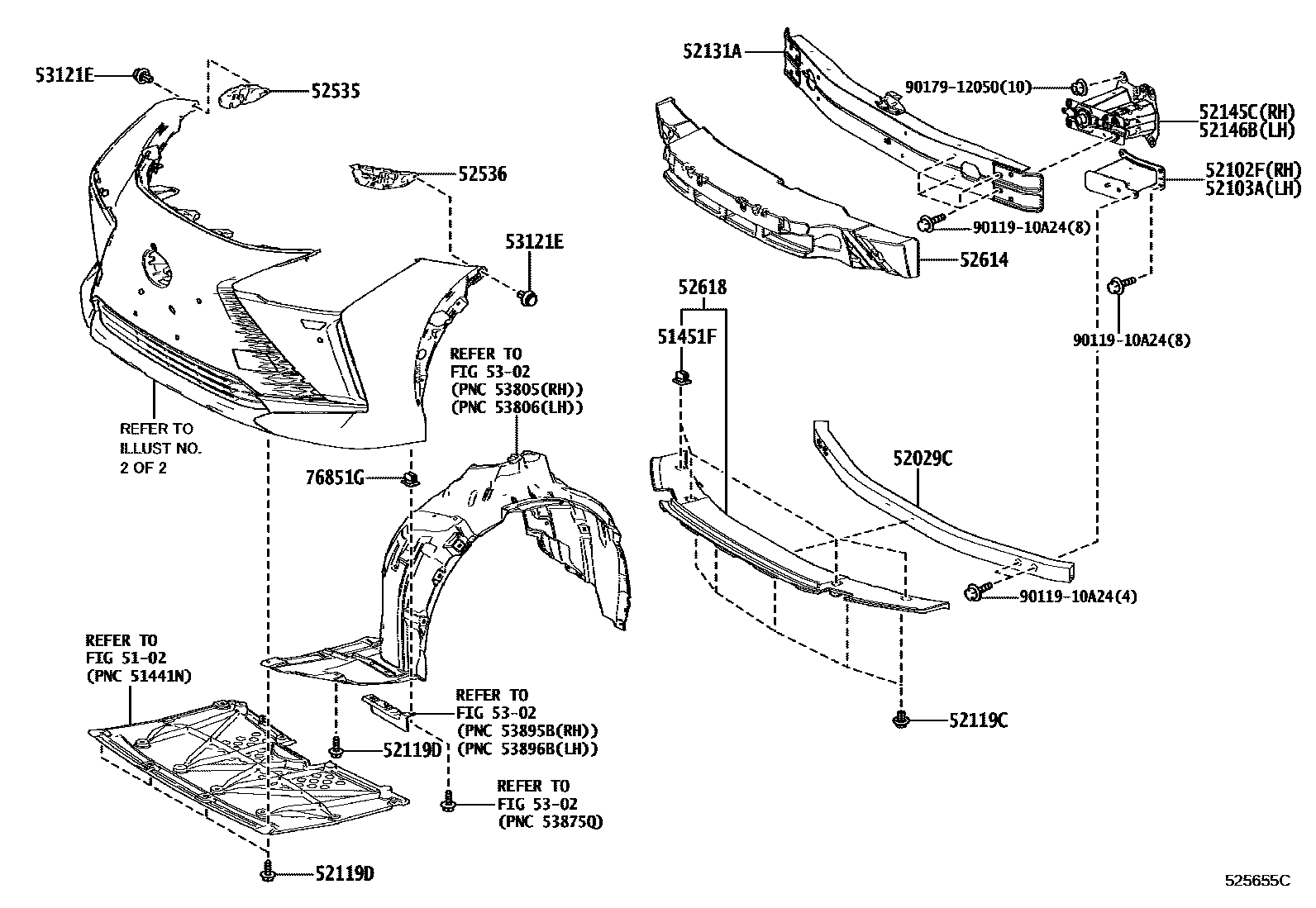

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451FGROMMET, NO.1

main90189-06237iXEBM15202301-202311

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-46020iXEBM1#202301-202311

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0R100iXEBM1#202301-202311

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0R100iXEBM1#202301-202311

52119CCLIP, FRONT BUMPER COVER

main90467-07220iXEBM1#202301-202311

52119DSCREW, NO.1

main90159-60477iXEBM1#202301-202311

52131AREINFORCEMENT, FRONT BUMPER

main52021-46030iXEBM1#202311

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main52021-46030iXEBM1#202311

DEST.PACKAGE (EXC/ERP.)-CANADA SPEC

main52021-46030iXEBM15202301-202311

CANADA SPEC

main52021-46030iXEBM15202301-202311

KOREA SPEC

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main57107-42040iXEBM1#202301-202311

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main57108-42040iXEBM1#202301-202311

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-46010iXEBM1#202311

NO PAINT REQ.

main52535-46010iXEBM15202301-202311

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-46010iXEBM1#202311

NO PAINT REQ.

main52536-46010iXEBM15202301-202311

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-46010iXEBM1#202301-202311

52618ABSORBER, FRONT BUMPER, LOWER

main52618-46010iXEBM1#202301-202311

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-07215iXEBM1#202301-202311

76851GGROMMET, SCREW, NO.1

main90189-06237iXEBM1#202301-202311

9011910A24

main90119-10A24

9017912050

main90179-12050

19 parts on this diagram · 2 diagrams in section
