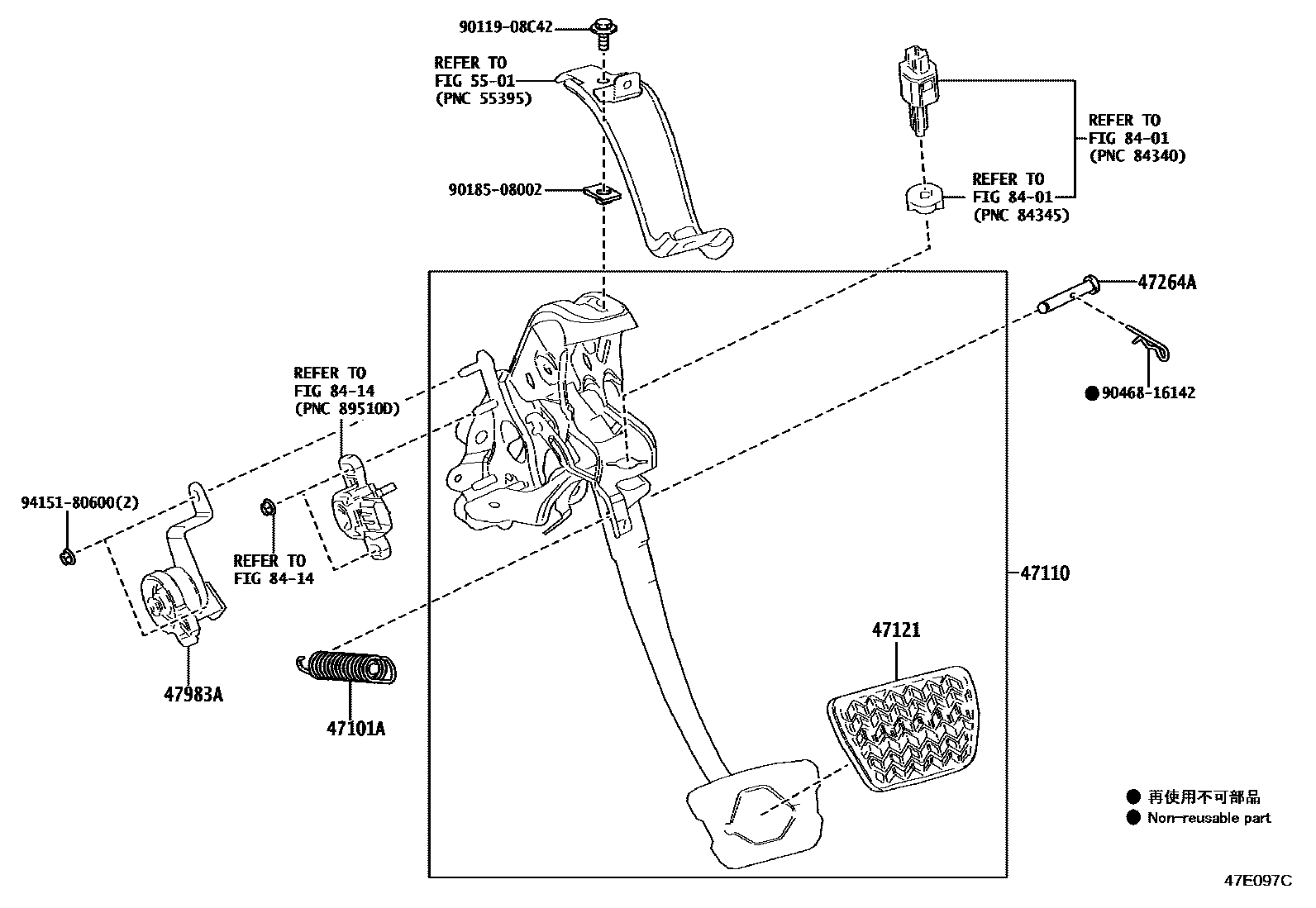

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17005iXEBM1#202301-202311

47110SUPPORT ASSY, BRAKE PEDAL

main47110-46071iXEBM1#202301-202311

47121PAD, BRAKE PEDAL

main47121-62010iXEBM1#202301-202311

47264APIN(FOR PUSH ROD)

main90249-08221iXEBM1#202301-202311

47983ADAMPER, BRAKE TRACTION

main47983-46030iXEBM1#202301-202311

5501

8401

8414

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
