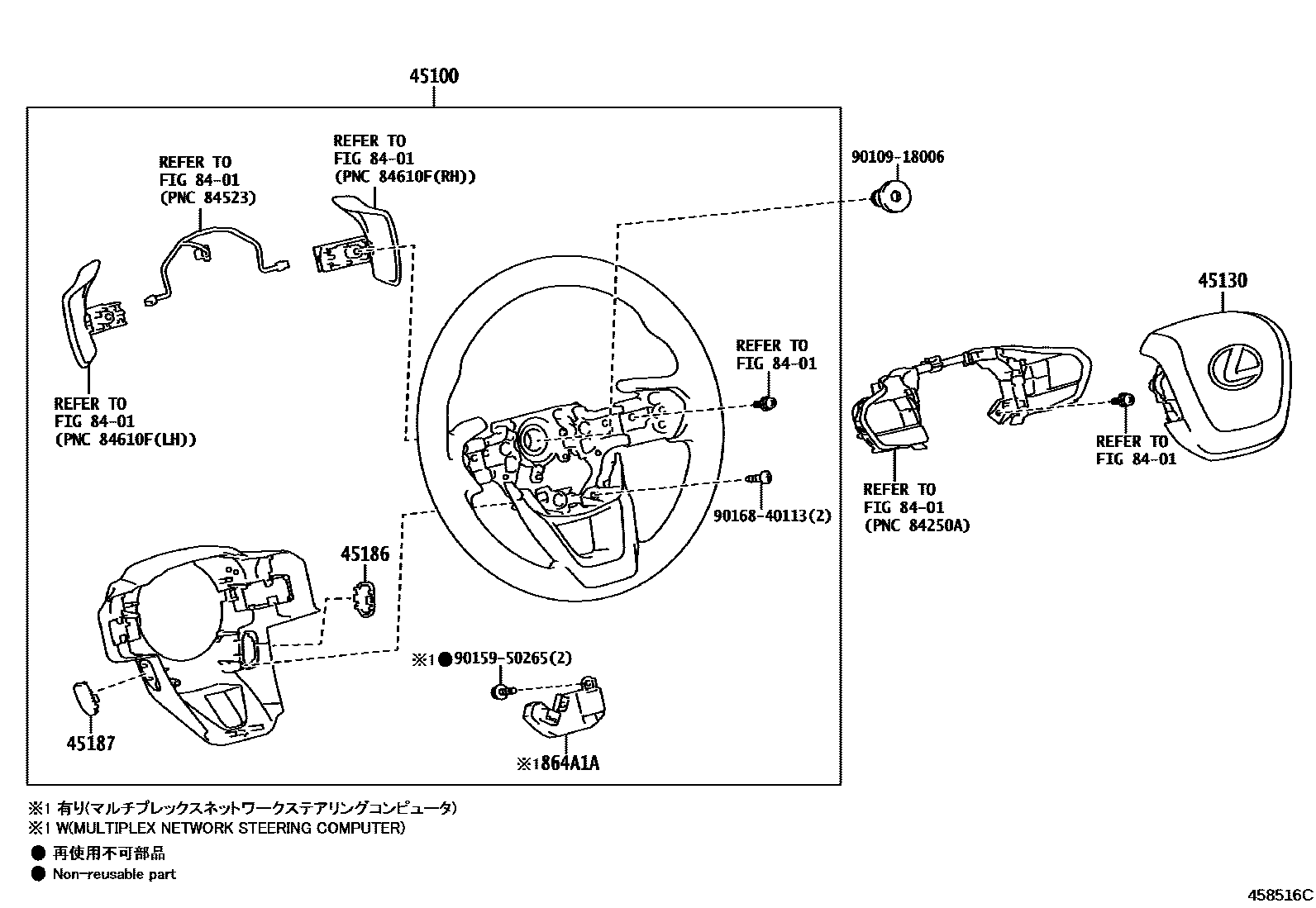

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-46050-C0supersedes 45100-48800-C0i202311

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM1#,4#,8#

main45100-46070-C0i202301-202305

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&STEERING WHEEL-LEATHER&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#

main45100-46071-C0supersedes 45100-48800-C0i202311

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&STEERING WHEEL-LEATHER&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#

main45100-48800-C0i202410

3-SPOKE,LEATHER,DEST.PACKAGE (EXC/ERP.)-CANADA SPEC&PRE-COLLISION SYSTEM-WITH&REAR& REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#; 3-SPOKE,LEATHER,DEST.PACKAGE (EXC/ERP.)-HAWAII SPEC&PRE-COLLISION SYSTEM-WITH&REAR& REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#; 3-SPOKE,LEATHER,DEST.PACKAGE (EXC/ERP.)-KOREA SPEC&PRE-COLLISION SYSTEM-WITH&REAR& REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#; 3-SPOKE,LEATHER,DEST.PACKAGE (EXC/ERP.)-PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITH&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#

main45100-48820-C0supersedes 45100-48800-C0i202301-202305

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#

main45100-48821-C0supersedes 45100-48800-C0i202311

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM1#,4#,8#

45130BUTTON ASSY, HORN

main45130-46050-C0i202311

BLACK,TRIM1#,4#,8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-78010-C0i202311

BLACK,TRIM1#,4#,8#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-78010-C0i202311

BLACK,TRIM1#,4#,8#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78020i202410

DEST.PACKAGE (EXC/ERP.)-CANADA SPEC&PRE-COLLISION SYSTEM-WITH&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); DEST.PACKAGE (EXC/ERP.)-HAWAII SPEC&PRE-COLLISION SYSTEM-WITH&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); DEST.PACKAGE (EXC/ERP.)-KOREA SPEC&PRE-COLLISION SYSTEM-WITH&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST); DEST.PACKAGE (EXC/ERP.)-PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITH&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)

main864A1-78030i202301-202311

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&STEERING WHEEL-LEATHER&REAR & REAR SIDEMONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST)

main864A1-78040i202311-202410

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC& SAFE EXIT ASSIST)

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
