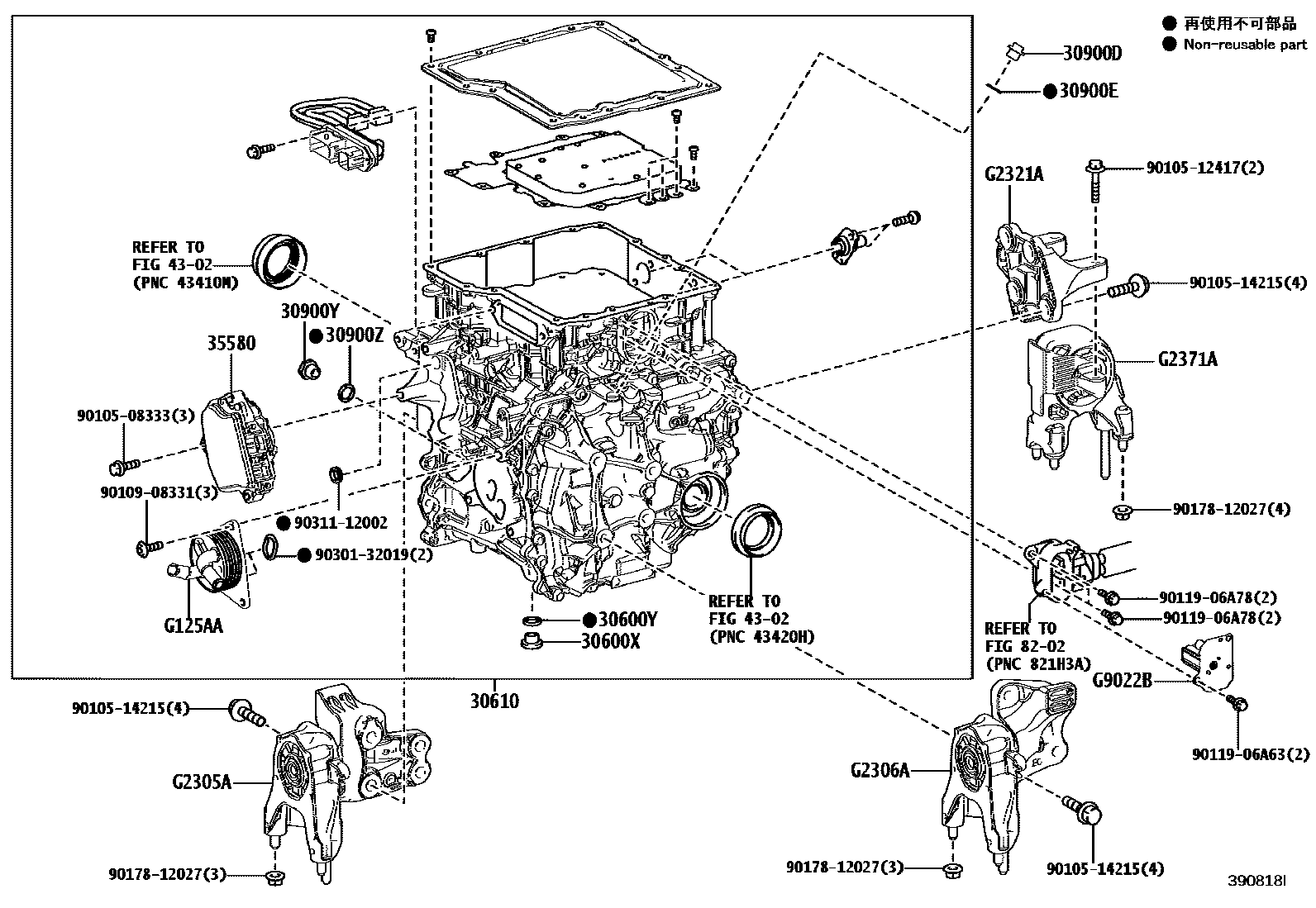

Toyota 564410 — TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600XPLUG, DRAIN(BEV)
30600YGASKET, DRAIN PLUG(BEV)
30610TRANSAXLE ASSY, W/MOTOR & INVERTER
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900YPLUG, FILLER(BEV)
30900ZGASKET, FILLER PLUG(BEV)
4302FRONT DRIVE SHAFT
8202WIRING & CLAMP
G125AACOOLER, MOTOR COOLING
G2305AINSULATOR SUB-ASSY, MOTOR MOUNTING, RH
G2306AINSULATOR SUB-ASSY, MOTOR MOUNTING, LH
G2321ABRACKET, MOTOR MOUNTING, REAR
G2371AINSULATOR, MOTOR MOUNTING, REAR
G9022BCOVER SUB-ASSY, INVERTER, UPPER
9010508333
9010512417
9010514215
9010908331
9011906A63
9011906A78
9017812027
9030132019
9031112002
25 parts on this diagram · 5 diagrams in section
TRANSAXLE ASSY(HEV OR BEV OR FCEV) for Toyota 564410
This section contains 62 genuine Toyota parts for the TRANSAXLE ASSY(HEV OR BEV OR FCEV) system of the Toyota 564410. Key components include: PLUG, DRAIN(BEV), GASKET, DRAIN PLUG(BEV), TRANSAXLE ASSY, W/MOTOR & INVERTER, TRANSAXLE ASSY, REAR W/MOTOR & INVERTER, PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE).
