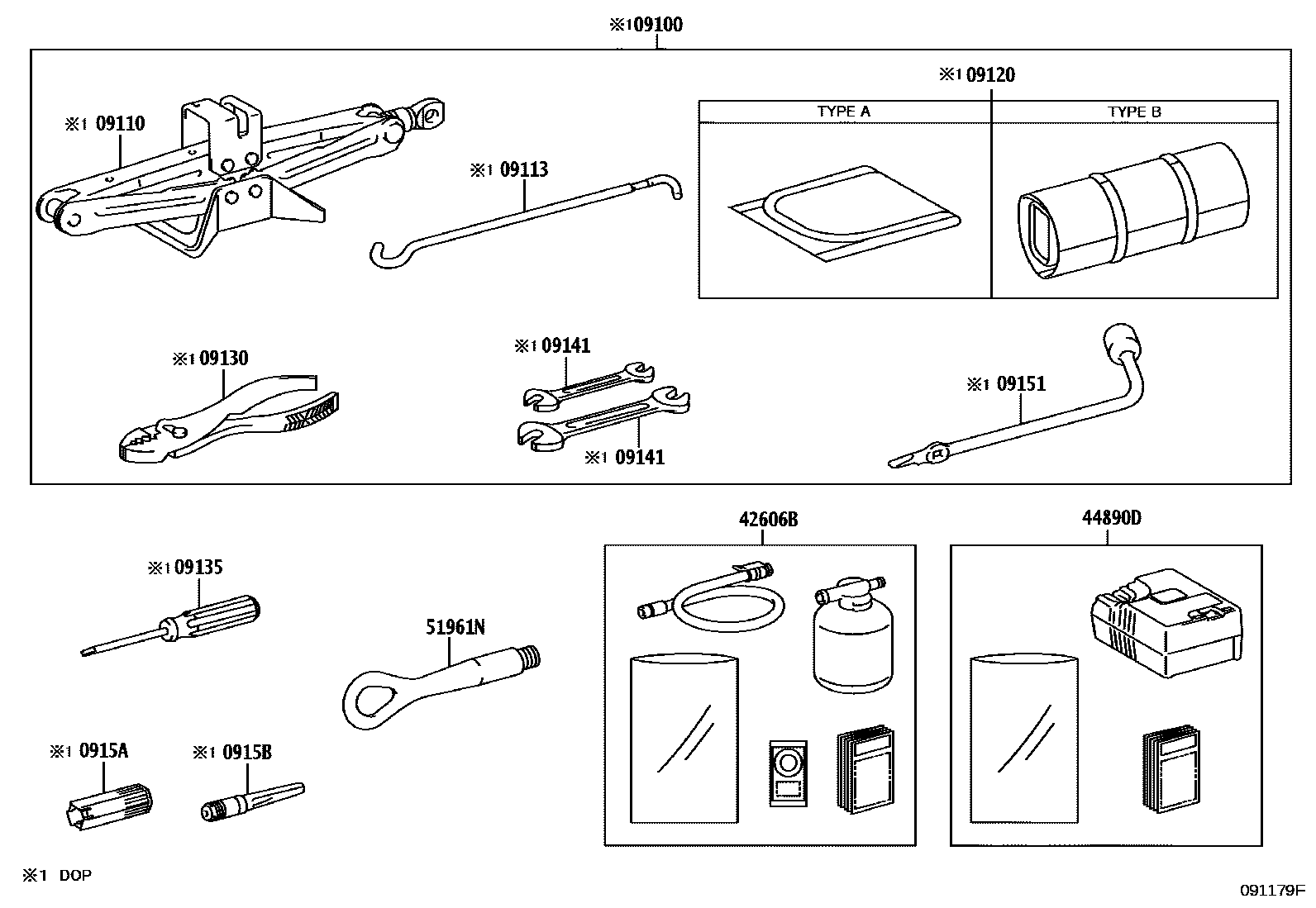

STANDARD TOOL

09100TOOL SET, STANDARD

main09100-46040i202301-202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

09110JACK ASSY

main09111-42070i202301-202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

09113HANDLE, JACK

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

09120BAG, TOOL

TOOL(DOP)-SPANNER X 2,PLIER,TOOL BAG,DRIVER,TYPE A:REFER ILLUST.

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP,TYPE B:REFER ILLUST.

09130PLIERS

main09130-50040i202301-202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP; TOOL(DOP)-SPANNER X 2,PLIER,TOOL BAG

09135DRIVER, SCREW

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP; TOOL(DOP)-SPANNER X 2,PLIER,TOOL BAG,DRIVER

09141SPANNER

8 X 10,JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP; 8 X 10,TOOL(DOP)-SPANNER X 2,PLIER,TOOL BAG,DRIVER

12 X 14,JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP; 12 X 14,TOOL(DOP)-SPANNER X 2,PLIER,TOOL BAG,DRIVER

09151WRENCH, HUB BOLT BOX

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010i202301-202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

0915BPIN, WHEEL GUIDE

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080supersedes 42606-42100i202407

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

main42606-46040supersedes 42606-42100i202311-202407

DEST.PACKAGE (EXC/ERP.)-KOREA SPEC

44890DCOMPRESSOR ASSY, AIR

main44890-42050supersedes 44890-42060i202301-202311

KOREA SPEC

51961NHOOK, TRANSPORT

13 parts on this diagram · 1 diagram in section
