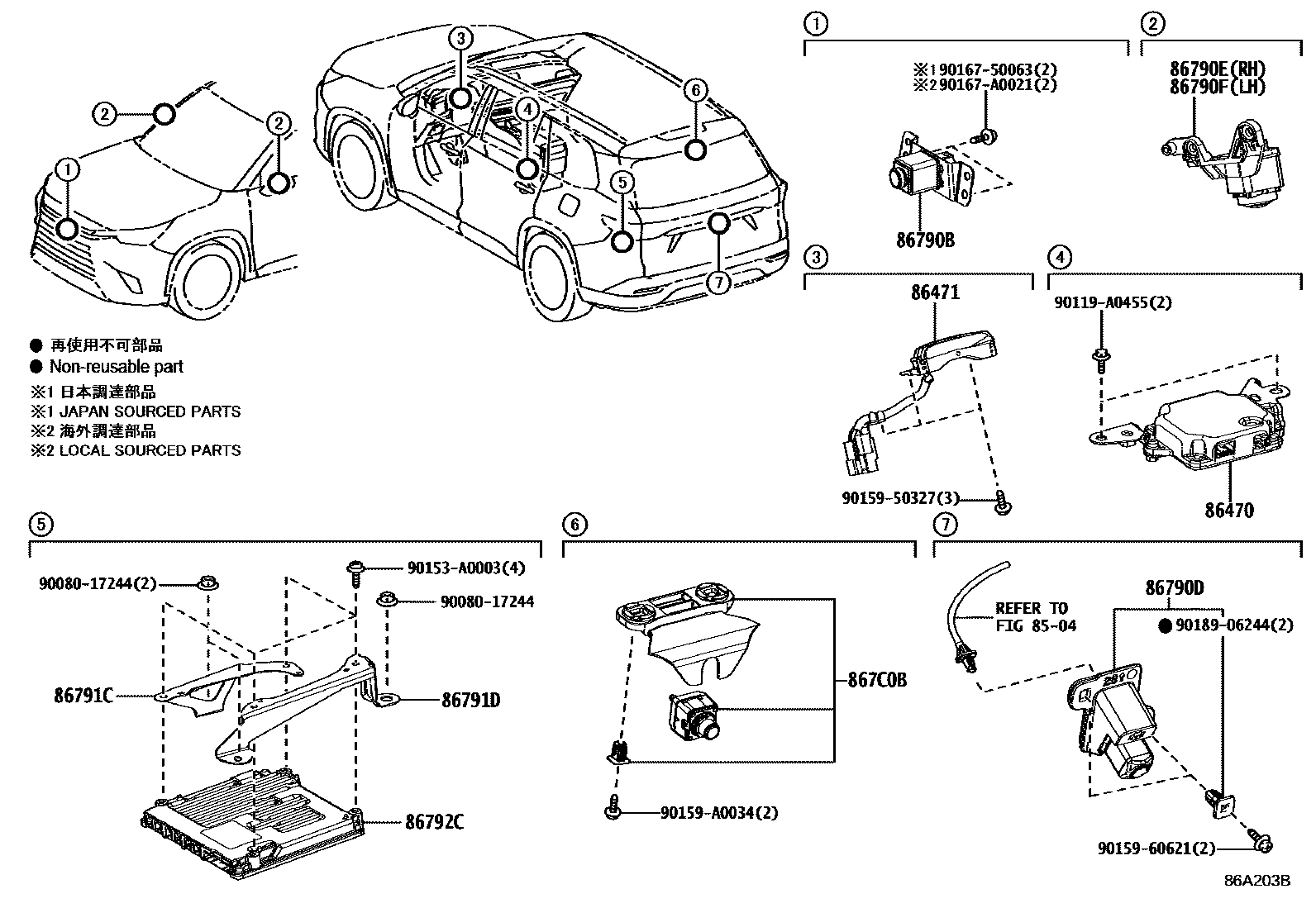

CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-48020i202309-202509

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86471CAMERA, DRIVER MONITOR

main86471-48010i202309-202509

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E640i202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790DCAMERA ASSY, TELEVISION, RR

main867B0-0E270supersedes 867B0-0E261i202309

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)

main86790-0E490i202309

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E510i202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E500i202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-0E110i202309

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-0E120i202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86792CCOMPUTER, PARKING ASSIST

main86792-48880i202309-202509

PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-0E070i202309-202509

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

9008017244

main90080-17244

90119A0455

main90119-A0455

90153A0003

main90153-A0003

9015950327

main90159-50327

9015960621

main90159-60621

90159A0034

main90159-A0034

9016750063

main90167-50063

90167A0021

main90167-A0021

9018906244

main90189-06244

20 parts on this diagram · 1 diagram in section
