Toyota LEXUS TX SERIES — ANTENNA

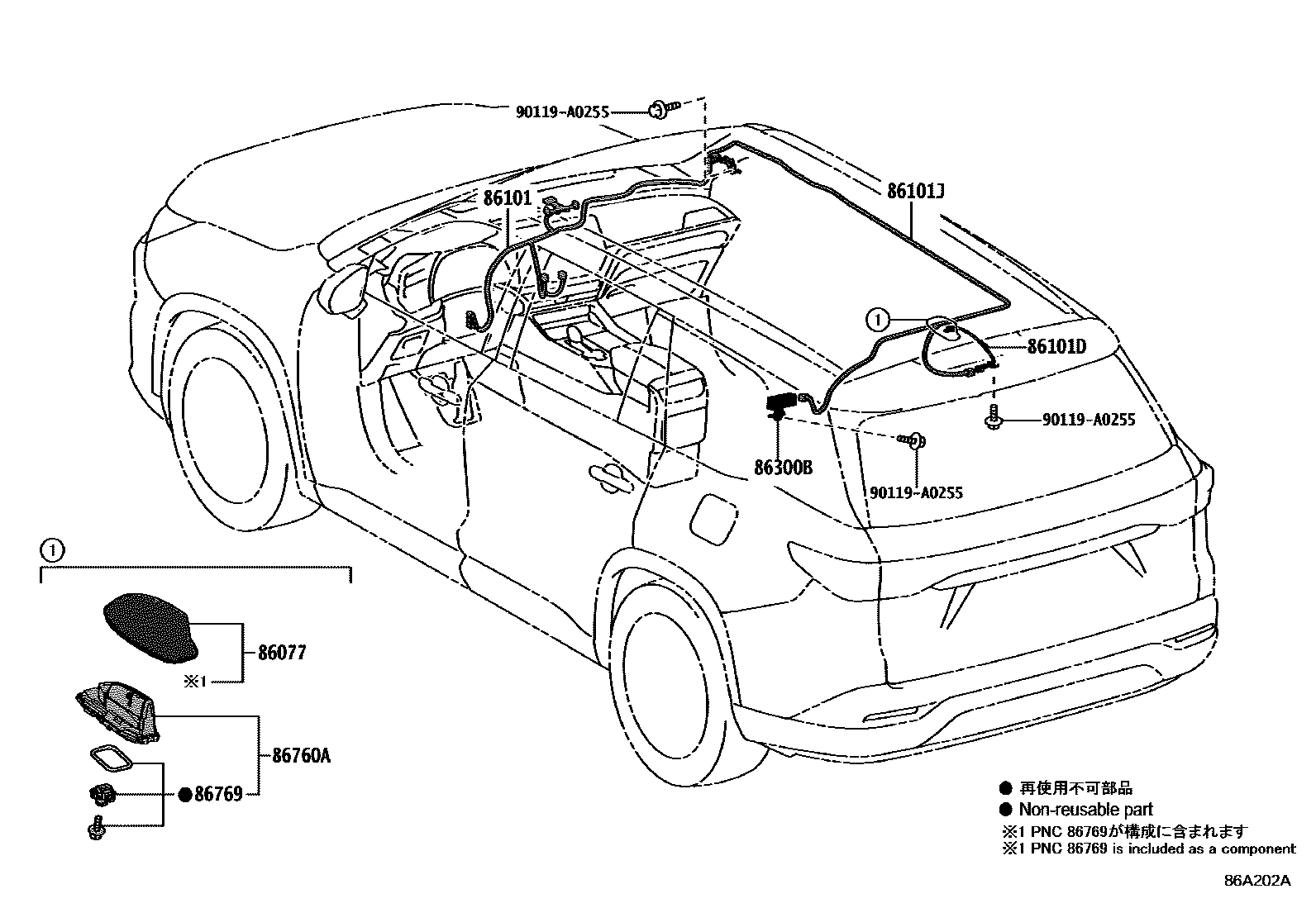

Parts diagram
86077COVER KIT, ANTENNA
86077-48060
86101CORD SUB-ASSY, ANTENNA
86101-0EF30
86101-0EG40
86101-0EV30
86101-0EV40
86101-0EW10
86101-0EW20
86101-0EW50
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86300BANTENNA ASSY, AMPLIFIER, NO.1
86760AANTENNA ASSY, TELEPHONE
86769HOUSING, ROOF ANTENNA
86769-04010
90119A0255
90119-A0255

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota LEXUS TX SERIES

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS TX SERIES. Key components include: COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1.
