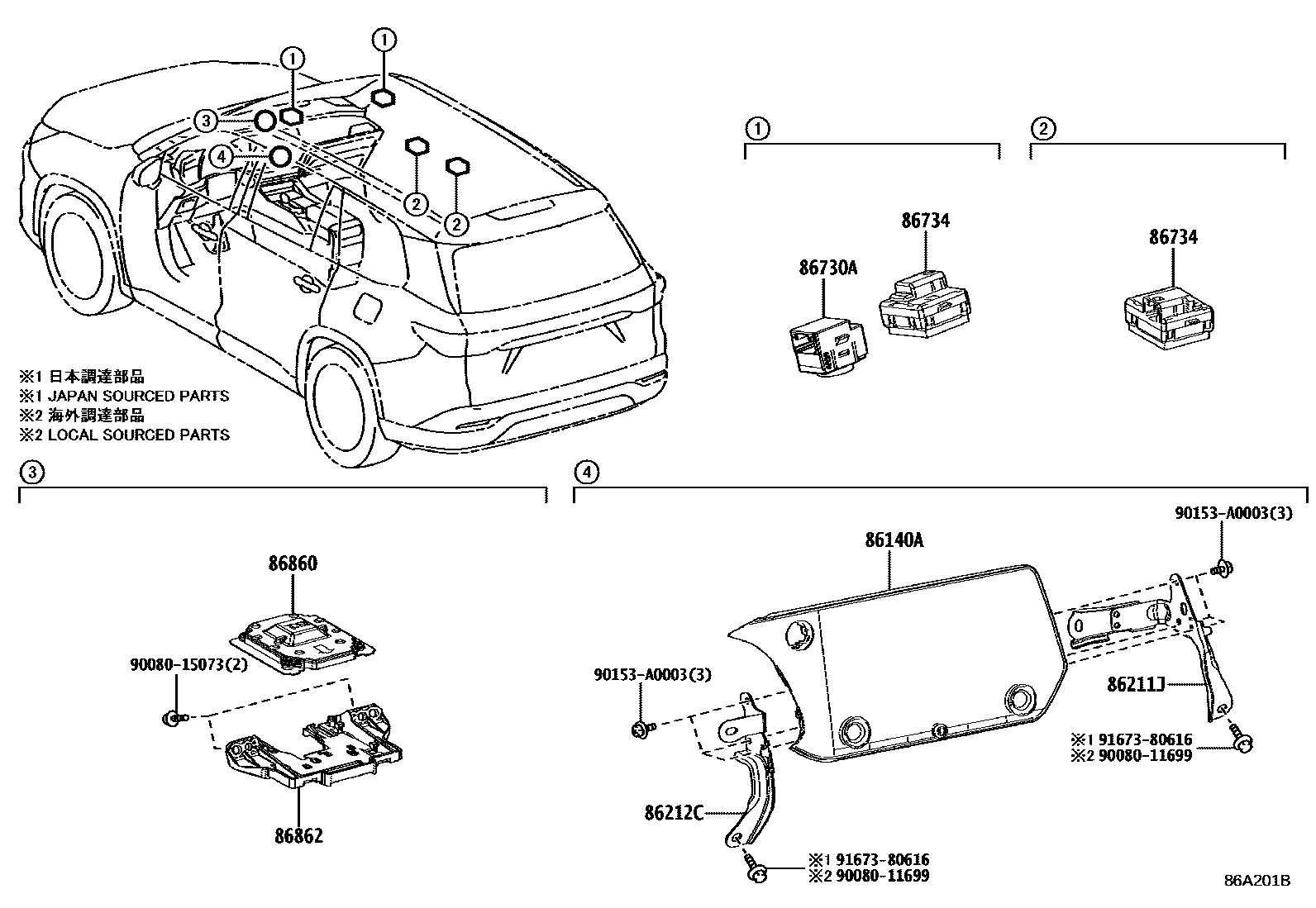

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

PANASONIC,CANADA SPEC; PANASONIC,HAWAII SPEC; PANASONIC,MEXICO SPEC; PANASONIC,PUERTO RICO SPEC

86211JBRACKET, RADIO RECEIVER, NO.1

86212CBRACKET, RADIO RECEIVER, NO.2

86730AMICROPHONE ASSY, TELEPHONE

main86730-0C010×2i202309

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-08010×4i202309

86860ANTENNA ASSY, NAVIGATION

86862BRACKET, NAVIGATION ANTENNA

9008011699

9008015073

90153A0003

9167380616

11 parts on this diagram · 1 diagram in section
