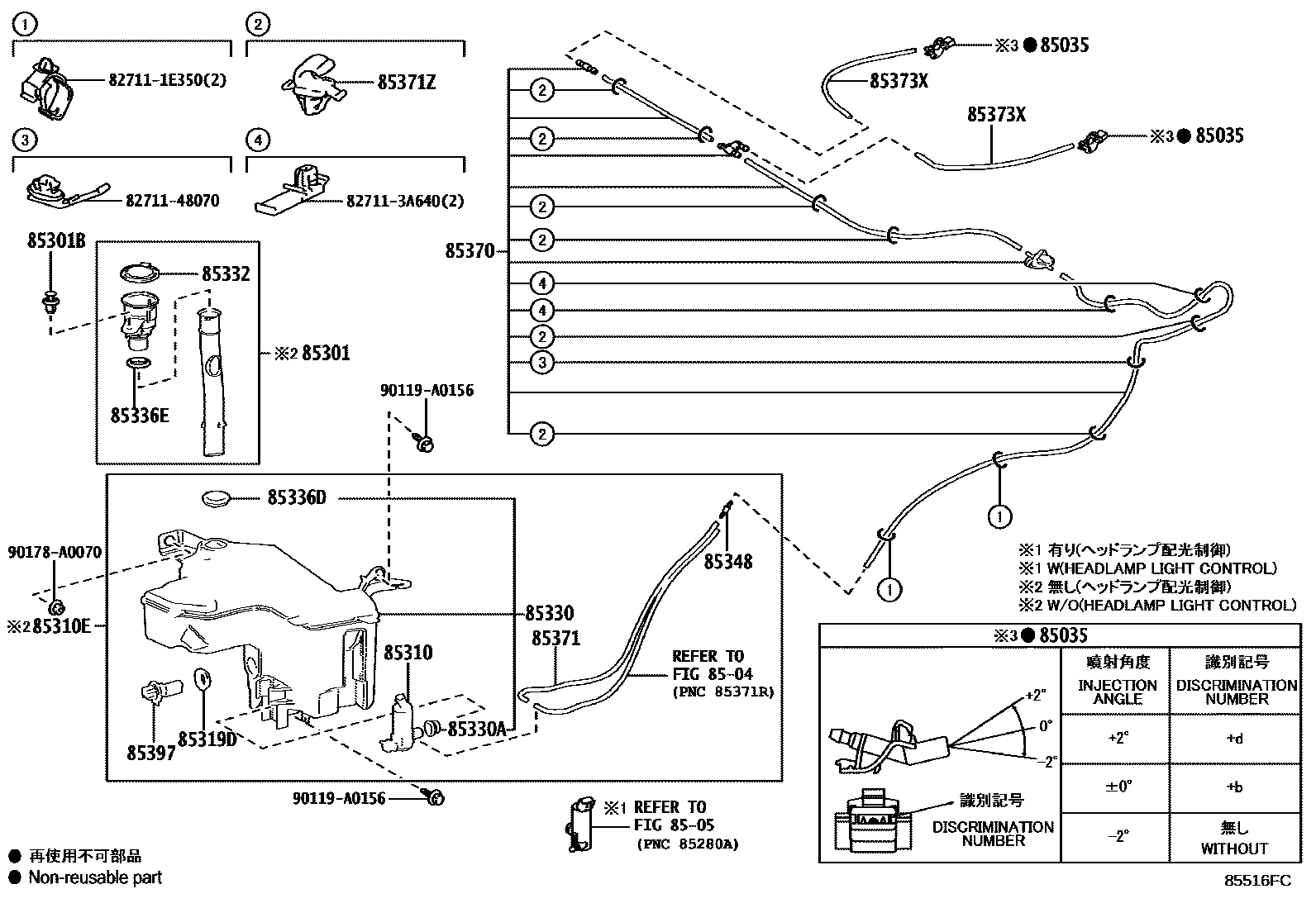

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202309

ANGLE 0

main85381-30230×2i202309

ANGLE -2

main85381-30240×2i202309

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-0E080i202309

85301BCLIP, WASHER

main90467-07215i202309

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0A020i202309

85310EJAR & PUMP ASSY, WASHER

main85310-0E280i202412

85319DPACKING, FRONT WASHER

main85319-AA020i202309

85330JAR ASSY, WINDSHIELD WASHER

main85315-0E280i202309

main85315-0E290i202309

HEADLAMP LIGHT CONTROL-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202309

85332CAP, WINDSHIELD WASHER JAR

main85386-60050i202309

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202309

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202412

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i202309

85370HOSE ASSY, WINDSHIELD WASHER

main85370-0E810i202309

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33092i202309

L=480; L=480,HEADLAMP LIGHT CONTROL-WITH

85371ZCLAMP, WASHER HOSE

main85371-12040×6i202309

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main90068-33017×2i202309

L=1250(*H,L=320)

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202309

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48070

90119A0156

main90119-A0156

90178A0070

main90178-A0070
