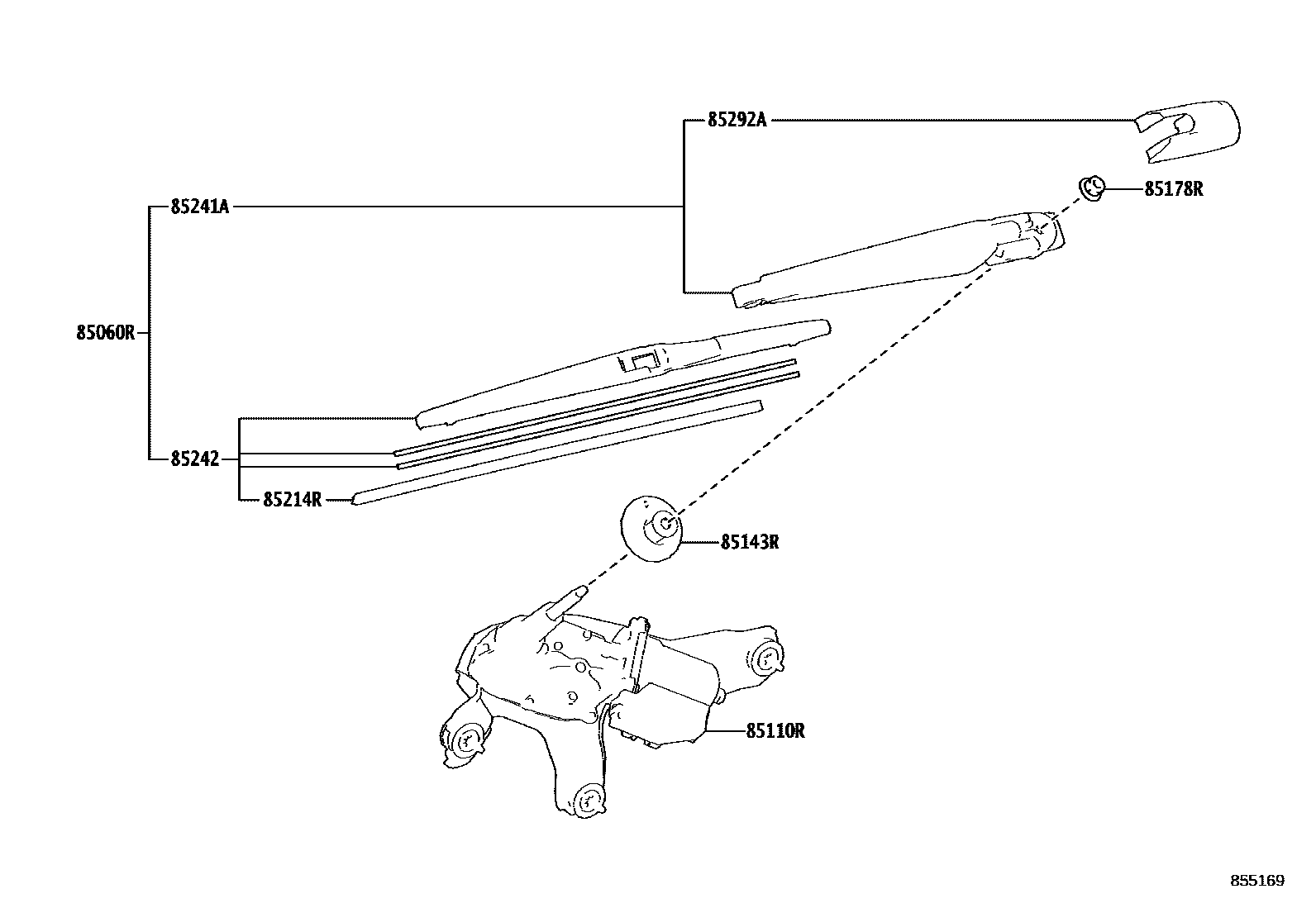

REAR WIPER

85060RARM AND BLADE ASSY, REAR WIPER

main85240-0R050iTAUH15;GYU15,TAUA1#..G,M,N202309

85110RMOTOR ASSY, REAR WIPER

main85130-0E190iTAUH15;GYU15,TAUA1#..G,M,N202309

85143RGROMMET, REAR WIPER MOTOR

main85143-0R010iTAUH15;GYU15,TAUA1#..G,M,N202309

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-A0012iTAUH15;GYU15,TAUA1#..G,M,N202309

85214RRUBBER, REAR WIPER

main85214-0R170iTAUH15;GYU15,TAUA1#..G,M,N202309

85241AARM, REAR WIPER

main85241-0R060iTAUH15;GYU15,TAUA1#..G,M,N202309

85242BLADE, RR WIPER

main85242-0R070iTAUH15;GYU15,TAUA1#..G,M,N202309

85292ACAP, REAR WIPER ARM HEAD

main85292-02060iTAUH15;GYU15,TAUA1#..G,M,N202309

8 parts on this diagram · 1 diagram in section
