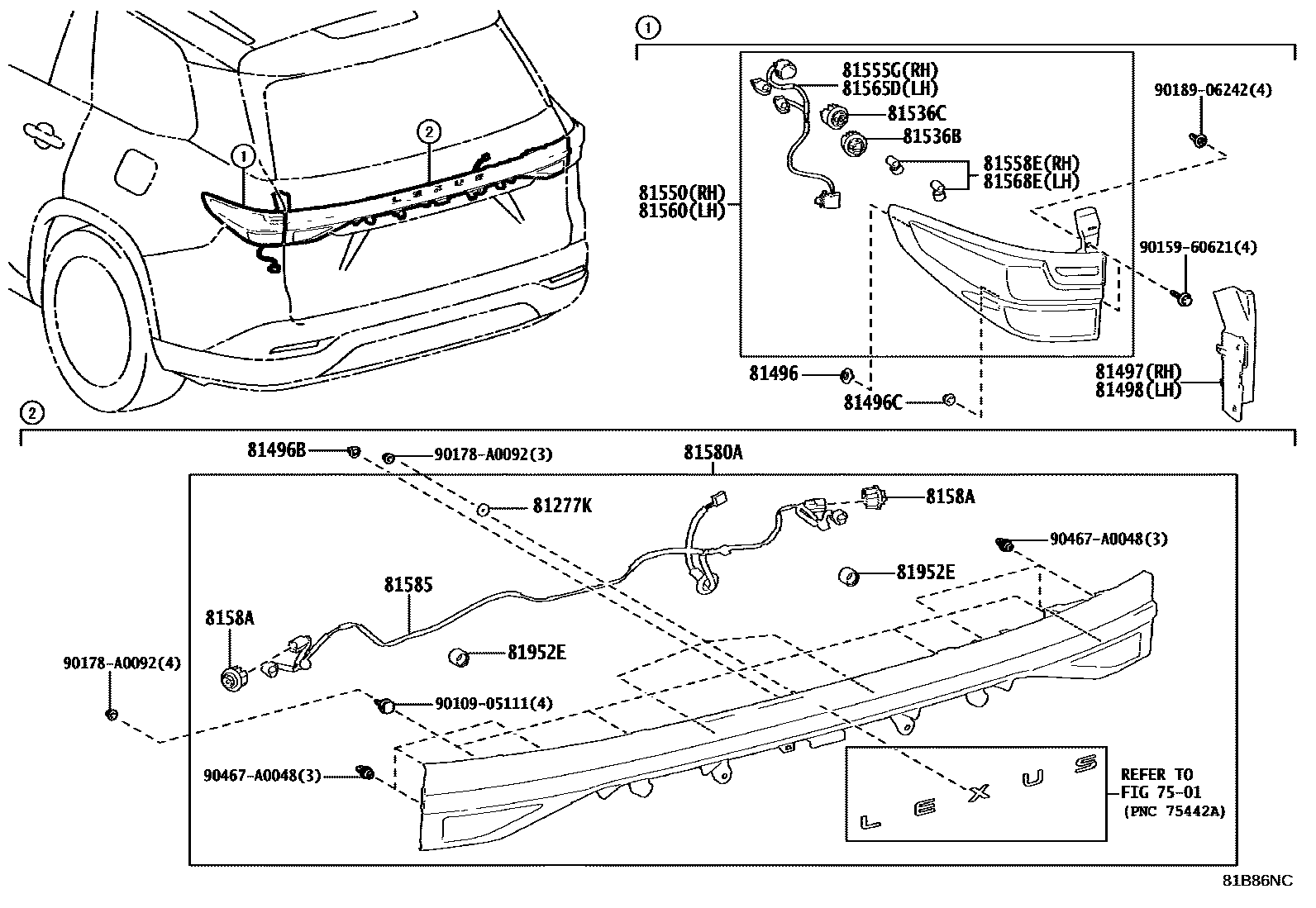

REAR COMBINATION LAMP

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240×3iTAUH15;GYU15,TAUA1#..G,M,N202309

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81496BGUIDE, REAR LAMP

main81496-78010iTAUH15;GYU15,TAUA1#..G,M,N202309

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

81536BLED, REAR TURN SIGNAL LAMP

main81965-48030×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81536CLED, TAIL & STOP LAMP

main81965-70010×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E350iTAUH15;GYU15,TAUA1#..G,M,N202309

81555GCORD, REAR COMBINATION LAMP, RH

main81555-0E350iTAUH15;GYU15,TAUA1#..G,M,N202309

81558ECOVER, REAR COMBINATION LAMP, RH

main90075-15513×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E350iTAUH15;GYU15,TAUA1#..G,M,N202309

81565DCORD, REAR COMBINATION LAMP, LH

main81555-0E350iTAUH15;GYU15,TAUA1#..G,M,N202309

81568ECOVER, REAR COMBINATION LAMP, LH

main90075-15513×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81580ALAMP ASSY, REAR

main81580-0E280iTAUH15;GYU15,TAUA1#..G,M,N202309

81585SOCKET & WIRE, REAR LAMP

main81585-0E280iTAUH15;GYU15,TAUA1#..G,M,N202309

8158ALED, REAR LAMP

main81965-0E010×2iTAUH15;GYU15,TAUA1#..G,M,N202309

81952ECOVER, REAR LAMP

main90075-15512×2iTAUH15;GYU15,TAUA1#..G,M,N202309

9010905111

main90109-05111

9015960621

main90159-60621

90178A0092

main90178-A0092

9018906242

main90189-06242

90467A0048

main90467-A0048

24 parts on this diagram · 1 diagram in section
